Large Volume Double Suction Water Pump with Diesel Engine Equipment

Product Description

Large Volume Double Suction Water Pump with Diesel Engine Equipment

Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW80-220	17	4.7	16	1480	1.9	39	1.7	215	181
	66.5	18.5	12.8		2.9	81
	108	30	7.8		3.3	69
TPOW80-220A	16	4.4	13.9		1.6	38		200
	71	17	10.8		2.6	80
	98	27.2	7		2.7	68
TPOW80-220B	15	4.2	11.8		1.3	36		185
	55	15.5	9		1.7	78
	85	23.6	6.2		2.2	66
TPOW80-220C	14.5	4	10		1.2	32		170
	57	14.3	7.6		1.6	74
	72	20	6.1		1.9	62
TPOW80-220	60	16.6	58	2950	24.3	39	3.5	215	181
	134.5	37.4	51		23.1	81
	162	45	46		29.4	69
TPOW80-220A	58	16.1	49		20.4	38		200
	124.2	34.5	43.5		18.4	80
	144	40	39		22.5	68
TPOW80-220B	57	15.8	41		17.6	36.2		185
	113	31.4	36		14.2	78.2
	129.6	36	33		17.6	66.2
TPOW80-220C	55	15.2	35		16.4	32		170
	105	29.2	31		12	74
	126	35	28		15.5	62

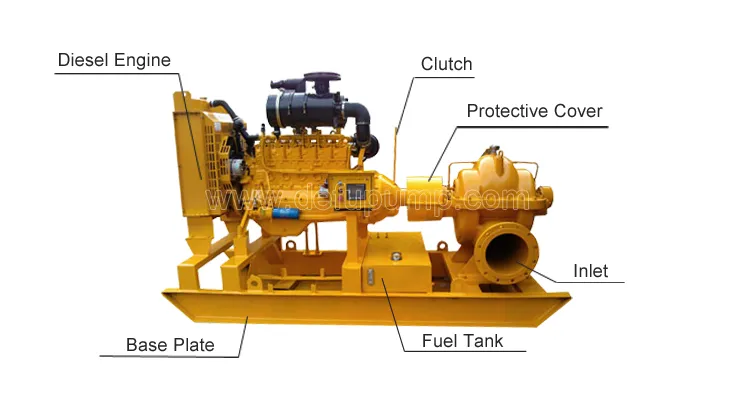

Pump Picture
Large Volume Double Suction Water Pump with Diesel Engine Equipment

The pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water. It has large flow because there are two suction inlets on the impeller.

Package Picture

Large Volume Double Suction Water Pump with Diesel Engine Equipment

Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large soild particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping staton, iron and steel metallurgy, petrochemical refining and other fields.
Large Volume Double Suction Water Pump with Diesel Engine Equipment

The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
