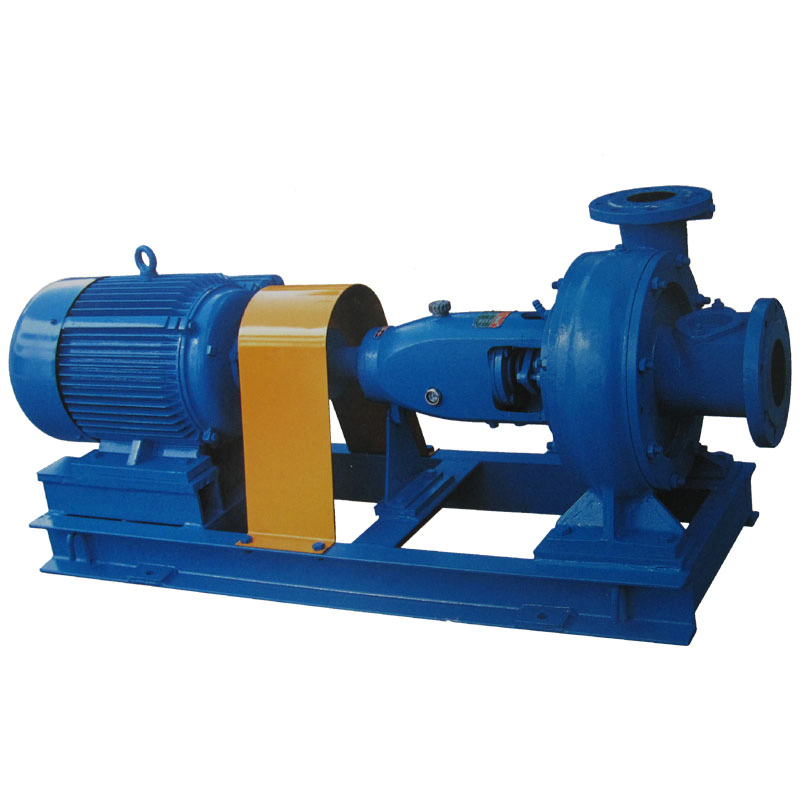

                                    IR Series Condensate Heating Pump
                                    • IR Series Condensate Heating PumpIR Series Condensate Heating Pump

                                    IR Series Condensate Heating Pump

                                    IR series condensate heating pump is single-stage single suction anti-corrosive end suction centrifugal pump, specially apply to deliver the condensate and crystal medium. It's designed acoording to the standard of IS02858 with heating jacket, heating by hot water or steam...Advanced in excellen......

                                    Send Inquiry

                                    Product Description

                                    IR series condensate heating pump is single-stage single suction anti-corrosive end suction centrifugal pump, specially apply to deliver the condensate and crystal medium. It's designed acoording to the standard of IS02858 with heating jacket, heating by hot water or steam...Advanced in excellent performance, high efficiency and back pull out design that easy access to repair. The efficiency is 5% higher than that of the old type. It is energy save and environment protect product.

                                    The medium temperature is between -20° C and 150° C. It is widely application in the industries, such as petroleum, chemistry, metallurgy, synthetic fiber, pharmacy, foodstuff, waste water treatment, etc.

                                    Performance range
                                    Flow: 6.3-520 m3/h
                                    Head: 5-200m
                                    Speed: 1450-3600 r/min
                                    Power: 0.55-315kw
                                    Diameter: DN25-DN300
                                    Max. Working pressure: 1.6 Mpa
                                    Cycle: 50Hz/60Hz

                                    Pump structure
                                    Rotation direction: Clockwise seem from driving side.
                                    Shaft seal: Mechnical seal(single or double) or gland packing seal, cooling by water or medium
                                    Standar material: All wetted parts is SUS304, Other materials is available, such as iron, SUS316, SUS316Lbronze, duplex stainless steel and so on.

                                    IR Series Condensate Heating Pump
