Horizontal Double Suction Split Casing Water Pump for Farm Irrgation

Product Description

Horizontal Double Suction Split Casing Water Pump for Farm Irrgation

Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia (mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia (mm)	Net Pump Weight(kg)
TPOW125-300	100	27.8	32	1480	17.1	51	1.9	301	350
	242.5	67.4	25		19.9	83
	370	102.8	17.1		24.1	71.5
TPOW125-300A	90.3	25.1	26.3		12.9	50		276
	222.3	61.8	21		15.5	82
	290	80.6	15		16.8	70.5
TPOW125-300B	80	22.2	22.1		10.2	47		254
	202.9	56.4	17.5		12.2	79
	250	69.4	13.2		13.3	67.5
TPOW125-300C	70.1	19.5	17.3		7.5	44		232
	179.5	49.9	13.7		8.8	76
	210	58.3	11.9		10.6	64.5
TPOW125-300	230	63.9	113	2950	120	59	7.9	301	350
	479	133.1	100		157.2	83
	558	155	92		181.6	77
TPOW125-300A	182	50.5	93		79.5	58		276
	437.7	121.6	83.5		121.4	82
	504	140	75		135.4	76
TPOW125-300B	128	35.6	80		50.7	55		254
	400.8	111.3	70		96.7	79
	468	130	63		110	73
TPOW125-300C	80.5	23.6	63		26.6	52		232
	355.2	98.7	55		70	76
	414	115	48		77.3	70

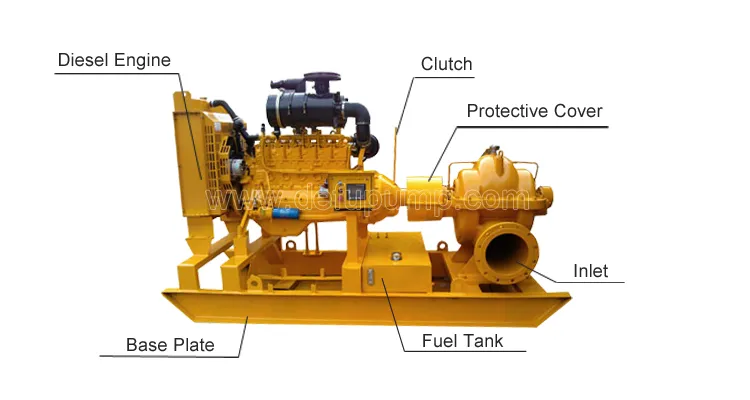

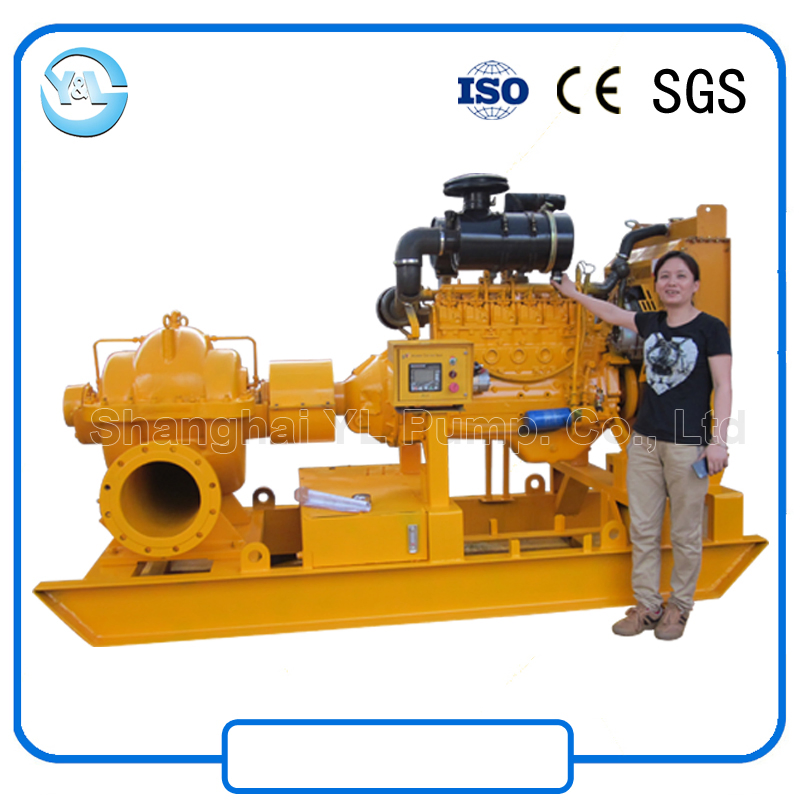

Pump Picture
Horizontal Double Suction Split Casing Water Pump for Farm Irrgation

The pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water. It has large flow because there are two suction inlets on the impeller.

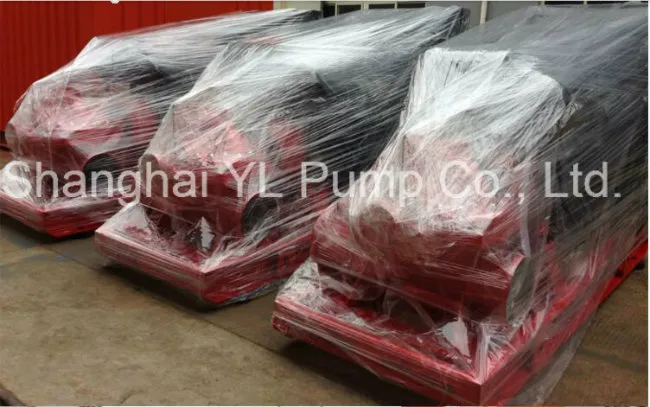

Package Picture
Horizontal Double Suction Split Casing Water Pump for Farm Irrgation

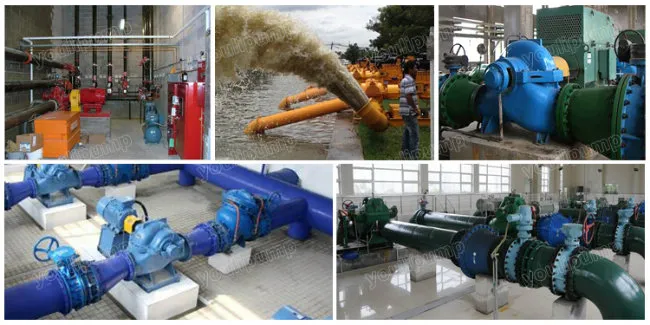

Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large soild particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping staton, iron and steel metallurgy, petrochemical refining and other fields.
Horizontal Double Suction Split Casing Water Pump for Farm Irrgation

The Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
