Product Description

Highly Wearable A07 Mineral Processing Diesel Engine 30 HP with Sand & Mud Pump

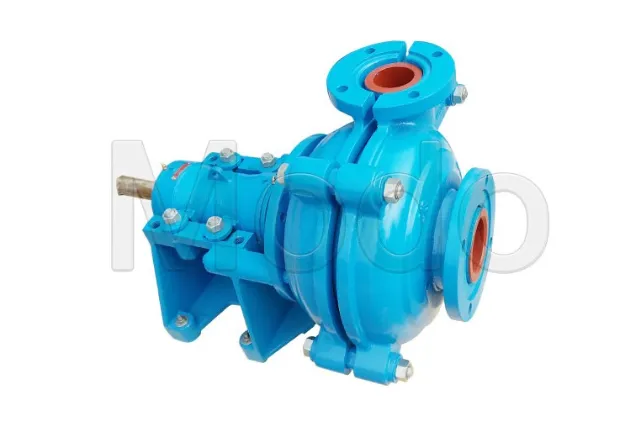

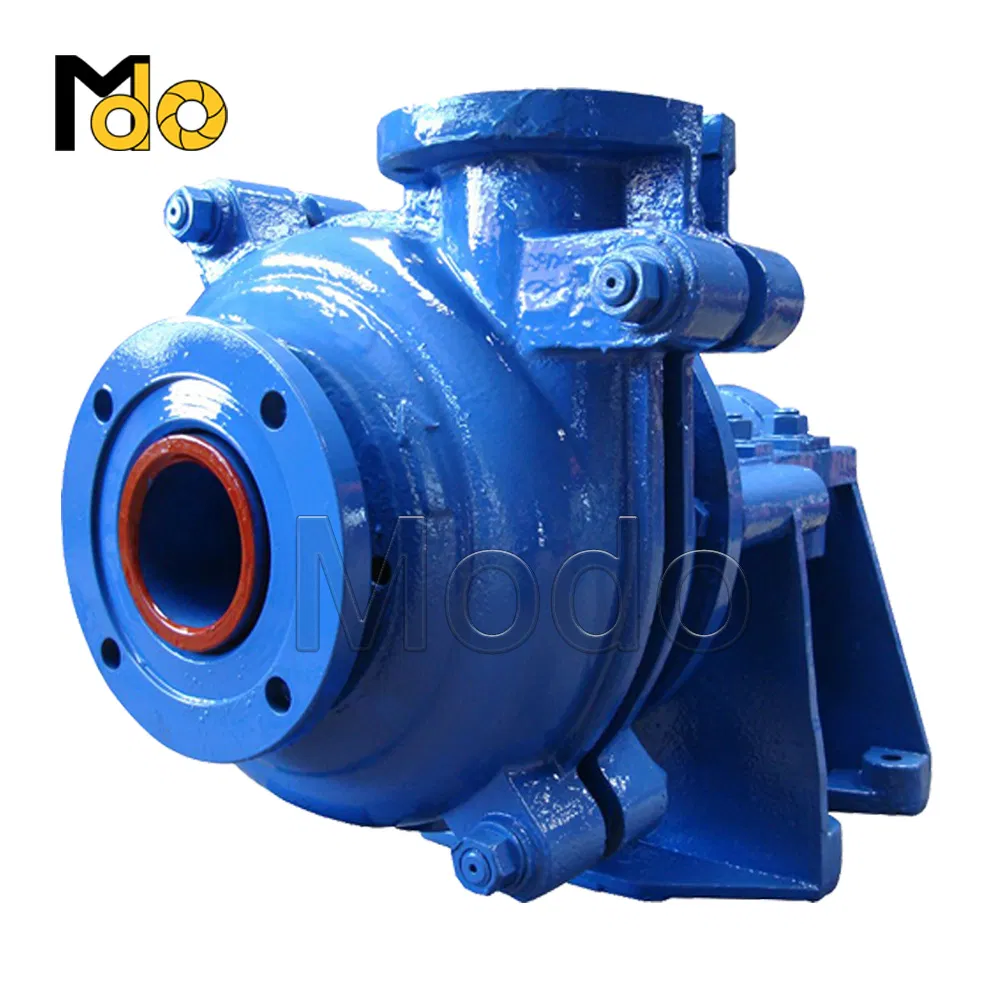

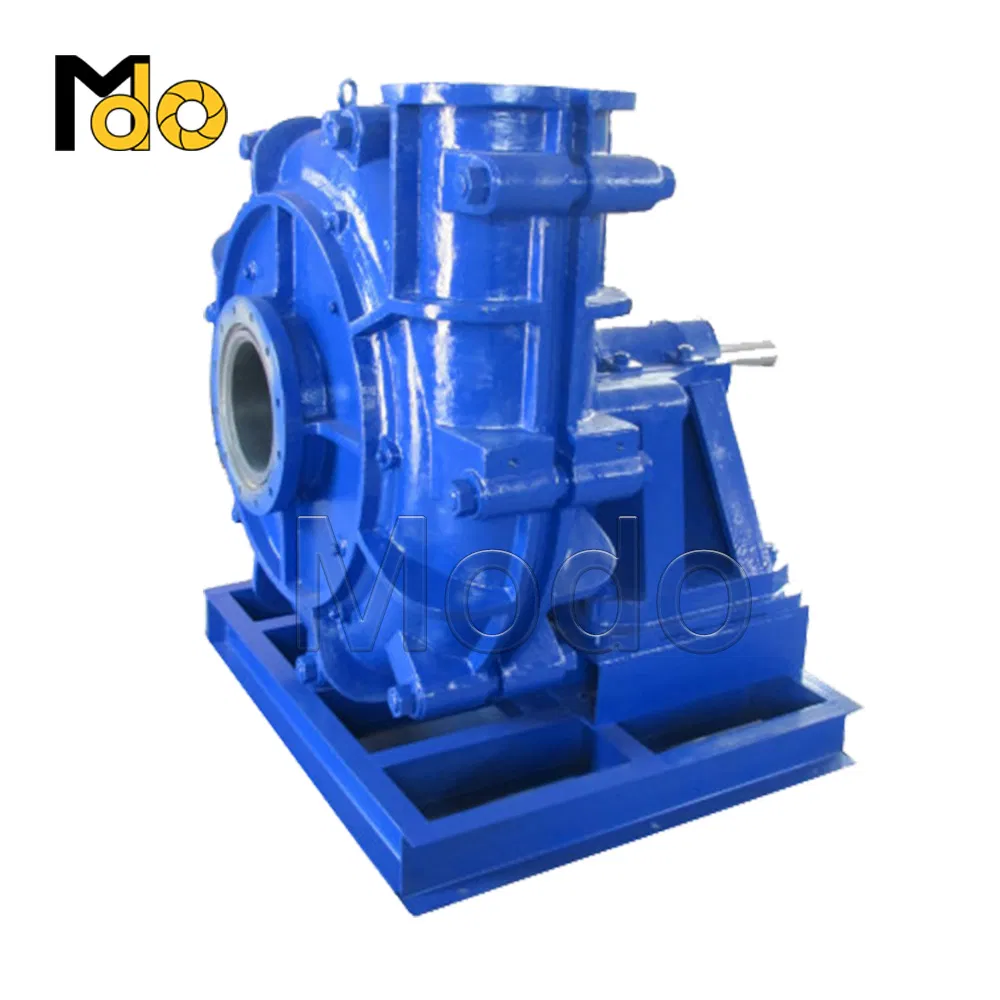

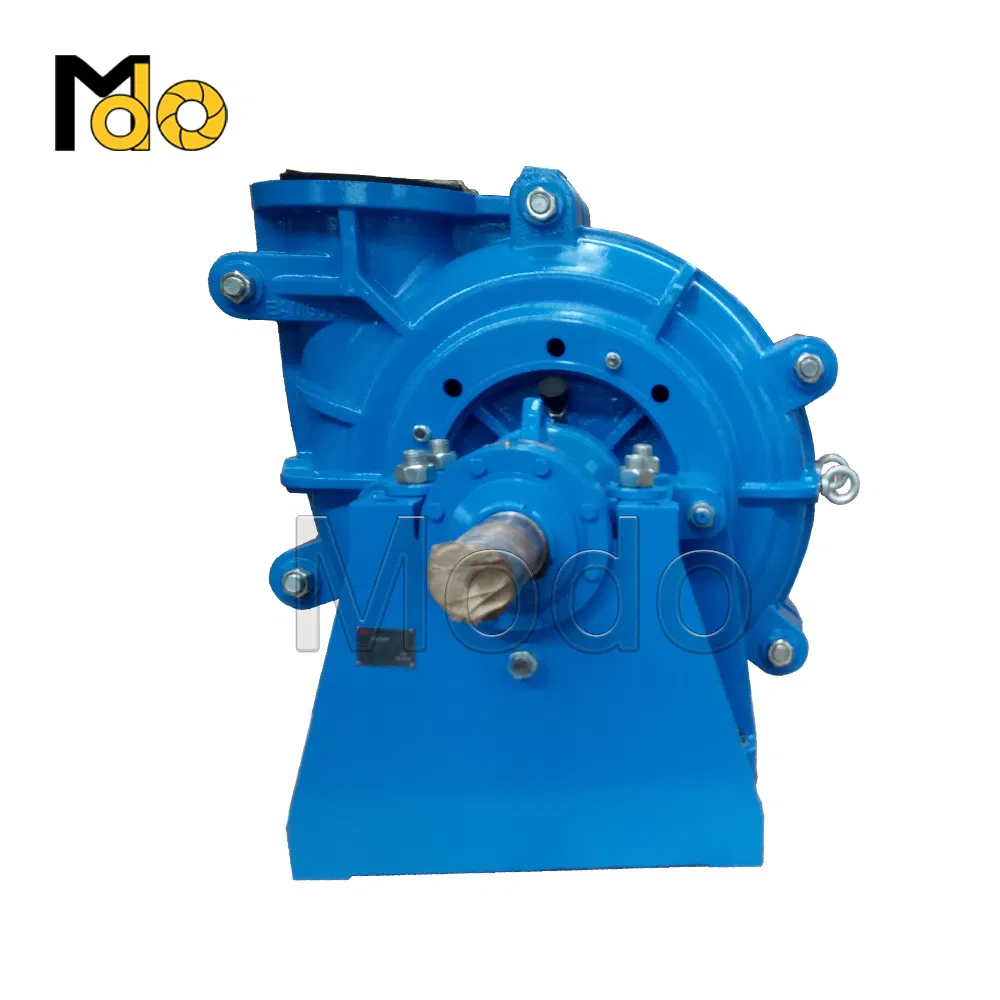

MAH slurry pump

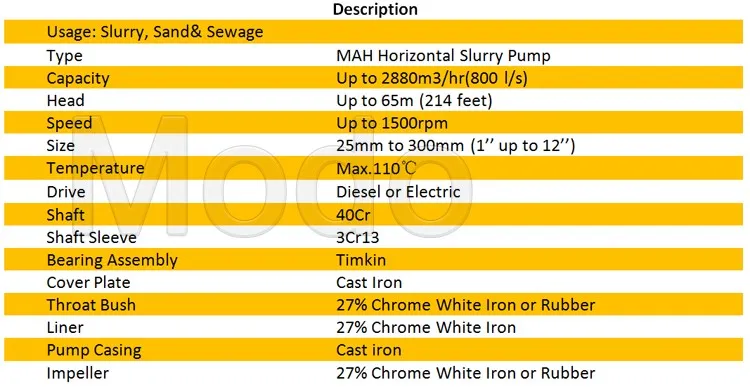

The MAH series Mineral Processing Heavy Duty Centrifugal Slurry Pump is designed for the
continuous pumping of highly abrasive, high density slurries with minimal maintenance
requirements.
The MAH series slurry pump will maintain high efficiencies over the wear life of its components.
Highly Wearable A07 Mineral Processing Diesel Engine 30 HP with Sand & Mud Pump

Type	Max. power	Capacity	Head	Speed	Max.Eff	NPSH	Impeller Dia.	Max.particle size
Type	(kw)	(m³/h)	(m)	(r/min)	(%)	(m)	(mm)	(mm)
MAH1.5-1	15	12-28	6-65	1200-3800	40	2-4	150	14
MAH2-1.5	15	32-72	6-58	1200-3200	45	3.5-8	185	19
MAH3-2	30	39-86	12-64	1300-2700	55	4-6	215	25
MAH4-3	60	86-198	9-52	1000-2200	71	4-5	245	28
MAH6-4	120	162-360	12-56	800-1500	68	5-8	365	44
MAH8-6	120	360-830	10-61	500-1140	72	2-9	510	63
MAH10-8	260	612-1368	11-61	400-850	71	4-10	685	76
MAH12-10	560	936-1980	7-68	400-750	82	1-5	760	86
MAH14-12	560	1260-2772	13-63	300-600	77	3-10	965	90

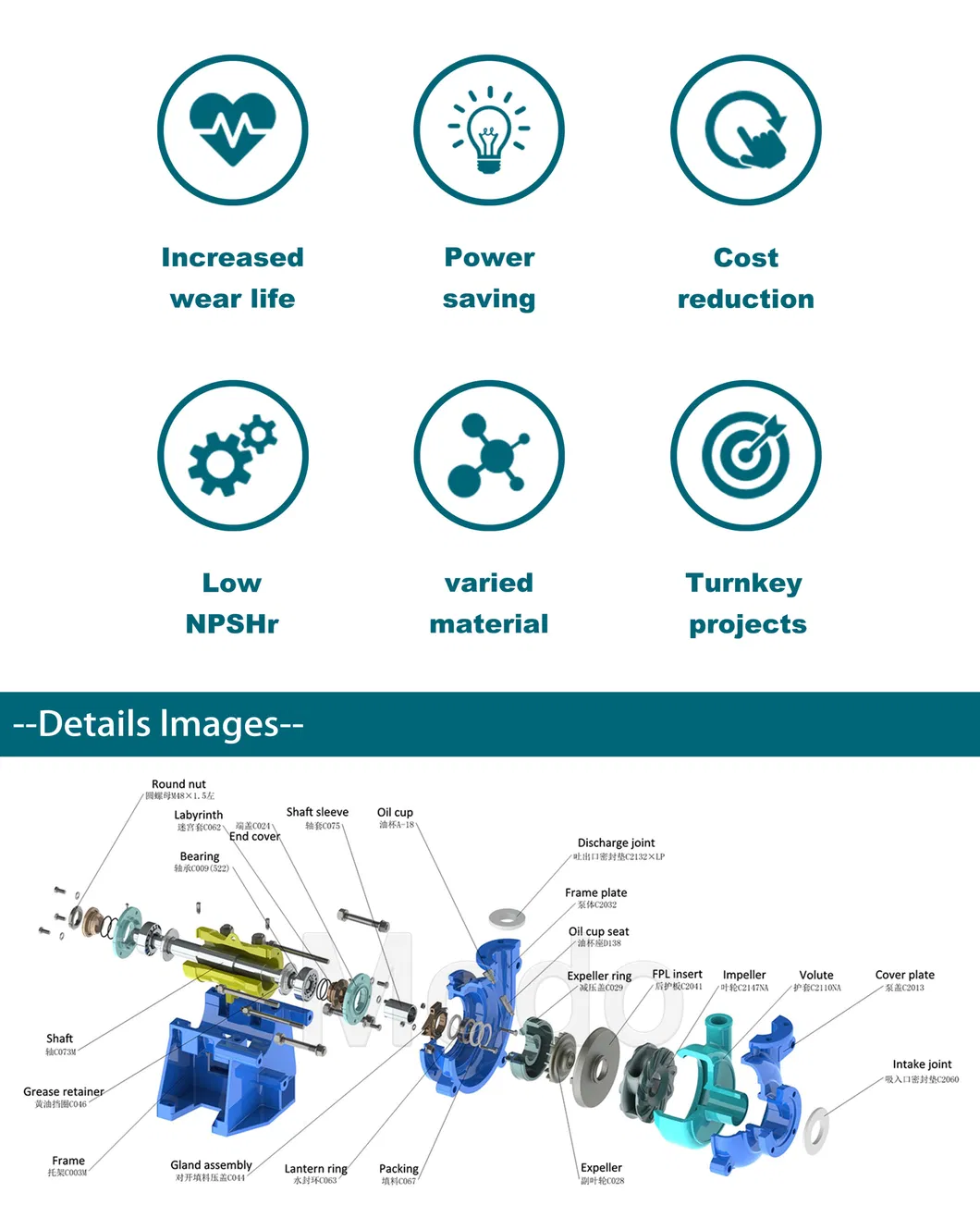

Rubber Pumps Material			Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber

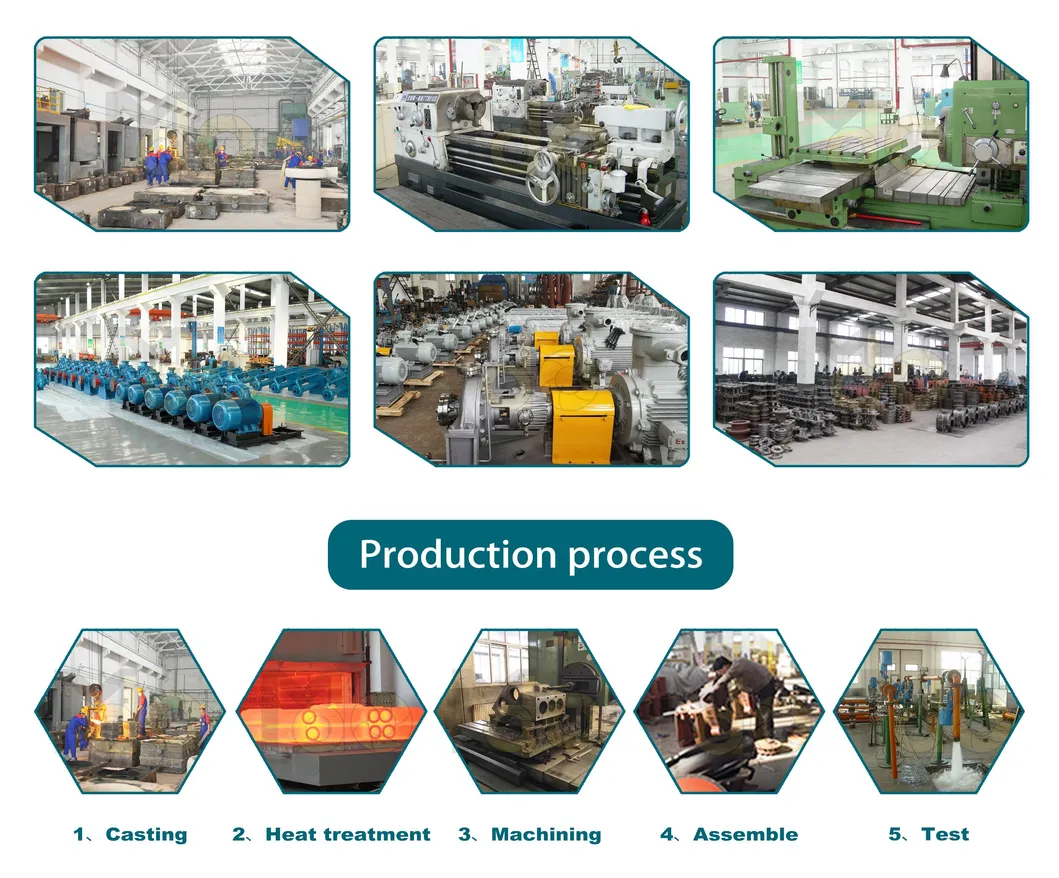

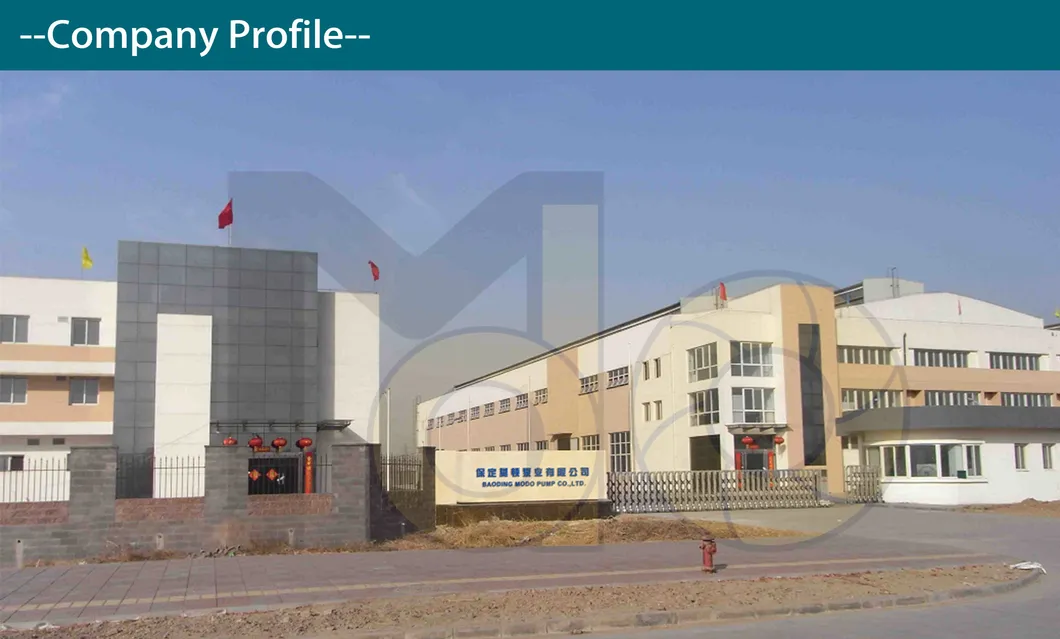

Modo Pump Co.,Ltd. is one over 30 years experienced pump manufacturer (establishedat 1986) in
mining and mineral, power plant, dredging and dredge, hydraulic, irrigation,pulp transfer, chemical,
construction, sea water and oil & gas transfer etc.; Modo Pump Co.,Ltd. is the pump factory has its
own pump selection & design, research and development team to assure provide you efficient,
energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in
selection & design,use and maintenance program.
Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump,
irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The
application covers many fields, such as mining and mineral processing, dredger, tailings transportation,
mining, steel, desulfurization pump,boiler feed water, construction, irrigation, water conservancy facilities,
sewage treatment,drainage and water supply.
Highly Wearable A07 Mineral Processing Diesel Engine 30 HP with Sand & Mud Pump

1, What information is needed to offer a slurry pump?
The pump model or the below information:
Liquid:___
Capacity:___ m3/hr
Head: ___ m
PH:___
Specific of gravity:___
Voltage:___V, Frequency:___hz

2, What material pump can you supply?
A05, Natural rubber, ceramics, polyurethane etc.

3, Can you supply special or OEM parts?
Yes, please send me the detailed drawing or parts code to check.

4, Do you only supply pumps? Could you supply driven equipment?

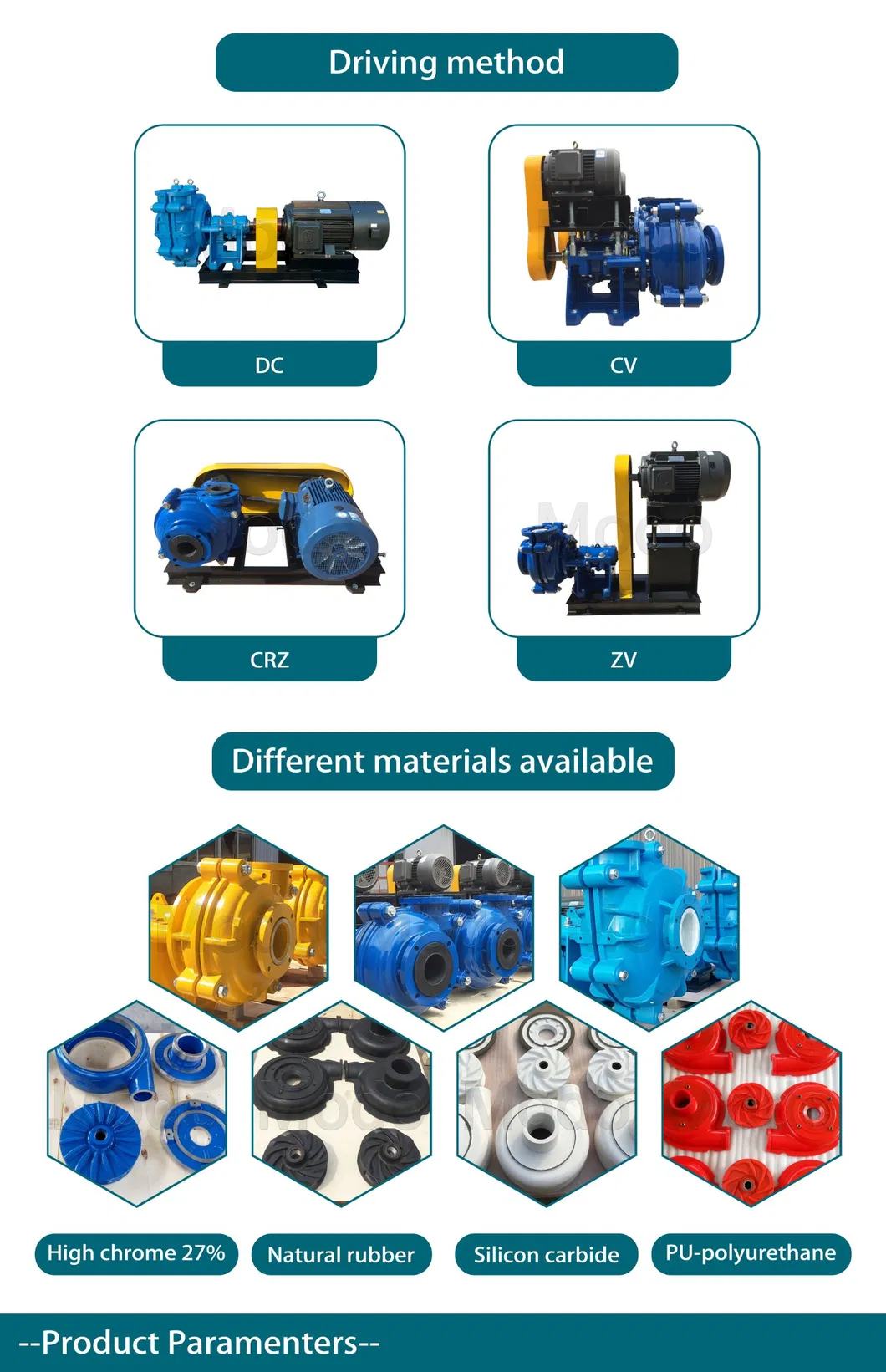

Yes, sure ,the pumps could be coupled with motor and diesel engine, below brands for your reference:
Motor: WEG, SIMENS ,ABB, TECO ,and Chinese brands
Diesel engine: Cummins, Deutz, Perkins,Volvo,MITSUBISHI, Caterpiller,MTU,and Chinese brands.

5, What is the delivery time?
10days for normal pumps.
