Product Description
High Pressure Horizontal Multistage Electric Power Fire Pump

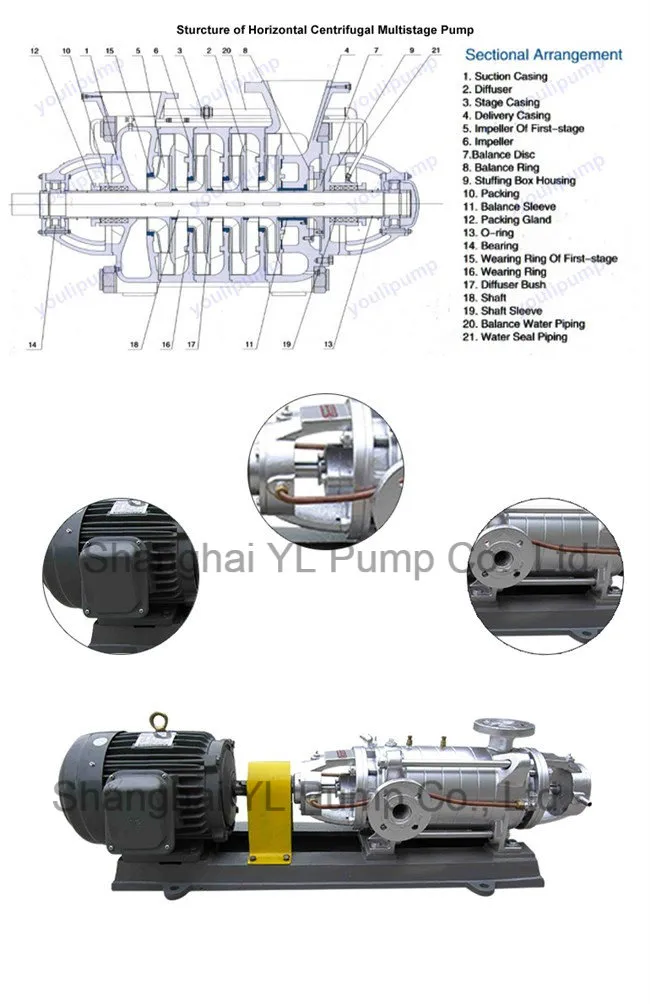

Structure
Specification
| D(DF,DY,MD)720-60×(2-9) | |||||||||
| Stage | Capacity | Head | Rating Speed | Efficiency | Shaft power | NPSHr | Impeller Dia | Pump Weight | |
| m3/h | L/s | m | r/min | % | KW | m | mm | kg | |
| 2 | 550 | 152.8 | 132 | 1480 | 76 | 260 | 3.5 | φ435 | 1830 |
| 720 | 200 | 120 | 80 | 294 | 4.5 | ||||
| 850 | 236.1 | 108 | 78.5 | 318.4 | 5.5 | ||||
| 3 | 550 | 152.8 | 198 | 1480 | 76 | 390 | 3.5 | φ435 | 2040 |
| 720 | 200 | 180 | 80 | 441 | 4.5 | ||||
| 850 | 236.1 | 162 | 78.5 | 477.6 | 5.5 | ||||
| 4 | 550 | 152.8 | 264 | 1480 | 76 | 520 | 3.5 | φ435 | 2350 |
| 720 | 200 | 240 | 78.5 | 588 | 4.5 | ||||
| 850 | 236.1 | 216 | 80 | 636.8 | 5.5 | ||||
| 5 | 550 | 152.8 | 330 | 1480 | 76 | 640 | 3.5 | φ435 | 2650 |
| 720 | 200 | 300 | 80 | 735 | 4.5 | ||||
| 850 | 236.1 | 270 | 78.5 | 796 | 5.5 | ||||
| 6 | 550 | 152.8 | 396 | 1480 | 76 | 780 | 3.5 | φ435 | 2960 |
| 720 | 200 | 360 | 80 | 882 | 4.5 | ||||
| 850 | 236.1 | 324 | 78.5 | 955.2 | 5.5 | ||||
| 7 | 550 | 152.8 | 462 | 1480 | 76 | 910 | 3.5 | φ435 | 3280 |
| 850 | 200 | 420 | 80 | 1029 | 4.5 | ||||
| 720 | 236.1 | 378 | 78.5 | 1114.4 | 5.5 | ||||
| 8 | 550 | 152.8 | 528 | 1480 | 76 | 1040 | 3.5 | φ435 | 3595 |
| 720 | 200 | 480 | 80 | 1176 | 4.5 | ||||
| 850 | 236.1 | 432 | 78.5 | 1273.6 | 5.5 | ||||
| 9 | 550 | 152.8 | 594 | 1480 | 76 | 1170 | 3.5 | φ435 | 3900 |
| 720 | 200 | 540 | 80 | 1323 | 4.5 | ||||
| 850 | 236.1 | 486 | 78.5 | 1432.8 | 5.5 | ||||

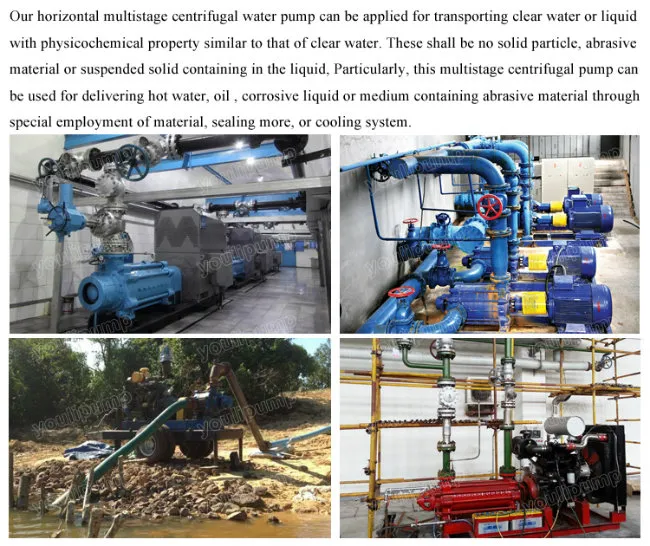

Application
Our Client
Our Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

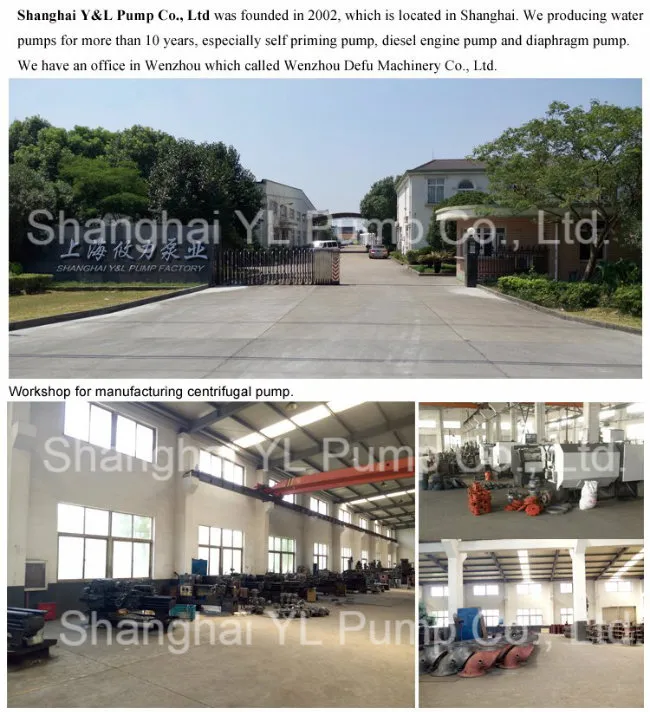

About Us
