China Good Quality Double Suction Split Casing Water Pump with Electric

Product Description

Good Quality Double Suction Split Casing Water Pump with Electric

1.Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW125-380(I)	125	34.7	52	1480	40.2	44	2.1	385	370
	310.5	86.3	47		49.7	80
	360	100	42		52.1	79
TPOW125-380(I)A	104	28.9	43		28.3	43		353
	282.8	78.6	39		38	79
	324	90	31.8		36	78
TPOW125-380(I)B	93	25.8	34		20.5	42		321
	254.2	70.6	31.5		28	78
	288	80	27		27.5	77
TPOW125-380(I)C	85.5	23.7	26		15.1	40		298
	221.9	61.6	24		19.1	76
	252	70	22		20.1	75
TPOW125-380	278	77.2	43	1480	41.2	79	2.4	385	370
	324	90	38		43.5	77
	324	90	38		43.5	77
TPOW125-380A	92.1	25.8	40		25.1	40		353
	257.9	71.6	37		33.3	78
	288	80	35		36.1	76
TPOW125-380B	84	23.3	33		19.4	39		321
	234.1	65	30.5		25.3	77
	270	75	27		26.5	75
TPOW125-380C	79.1	22	27		15.3	38		298
	209.8	58.3	24.5		18.4	76
	241.2	67	20		17.8	74

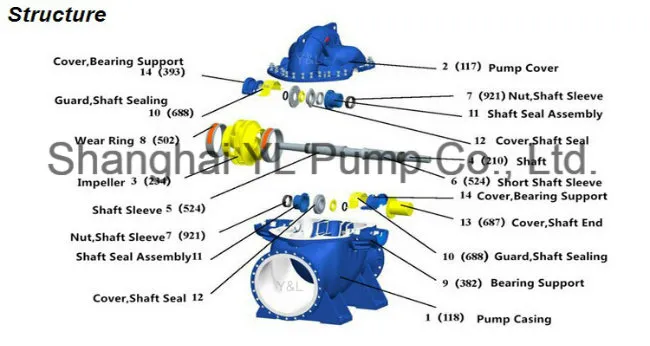

2.Structure
Good Quality Double Suction Split Casing Water Pump with Electric

TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.

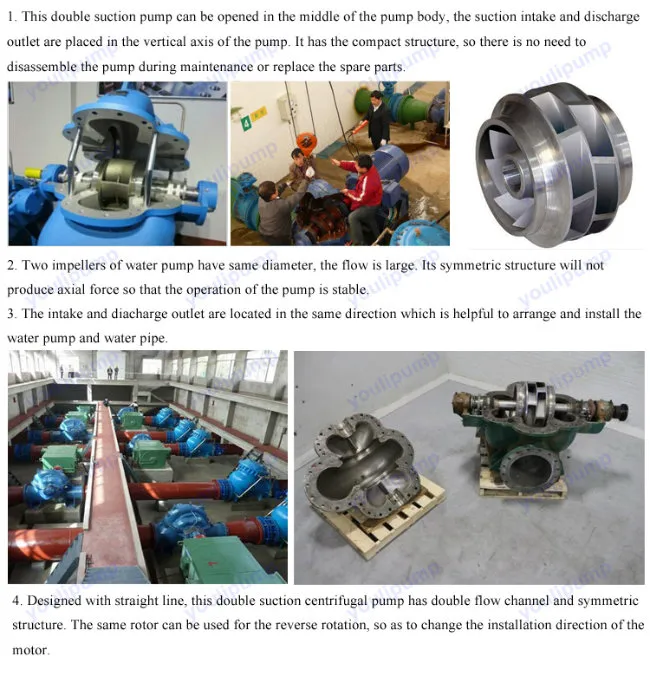

3.Feature
Good Quality Double Suction Split Casing Water Pump with Electric

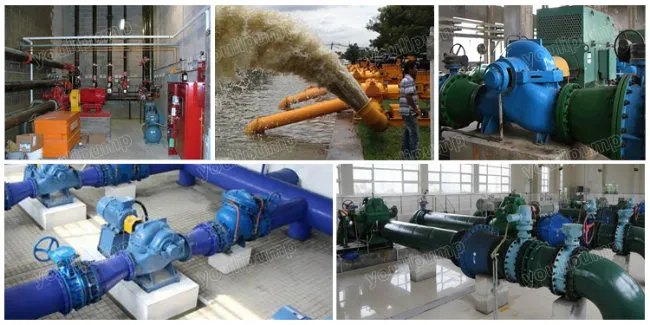

4.Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large solid particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping station, iron and steel metallurgy, petrochemical refining and other fields.
Good Quality Double Suction Split Casing Water Pump with Electric

5.Service

1.Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
2. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
5. Warranty: 12 month for the pump body, 3 month for the main working parts.

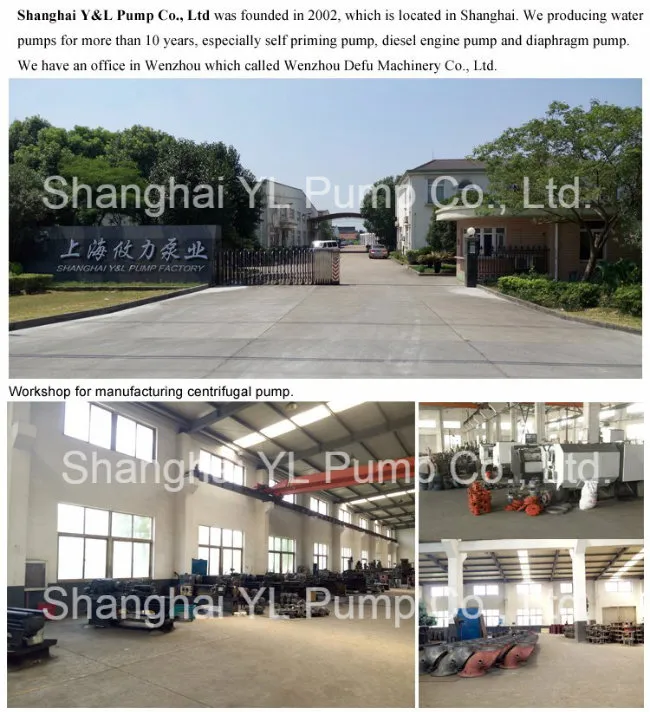

6.Factory
Good Quality Double Suction Split Casing Water Pump with Electric
