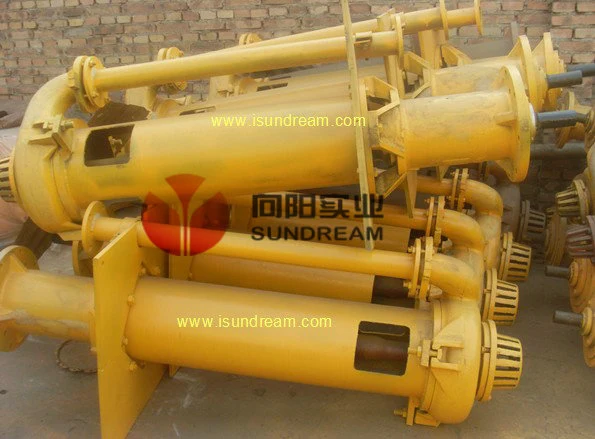

Fy Series Pump Sump Pump

Sump Pump

We are professional manufacturer for Sump Pump, our Sump Pump is with high and stable quality, and we have made many Sump Pump solutions for many customers.

FY series Sump Pumpare new type pumps optimally designed on the basis of conventional corrosion resisiting submeged pumps and with the advanced technology of the like products from Switserland Sulzer. This pump abolished the use of mechanical seal that is genetally accepted by other submerged pumps, and has utilized distinctively structured impeller to feature high effiiciency, energy conservation, no leakage, and long service life. They are widely used in the industrise of petroleum, chemical, pharmaceuticals, papermaking, metallurgy, sewage treatment, etc

1. Application:
Vertical centrifugal pumps of type CYP
Have been developed specially for
Discharging aggressive, lightly contaminated
Liquids such as acids, alkalis and
Chemical effluents.

Salient Features:
The closed impeller design using long
Axial throttle gaps permits submersion
Depths down to 3 M at operating
Temperatures of 110 ° C.

Quiet and steady running of the shaft is
Guaranteed through the use of a submerged
Sleeve bearing made of carbon,
Ceramic or silicon carbide and a selfaligning
Roller bearing which will not be in
Contact with the pumped liquid.

1. All parts in contact with the liquid are
Rnade of strong, solid plastic. The heavily
Constructed shaft has been given a
Nonporous plastic coating.

2. Suspension and discharge pipings
Are separate and solidly constructed.

3. No metal parts are in direct contact
With the pumped medium.

4. Mounting flange up to pump size
80/200 respectively Siemens motor size 160
Made of solid plastic. Use of rubber-lined
Steel for larger sizes.

5. Motor and pump shaft are connected
By coupling with flexible elements.

6. Drive by means of Siemens standard motors.
Submersion Depth:
The CYP is available with lengths of
500, 1000, 1500, 1750 mm; For designs
Using intermediate bearings in sizes
2000, 2500 and 3000 mm.
Extension of submersion depths within
Given limits as well as adjustment to
Intermediate lengths is made possible by
Connecting a corresponding suction
Piping to provide the exact setting.
