Fsb Fluoroplastic Chemical Pump Acid Resistant Integral Pump
FSB series of pump is a kind of single-stage and single-suction cantilevered centrifugal pump.The flow passage components are made of fluoroplastics, the lining materials of pump body cover such varieties as Fluorinated ethylene propylene (FEP) and Polyvinylidence fluoride (PVDF), which can be selec......
Send Inquiry
Product Description

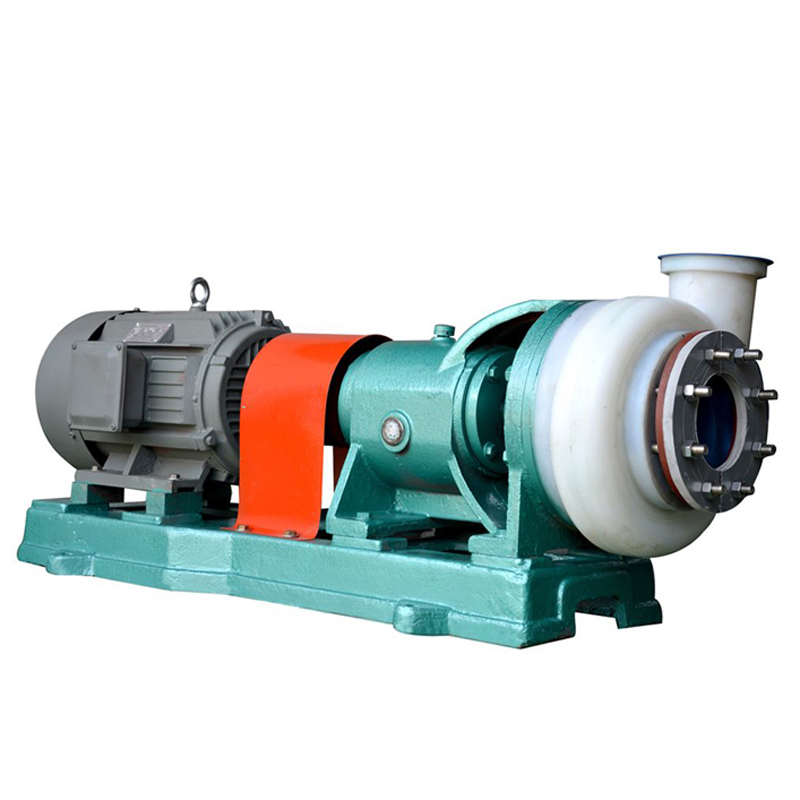

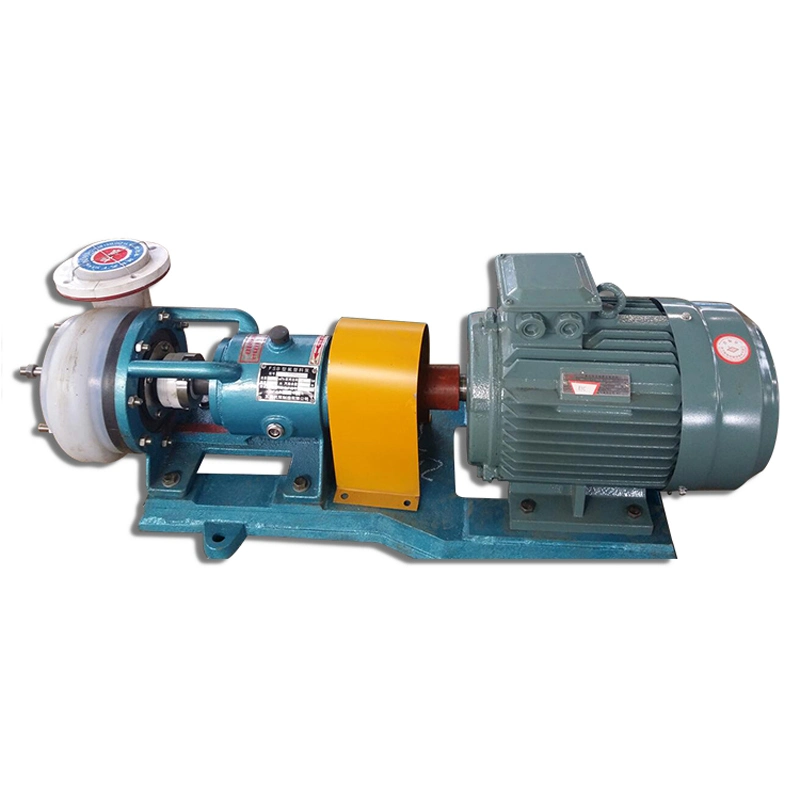

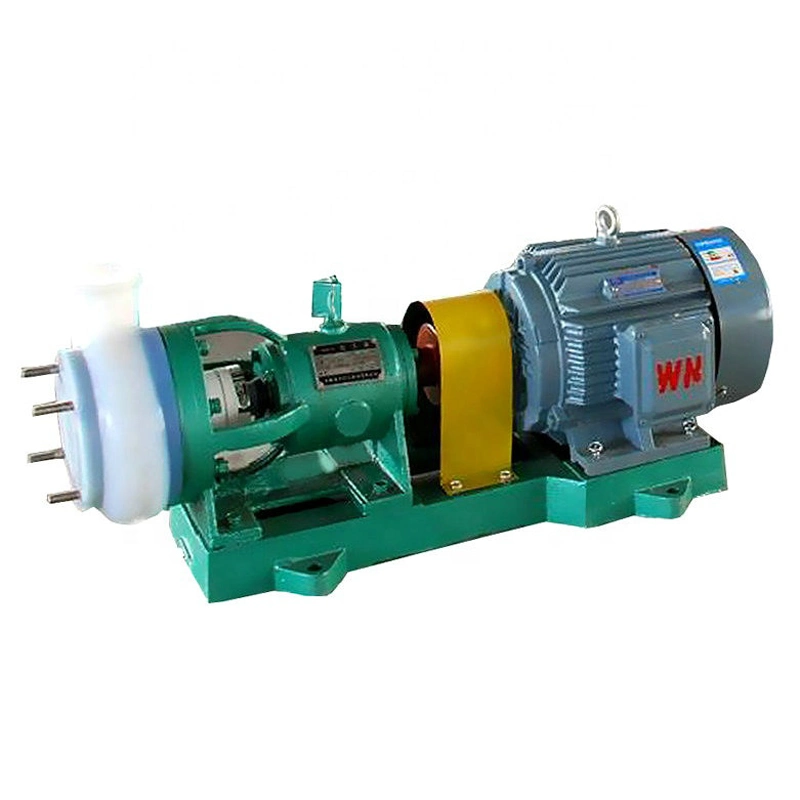

FSB series of pump is a kind of single-stage and single-suction cantilevered centrifugal pump.
The flow passage components are made of fluoroplastics, the lining materials of pump body cover such varieties as Fluorinated ethylene propylene (FEP) and Polyvinylidence fluoride (PVDF), which can be selected by the user according to the requirement.
This variety of pump is mainly applicable for conveying such types of clear solution media as acid-base or solvent. After the special sealing is employed, the corrosive media with inclusion of a small amount of solid can also be conveyed. The mechanical sealing with such types as WB2, 152 and 169 is employed by this series of pump, with 20~100ºC for application temperature scope
When this series of pump is under the special working condition for user, the pump body and vane wheel are also made of UHMWPE, meanwhile, the price of product changes with variation of materials.

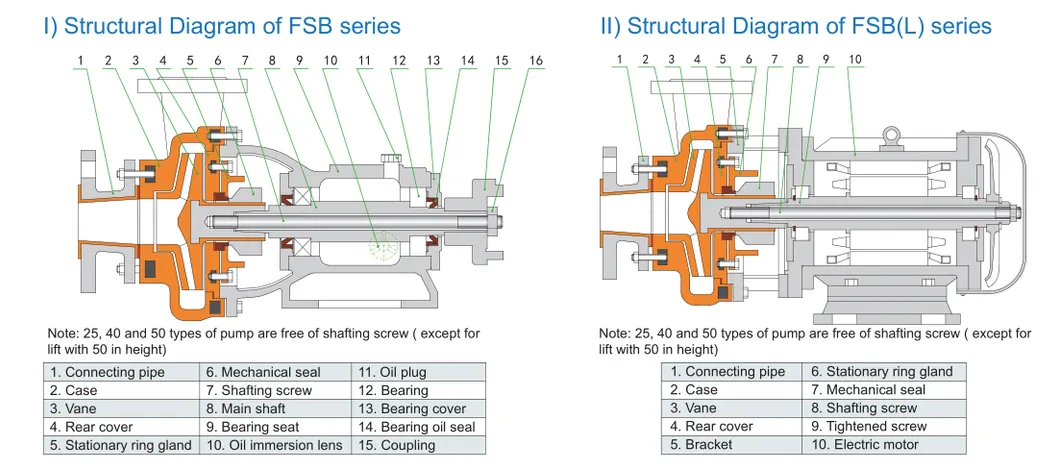

III) FSB type of pump is of bracket structure, with characteristics of convenient maintenance on. FSB(L) type of pump is of direct-linkage structure, with characteristics of portableness, energy saving and economy. The user can select type according to the requirement of this organization.
Characteristics:
Plastic shell, long life of machine seal, portable equipment.
According to the characteristics of different working conditions, choose different configurations. Fluoroplastic centrifugal pump is divided into two types according to the design concept: Lining fluorine centrifugal pump (heavy duty) and fluorine alloy centrifugal pump (light). The fluoroplastic centrifugal pump can withstand the corrosion of almost all medium. After selecting suitable mechanical seal, the fluoroplastic centrifugal pump can transport the corrosive medium or high risk chemicals between -20 C and -150 C. For example: hydrochloric acid, fuming sulfuric acid, hydrofluoric acid, concentrated nitric acid, three phosphorus oxychloride, phosphorus trichloride, caustic soda, calcium chloride and so on. Tenglong pump valve is fluoroplastic centrifugal pump, fluorine centrifugal pump, fluorine plastic alloy centrifugal pump the most complete model, the lowest price manufacturers
Our Certificates:

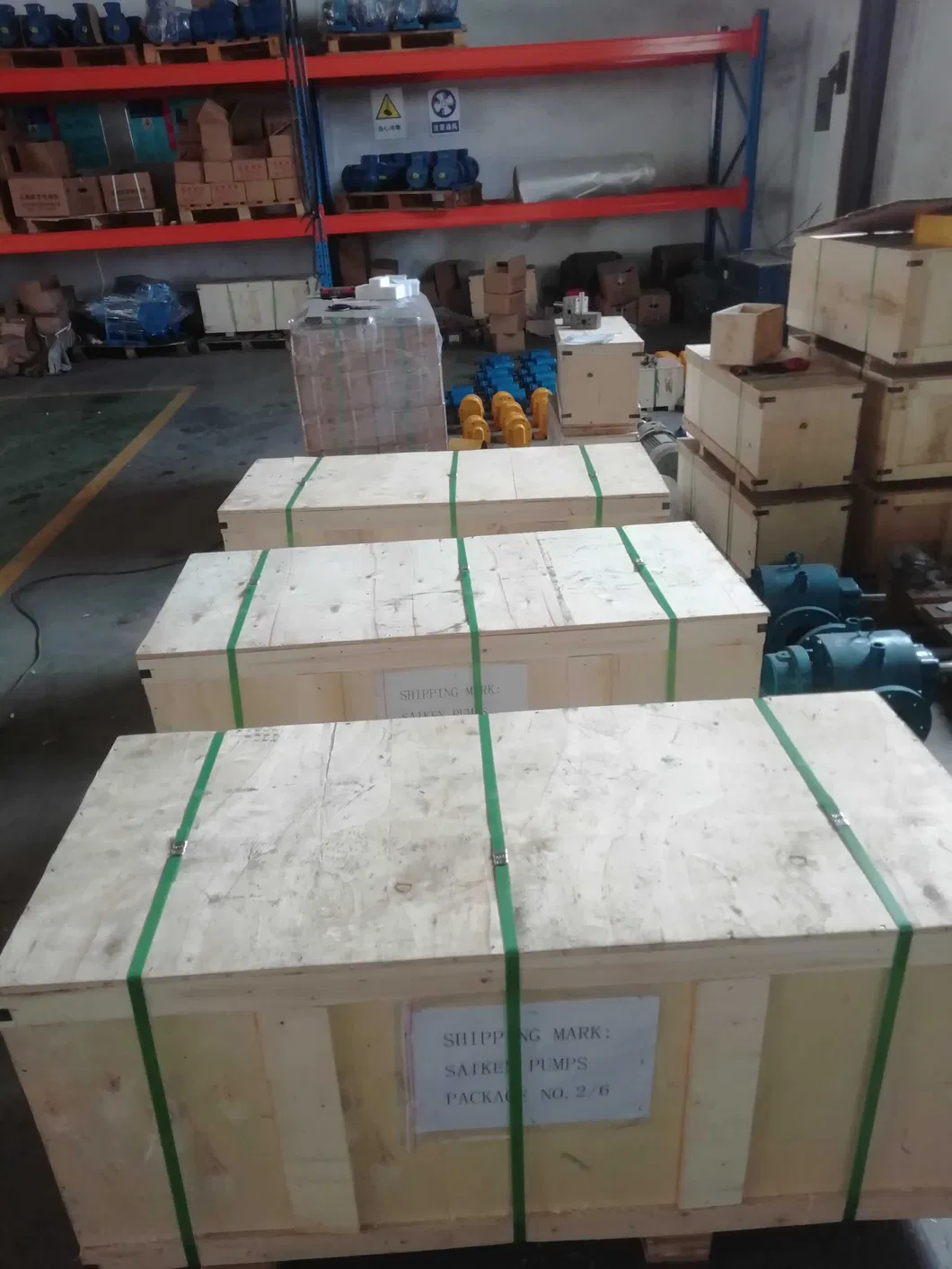

Packaging & Shipping:
Why Choose Us:
Specialists in Custom of Pump-Oil transfer Pump Supplier,China Pump Exporter
Saiken Pumps are a specialist pump manufacturer & supplier for the marine and industrial markets for most applications but not limited transfer of water, fuels oil and lubricants. Assured quality, technical expertise and application experience is what you can expect. Our added value is our knowledge in specifying the right pump for your requirements.
With a large portion of Saiken Pumps' customers being from overseas, we have great experience in handling pump enquiries and projects for export throughout 70 different countries worldwide.
Payment terms:
Payment : 50% or 100% T/T
MOQ: 1pcs
Warranty: 12 months
Package information: Carton or wooden case
The flow passage components are made of fluoroplastics, the lining materials of pump body cover such varieties as Fluorinated ethylene propylene (FEP) and Polyvinylidence fluoride (PVDF), which can be selected by the user according to the requirement.
This variety of pump is mainly applicable for conveying such types of clear solution media as acid-base or solvent. After the special sealing is employed, the corrosive media with inclusion of a small amount of solid can also be conveyed. The mechanical sealing with such types as WB2, 152 and 169 is employed by this series of pump, with 20~100ºC for application temperature scope
When this series of pump is under the special working condition for user, the pump body and vane wheel are also made of UHMWPE, meanwhile, the price of product changes with variation of materials.
III) FSB type of pump is of bracket structure, with characteristics of convenient maintenance on. FSB(L) type of pump is of direct-linkage structure, with characteristics of portableness, energy saving and economy. The user can select type according to the requirement of this organization.
Characteristics:
Plastic shell, long life of machine seal, portable equipment.
According to the characteristics of different working conditions, choose different configurations. Fluoroplastic centrifugal pump is divided into two types according to the design concept: Lining fluorine centrifugal pump (heavy duty) and fluorine alloy centrifugal pump (light). The fluoroplastic centrifugal pump can withstand the corrosion of almost all medium. After selecting suitable mechanical seal, the fluoroplastic centrifugal pump can transport the corrosive medium or high risk chemicals between -20 C and -150 C. For example: hydrochloric acid, fuming sulfuric acid, hydrofluoric acid, concentrated nitric acid, three phosphorus oxychloride, phosphorus trichloride, caustic soda, calcium chloride and so on. Tenglong pump valve is fluoroplastic centrifugal pump, fluorine centrifugal pump, fluorine plastic alloy centrifugal pump the most complete model, the lowest price manufacturers
| NO | Model | Speed=2900r/min,Medium density=1000kg/m³ | ||||||||
| Flow m³/h | Head m | Eff % | Inlet mm | Outlet mm | Npsh m | Power kw | Weight | |||
| 1 | 25FSB-10 | 1.5 | 10 | 25 | φ25 | φ20 | 3 | 1.5 | 48 | |
| 2 | 25FSB-18 | 3.6 | 18 | 27 | φ25 | φ20 | 3 | 2.2 | 48 | |
| 3 | 25FSB-25 | 3.6 | 25 | 27 | φ25 | φ20 | 3 | 2.2 | 48 | |
| 4 | 40FSB-15 | 5 | 15 | 40 | φ40 | φ32 | 3 | 3 | 75 | |
| 5 | 40FSB-20 | 5 | 20 | 42 | φ40 | φ32 | 3 | 3 | 75 | |
| 6 | 40FSB-30 | 10 | 30 | 42 | φ40 | φ32 | 3 | 3 | 75 | |
| 7 | 50FSB-25 | 12.5 | 25 | 43 | φ50 | φ32 | 3.5 | 3 | 75 | |
| 8 | 50FSB-30 | 12.5 | 30 | 42 | φ50 | φ32 | 3.5 | 3 | 75 | |
| 9 | 65FSB-32 | 25 | 32 | 45 | φ65 | φ50 | 3.5 | 5.5 | 120 | |
| 10 | 80FSB-20 | 50 | 20 | 45 | φ80 | φ65 | 3.5 | 5.5 | 130 | |
| 11 | 80FSB-25 | 50 | 25 | 50 | φ80 | φ65 | 3.5 | 7.5 | 145 | |
| 12 | 80FSB-30 | 50 | 30 | 59 | φ80 | φ65 | 4 | 7.5 | 145 | |
| 13 | 80FSB-40 | 50 | 40 | 48 | φ80 | φ50 | 4 | 11 | 195 | |
| 14 | 80FSB-50 | 50 | 50 | 57 | φ80 | φ50 | 4 | 15 | 210 | |
| 15 | 80FSB-55 | 50 | 55 | 50 | φ80 | φ50 | 4 | 18.5 | 230 | |
| 16 | 100FSB-32 | 100 | 32 | 68 | φ100 | φ80 | 3.5 | 15 | 250 | |
Our Certificates:
Packaging & Shipping:
Why Choose Us:
Specialists in Custom of Pump-Oil transfer Pump Supplier,China Pump Exporter
Saiken Pumps are a specialist pump manufacturer & supplier for the marine and industrial markets for most applications but not limited transfer of water, fuels oil and lubricants. Assured quality, technical expertise and application experience is what you can expect. Our added value is our knowledge in specifying the right pump for your requirements.
With a large portion of Saiken Pumps' customers being from overseas, we have great experience in handling pump enquiries and projects for export throughout 70 different countries worldwide.
Payment terms:
Payment : 50% or 100% T/T
MOQ: 1pcs
Warranty: 12 months
Package information: Carton or wooden case
