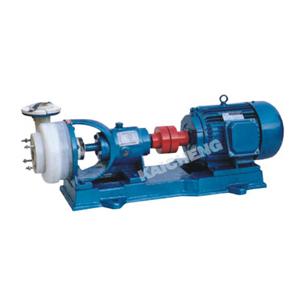

Fsb Fluoroplastic Anticorrosion Centrifugal Pump
FSB Fluoroplastic Anticorrosion Centrifugal PumpCapacity: 3-100m3/hHead: 15~ 50mSize: 40mm ~ 100mmSpeed: 1450 ~ 2900 r/mTemperature: -20 ~ 100 degree1. SummarizeThe fluoroplastic alloy material is one of the latest erosion proof materials in the world. We select FSB and FSB-D type pump, which has th......
Send Inquiry
Product Description
Capacity: 3-100m3/h
Head: 15~ 50m
Size: 40mm ~ 100mm
Speed: 1450 ~ 2900 r/m
Temperature: -20 ~ 100 degree
1. Summarize
The fluoroplastic alloy material is one of the latest erosion proof materials in the world. We select FSB and FSB-D type pump, which has the merit of corrosion proof, high mechanical intension, no aging and innocently decomposing.
2. Usage
This pump can be used in transporting harsh and strong erosive medium of any density such as vitriol, hydrochloric, organic dissolvent and reducing agent etc. Therefore it is applied in the chemical, oil, pharmaceutics, metallurgy, light industry, printing dyeing, paper making, food and etc.
3. Characteristic
FSB fluoroplastic alloy pump contain body, impeller, back cover, sealing parts, bracket, axes, bolt and nut. The medium temperature: -20 ~ 100 degree, flux 3-100m3/h; Outlet pressure 15-50m rotate speed 2900r/min.
| Type | Capacity (m3/h) | Head (m) | Size (mm) | Power (Kw) | Speed | NPSH | Efficiency | ||
| Inlet | Outlet | Shaft | Motor | (r/min) | (m) | (%) | |||
| FSB | |||||||||
| 40FSB-15 | 5 | 15 | 40 | 32 | 0.4 | 3 | 2900 | 3 | 40 |
| 40FSB-20 | 10 | 20 | 40 | 32 | 1.16 | 3 | 2900 | 3 | 42 |
| 40FSB-30 | 10 | 30 | 40 | 32 | 1.18 | 3 | 2900 | 3 | 52 |
| 50FSB-20 | 12.5 | 20 | 50 | 32 | 1.49 | 3 | 2900 | 3.5 | 55 |
| 50FSB-25 | 12.5 | 25 | 50 | 32 | 1.86 | 3 | 2900 | 3.5 | 55 |
| 50FSB-30 | 15 | 30 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 54 |
| 65FSB-32 | 25 | 32 | 65 | 50 | 4.8 | 5.5 | 2900 | 2 | 45 |
| 80FSB-20 | 50 | 20 | 80 | 65 | 4.7 | 5.5 | 2900 | 3 | 45 |
| 80FSB-25 | 42 | 25 | 80 | 65 | 5.7 | 7.5 | 2900 | 3 | 50 |
| 80FSB-30 | 50 | 30 | 80 | 65 | 6.9 | 7.5 | 2900 | 3.5 | 59 |
| 80FSB-40 | 45 | 40 | 80 | 50 | 10.2 | 11 | 2900 | 3.5 | 48 |
| 80FSB-50 | 50 | 50 | 80 | 50 | 11.9 | 15 | 2900 | 3.5 | 57 |
| 80FSB-55 | 50 | 55 | 80 | 50 | 13.5 | 18.5 | 2900 | 4 | 50 |
| 100FSB-32 | 100 | 32 | 100 | 80 | 11.9 | 15 | 2900 | 3.5 | 68 |
| FSB( Short suport) | |||||||||
| 40FSB-15(D) | 5 | 15 | 40 | 32 | 0.4 | 3 | 2900 | 3 | 40 |
| 40FSB-20(D) | 10 | 20 | 40 | 32 | 1.16 | 3 | 2900 | 3 | 42 |
| 40FSB-30(D) | 10 | 30 | 40 | 32 | 1.18 | 3 | 2900 | 3 | 52 |
| 50FSB-20(D) | 12.5 | 20 | 50 | 32 | 1.49 | 3 | 2900 | 3.5 | 55 |
| 50FSB-25(D) | 12.5 | 25 | 50 | 32 | 1.86 | 3 | 2900 | 3.5 | 55 |
| 50FSB-30(D) | 15 | 30 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 54 |
| 65FSB-32(D) | 25 | 32 | 65 | 50 | 3.61 | 5.5 | 2900 | 3.5 | 65 |
| 80FSB-25(D) | 42 | 25 | 80 | 65 | 3.8 | 7.5 | 2900 | 3.5 | 67 |
| 80FSB-30(D) | 50 | 30 | 80 | 65 | 6.82 | 7.5 | 2900 | 3.5 | 68 |
RFQ
1. How to get our quotation in time, pls answer following questions:
1)What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
2) What's the flow or capcity (m3/h, L/m)?
3) What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
4) Contact us to get the quotation
2.OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Warranty Period: One year, except spare parts
9. Why choose KAICHENG: Decades experiences manufacturer
Good quality with competitive pirce
ISO, CE certificate
Professional after-sales service
