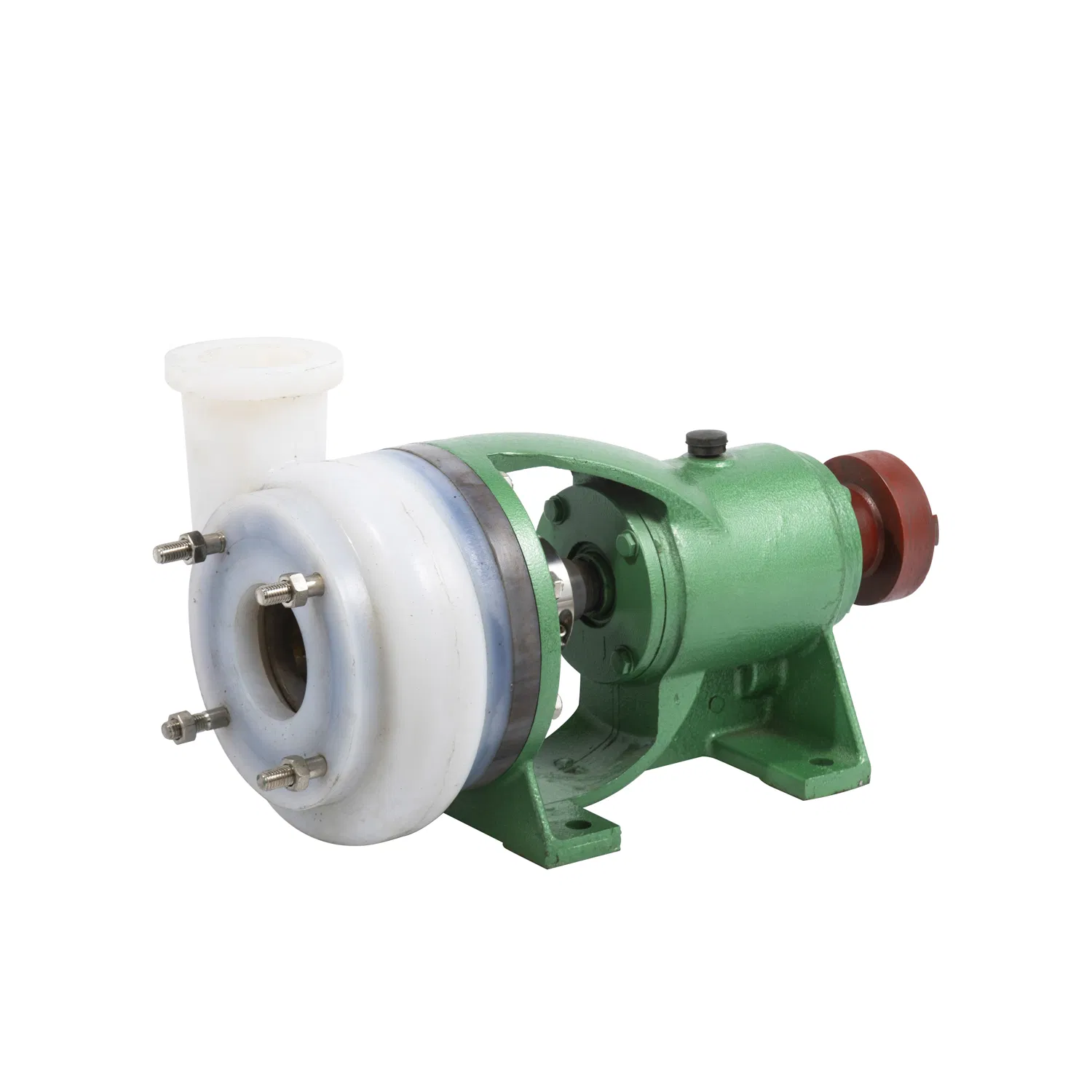

Fsb Corrosion Resistant Acid Fluoroplastic Chemical Centrifugal Pump

First, FSB fluoroplastic pump overview

FSB type fluoroplastic alloy pump is designed according to international standard size, the pump body adopts metal and poly perfluoroethylene propylene (F46) organic combination, the pump cover, impeller and shaft sleeve all use metal embedded parts outsource fluoroplastic integral computer temperature control sintering pressing molding, shaft seal uses external bellows mechanical seal, static ring selection 99% alumina ceramic or silicon nitride,
The moving ring adopts tetrafluorine filling material, corrosion resistance and wear resistance, suitable for conveying any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua franca, strong alkali, strong oxidant, organic solvent, oxidant and other harsh conditions of strong corrosive media, is currently one of the world's most strong corrosion resistant materials.
Put an end to run, risk, drop, leakage, fluorine plastic alloy pump is widely used in chemical industry, acid system, alkali system, smelting, rare earth, pesticide, dyes, medicine, paper making, electroplating, electrolysis, pickling, electronic components, scientific research institutions and other industries.

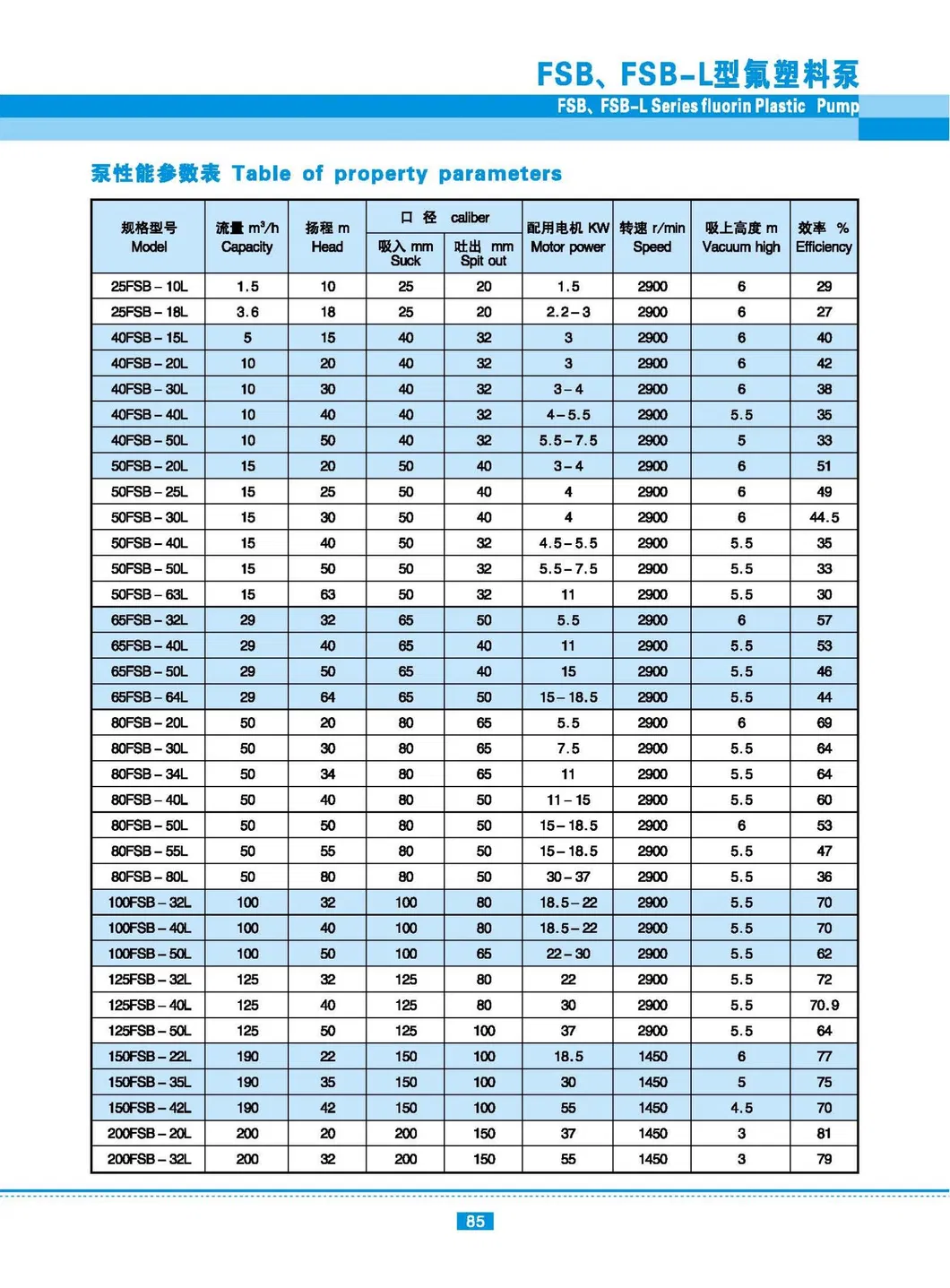

Two, fluorine plastic alloy centrifugal pump model meaning

50FSB-30DL
50 represents suction inlet diameter (mm)
FS represents the material of the part in contact with the medium is fluoroplastic
B stands for single stage single suction cantilever centrifugal pump
30 stands for head (m)
D stands for short bracket connection

L stands for shaft-connected type (with bottom plate)

Three, fluorine plastic alloy centrifugal pump product characteristics:

FSB type fluoroplastic alloy pump is composed of pump body, impeller, cover, seal, bracket, pump shaft, coupling shaft, hanging bolt, nut, bottom plate and so on.

1, the pump body: the left and right sides are connected to the department of a steel flange ring embedded in each molding made of plastic alloy.
It has the advantages of compact and reasonable structure, strong corrosion resistance, tight and reliable sealing function, stable work, low noise, high mechanical strength, no aging, no toxin decomposition, convenient maintenance, smooth flow channel, high efficiency, energy saving and so on.

2, the right side of the gland is buried with a stainless steel (1Cr18Ni9Ti) plastic alloy.

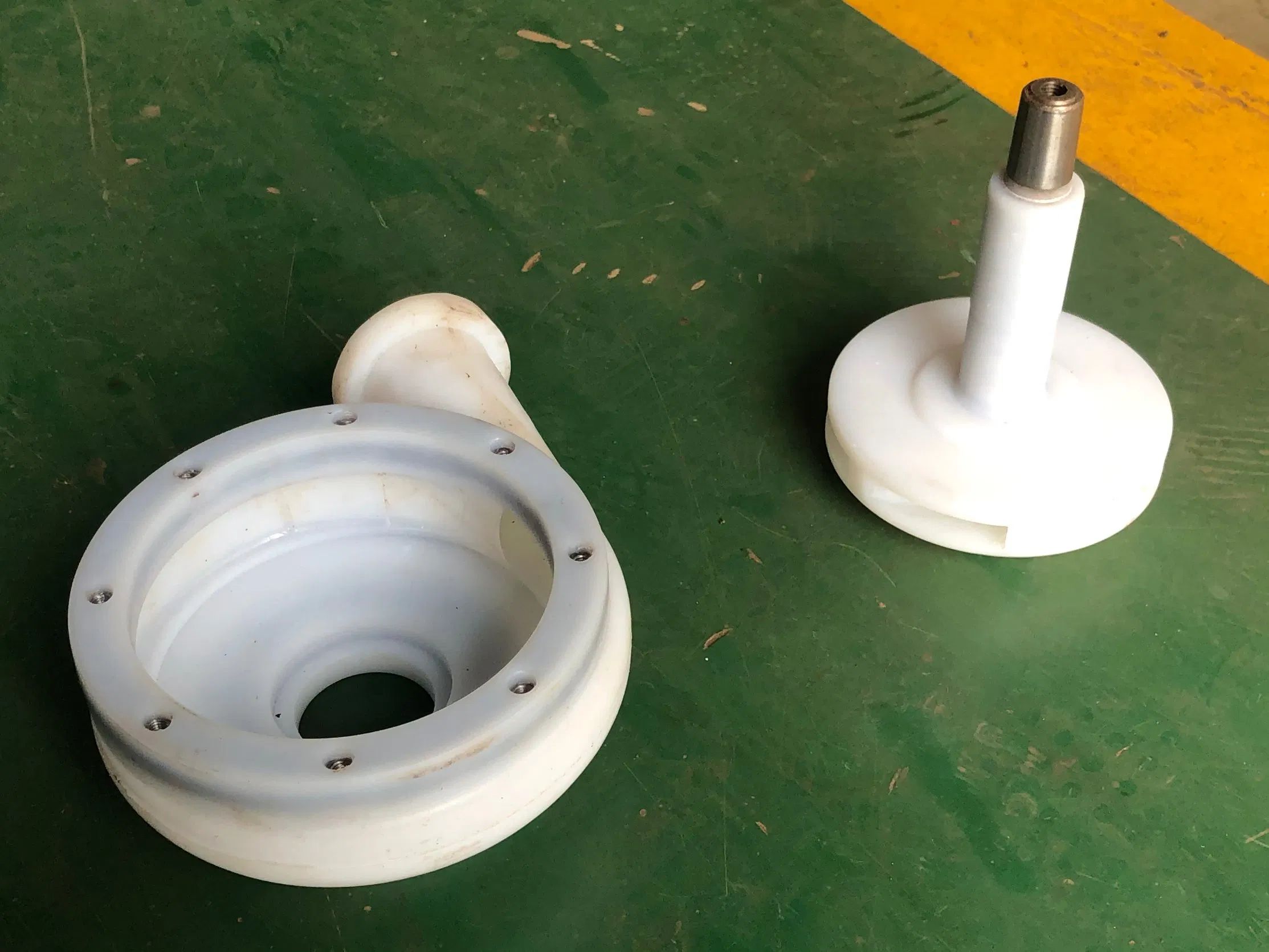

3, impeller: the use of shaft connection method, metal shaft for high quality steel round processing outsourced fluorine plastic high temperature pressing molding, so that the impeller and metal shaft firmly integrated, to ensure that the shaft root and the back of the impeller bear with the rotation of the torque force, so that the medium flow part is plastic alloy.

4, mechanical seal: the use of WB2, ST type without cooling water adjustable single end mechanical seal technology, made of silicon carbide, high purity alumina ceramics, filled with tetflon, graphite and other materials.



Pre-sales service - - detailed introduction, tailored
1. Provide product specifications and related materials to introduce the company's products, functions and uses, as well as manufacturing and testing standards in detail. Determine the product process and supply period;
2. Investigate the use environment and working conditions of the products to understand the performance requirements of the required products, and professional senior service engineers will provide design schemes and consulting services to recommend the most suitable equipment for the actual needs of customers, and resolutely prevent unnecessary loss of profits to customers due to improper selection.
3. For the special requirements of customers, professional senior service engineers are ready to provide high-quality technical support and consultation.
Service in sale -- nip it in the bud
1. Organize production in time after signing the contract, and feedback the production progress at any time.
2. Produce and test according to the contract or standard requirements, and provide quality products.
3. Deliver goods to the place designated by customers on time, and organize goods acceptance timely.
4. Provide the supporting materials and technical data of the goods as required by the customer.
5. Guide installation and commissioning until customer satisfaction.
6. Meet other requirements of the customer during the contract execution at any time.
After-sales service -- proactive and quick response
1. Jiangsu Lorin Technology Co., Ltd. implements lifelong maintenance for products sold. The warranty period is 12 months. If major defects are found during the warranty period, our company will implement the three guarantees system (guarantee repair, guarantee replacement and guarantee return).
2. The company to the sold products are free of charge to guide the installation, debugging, in 24 hours after receiving customer notice to provide technical solutions, Guide customers to install according to the technical data and drawings, provide free maintenance services and free replacement of defective parts within the warranty period, and be responsible for any deficiency or failure caused by defects in design, process or materials, and charge only the cost of maintenance and parts outside the warranty period for improper use by the demanders.
