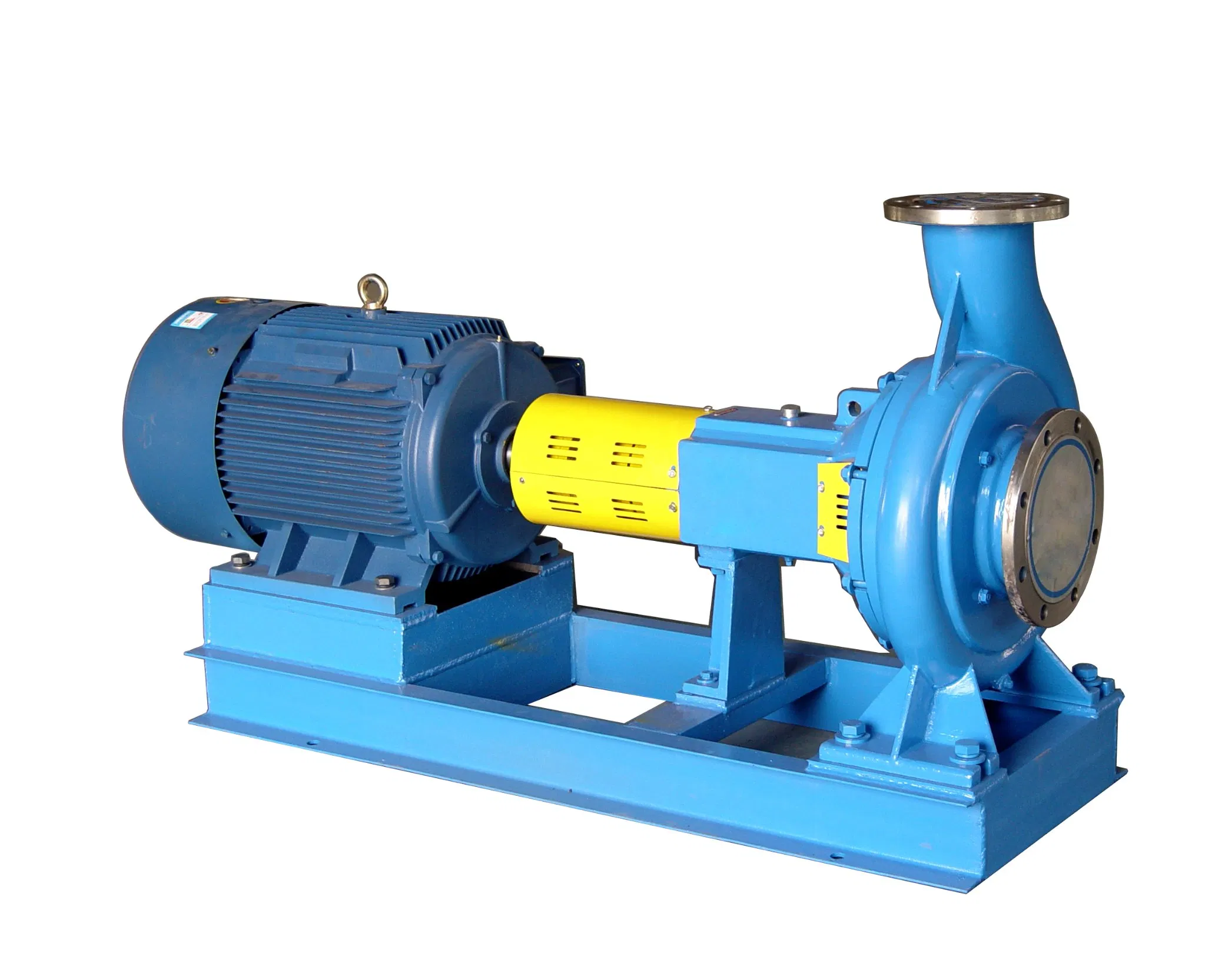

End Suction Pump, Stainless Steel Centrifugal Pump, Oh1 Type Centrifugal Pump Ih125 -100-315

The IH series single stage end suction centrifugal pump have the feature of anti-corrrosive, it could be used to transfer clean water, drink water and wine, chemical liquid, hot liquid, etc. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge. This series pump is widely used in chemical industry, food & drink industry, civil water supply, drug industry, paper & pulp industry, etc.

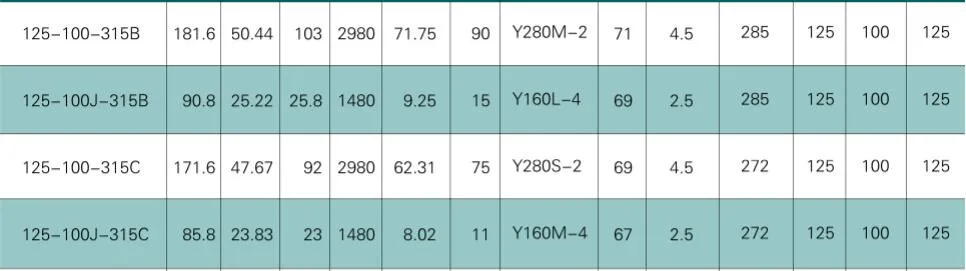

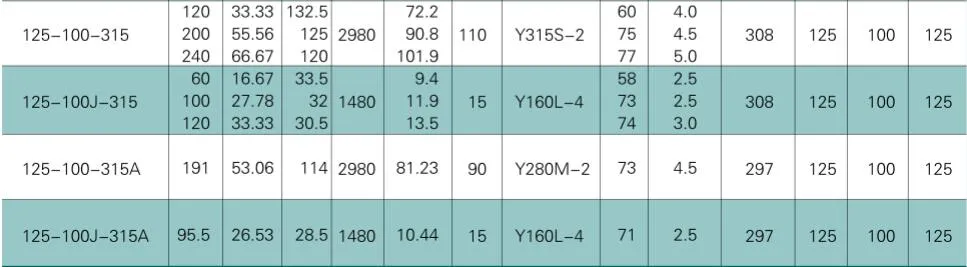

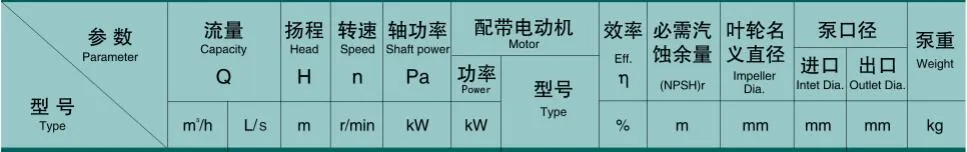

Main Performance Data
Flow: 6 - 480 m3/h
Delivery Head: 5 - 125m
Outlet Dia.: 32 - 150mm
Working Pressure: ≤ 1.5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0ºC - 105ºC

Model Instruction
E.G.: IH100-80-160A
IH: Single stage end suction pump (for clean & corrosive liquid)
100: Inlet diameter is 100mm
80: Outlet diameter is 80mm
160: Rate impeller diameter is 160mm
A(B,C....):  Impeller code






Applications
Industrial water supply and discharge,
Food, wine, drink, drug industry,
Clean & Hot water transferring,
Chemical liquid transferring,
Sea water desalination & transferring,
Factory & residential drink water supply,
Fibre processing industry, Paper & pulp industry
Sugar industry, Heading & Air conditioning,
Enviromental protection engineering.

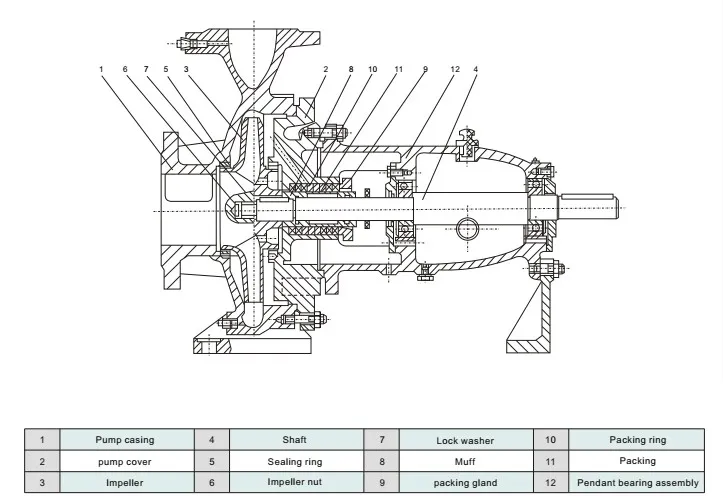

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
