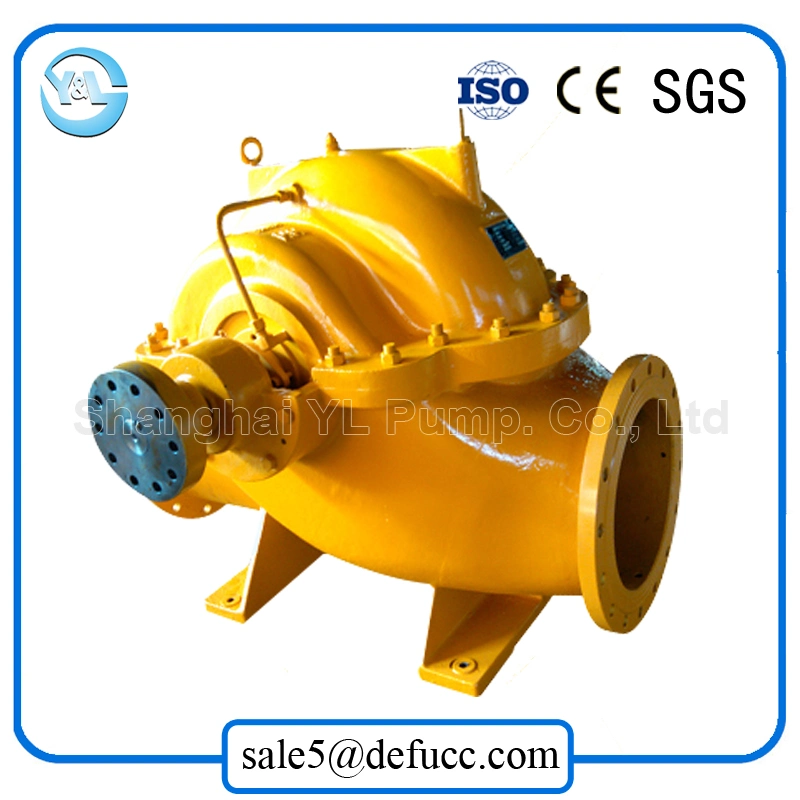

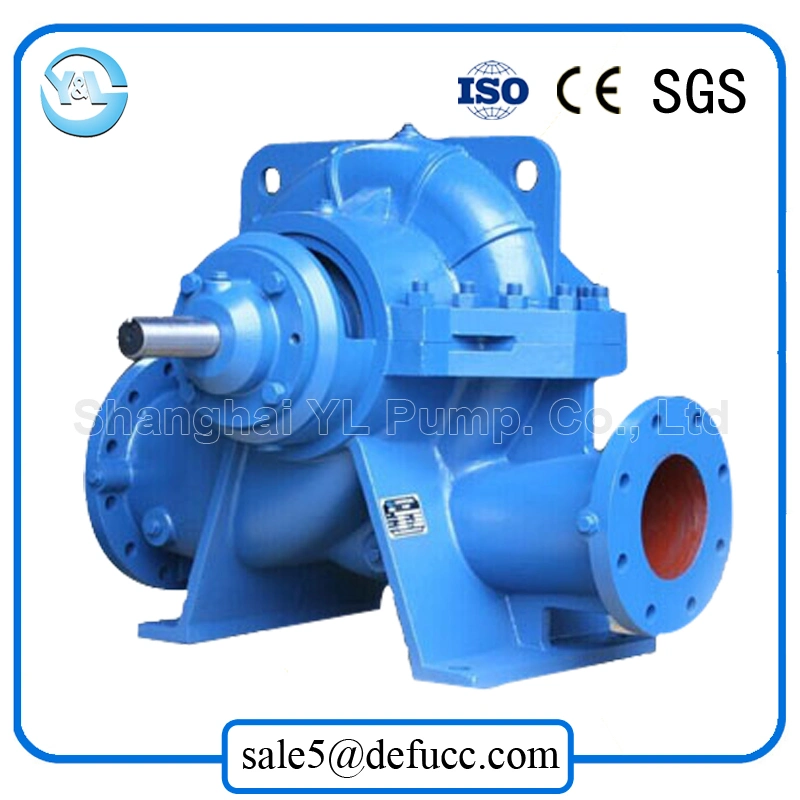

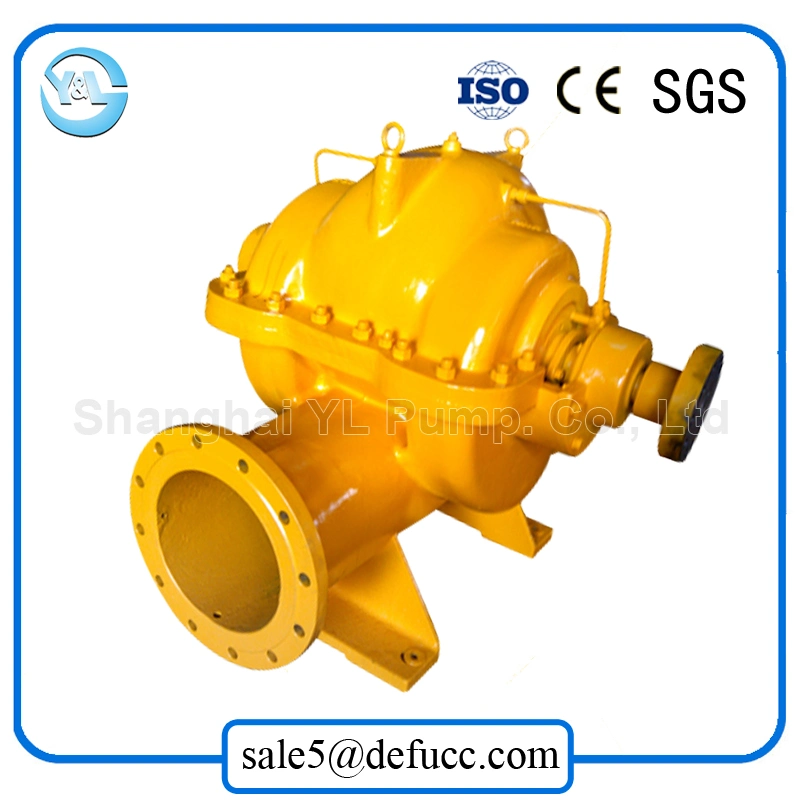

Double Suction Centrifugal Horizontal Split Case Water Pump

Introduction
TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.
Double Suction Centrifugal Horizontal Split Case Water Pump

Model Table

TPOW 100-260 Performance Parameters
TPOW 100-260 Performance Parameters
Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSHr (m)	Impeller's Dia(mm)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	(kw)	Efficiency (%)	NPSHr (m)	Impeller's Dia(mm)
TPOW100-260	30	8.3	21.7	1480	4.3	41.5	1.9	254
	123.5	34.3	17		7	81.5
	170	47.2	12.5		8.1	71.5
TPOW100-260A	28	7.8	19		3.7	39.5		236
	114	31.7	14.5		5.7	79.5
	154	42.8	11.3		6.6	71.5
TPOW100-260B	26	7.2	16.3		3	38		219
	105.9	29.4	12.5		4.6	78
	143	39.7	9.2		5	71.5
TPOW100-260C	25	6.9	13.3		2.5	36		201
	99.3	27.6	11		3.9	76
	131	36.4	7.9		3.9	71.5
TPOW100-260	52	14.4	81	2950	27.6	41.5	7.4	254
	245.5	68.2	68		55.8	81.5
	288	80	60		59.2	79.5
TPOW100-260A	51.5	14.3	69		24.5	39.5		236
	227.7	63.3	58.5		45.6	79.5
	270	75	50		47.4	77.5
TPOW100-260B	50.5	14	60		22	37.5		219
	212.6	59	51		38.1	77.5
	252	70	42		38.2	75.5
TPOW100-260C	49	13.6	51		18.9	36		201
	195.2	54.2	43		30.1	76
	234	65	35		30.1	74

Feature

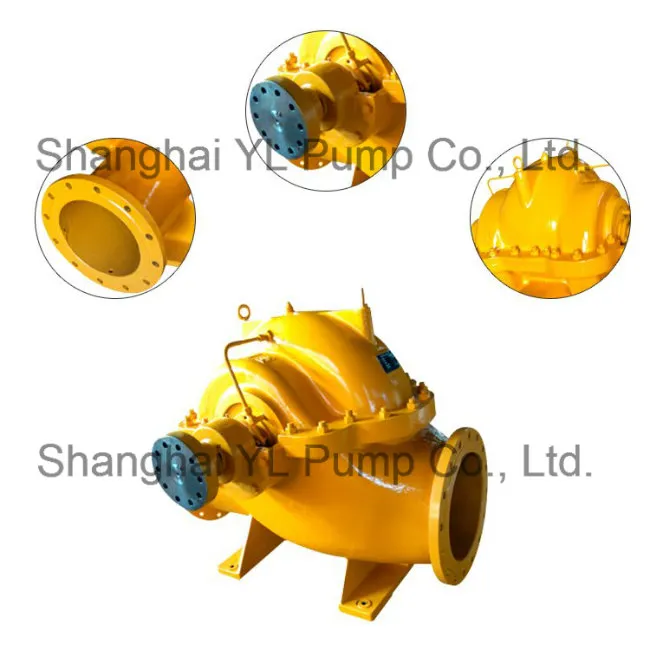

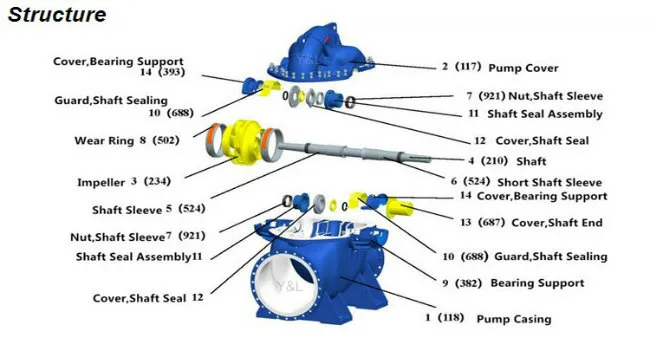

1.This double suction pump can be opened in the middle of the pump body, the suction intake and discharge outlet are placed in the vertical axis of the pump. It has the compact structure, so there is no need to disassemble the pump during maintenance or replace the spare parts.
2.Two impellers of water pump have same diameter, the flow is large. Its symmetric structure will not produce axial force so that the operation of the pump is stable.
3.The intake and discharge outlet are located in the same direction which is helpful to arrange and install the water pump and water pipe.
4.Designed with straight line, this double suction centrifugal pump has double flow channel and symmetric structure.The same rotor can be used for the reverse rotation, so as to change thee installation direction of the motor.

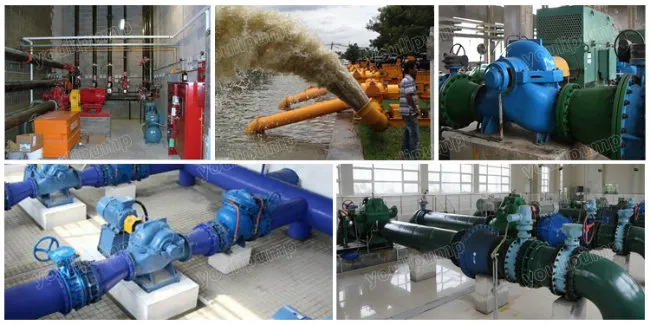

Application
1.Fire Fighting System: fire fighting, fire booster,etc.
2.Irrigation System: agriculture irrigation, farm irrigation and spray irrigation.
3.Draining Water System: rain water, flood, dewatering, etc.
4.Water Supply System.
5.Others: air conditioning circulation, industrial pump.
