Dn100 Chemical Centrifugal Pump Stainless Steel Material
Dn100 Chemical Centrifugal Pump Stainless Steel MaterialProduct DescriptionThe Depump® IH Series chemical centrifugal pump is single stage suction cantilever type centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscosity. It......
Send Inquiry
Product Description
Dn100 Chemical Centrifugal Pump Stainless Steel Material
The Depump® IH Series chemical centrifugal pump is single stage suction cantilever type centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscosity. It featured by wide range of performance, high efficiency, superior standardization, easy maintenance etc.
Specifications
| IH125-100-250B TYPE CHEMICAL PUMP | |
| Model | IH125-100-250B |
| Capacity | 75 m3/h |
| Head | 17 m |
| Power | 7.5KW |
| Speed | 1480 rpm |
| Volts/Frequency | 380V/50HZ/3P |
| Color | As Customer Required |
| Casing material | SS304 |
| Impeller material | SS304 |
| Shaft material | 45# steel |
| Shaft sleeve | SS304 |
| Shaft seal | Gland packing |

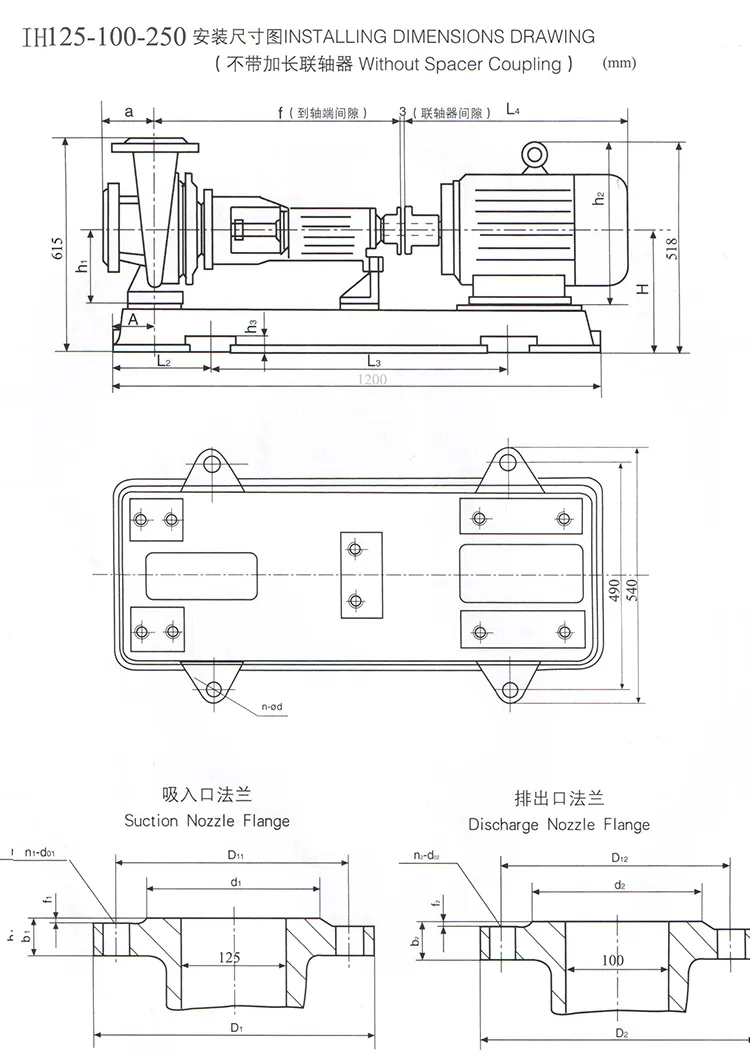

Dimension drawing

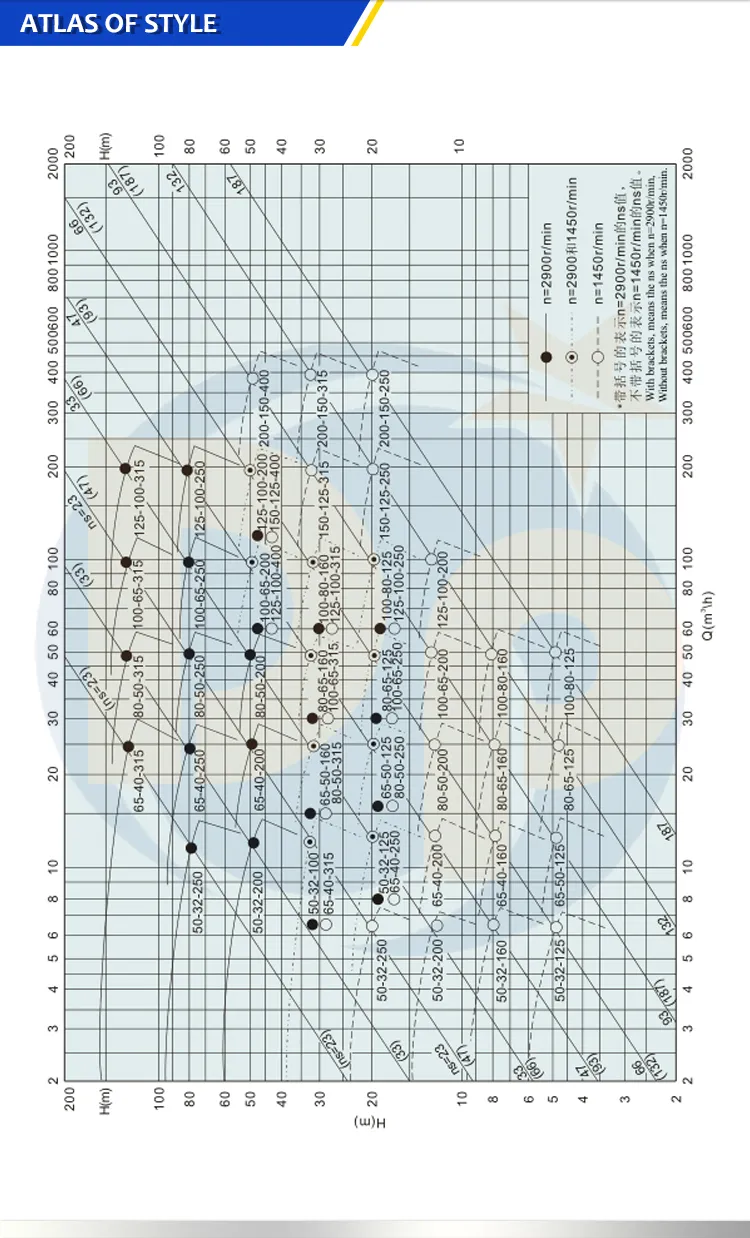

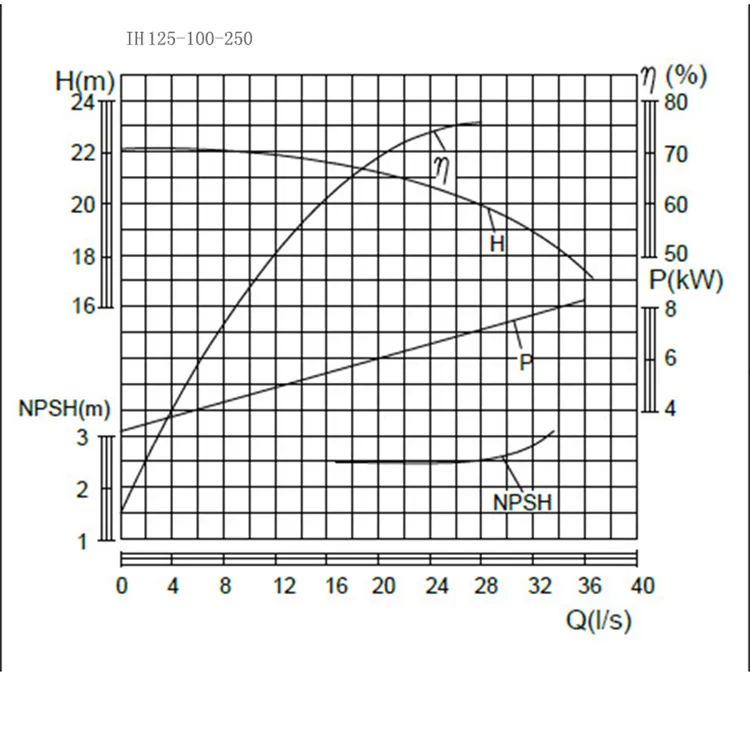

Performance Curve
Features
- High efficiency
- Wide of range of performance
- Convenient maintenance
- High mechanical,chemical and physical
- Durable, low noise, long life bearing
- Premium quality mechanical seal
- Electric or diesel drive
Application
- Chemical industry
- Petroleum
- Metallurgy
- Electric power
- Papermaking
- Food
- Pharmacy
- Synthetic fiber

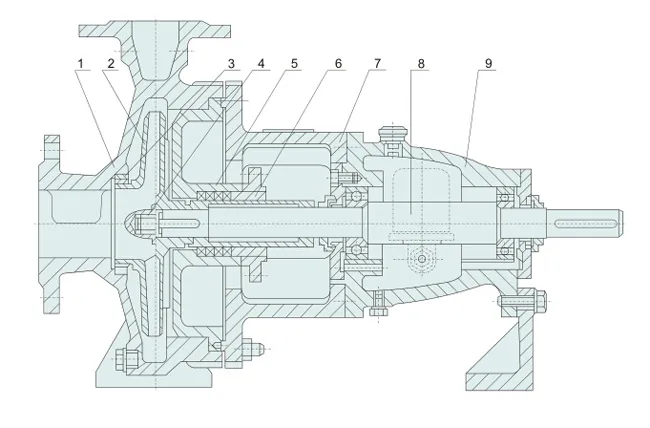

Pump Structure
| Structure List | |||||
| 1 | Pump Casing | 4 | Impeller Nut | 7 | Mid Bracket |
| 2 | Impeller | 5 | Pump Cover | 8 | Shaft |
| 3 | Seal-ring | 6 | Seal Part | 9 | Hanging Stand |
Performance Table
| IH type pump performance | ||||
| Pump type | Capacity(m3/h) | Head (m) | Motor power(kw) | Speed(r/min) |
| IH50-32-125 | 7.5 | 23 | 2.2 | 2900 |
| IH50-32-160 | 7.5 | 34.5 | 3 | 2900 |
| IH50-32-200 | 7.5 | 51.8 | 5.5 | 2900 |
| IH50-32-250 | 7.5 | 82 | 11 | 2900 |
| IH65-50-125 | 15 | 21.3 | 3 | 2900 |
| IH65-50-160 | 15 | 34.2 | 5.5 | 2900 |
| IH65-40-200 | 15 | 53.2 | 11 | 2900 |
| IH65-40-250 | 15 | 81.2 | 15 | 2900 |
| IH65-40-315 | 15 | 126.8 | 30 | 2900 |
| IH80-65-125 | 30 | 23.2 | 5.5 | 2900 |
| IH80-65-160 | 30 | 36 | 11 | 2900 |
| IH80-50-200 | 30 | 55.2 | 15 | 2900 |
| IH80-50-250 | 30 | 84 | 30 | 2900 |
| IH80-50-315 | 30 | 128 | 48 | 2900 |
| IH100-80-125 | 60 | 23.7 | 11 | 2900 |
| IH100-80-160 | 60 | 37 | 15 | 2900 |
| IH100-65-200 | 60 | 56 | 22 | 2900 |
| IH100-65-250 | 60 | 88 | 37 | 2900 |
| IH100-65-315 | 60 | 132 | 75 | 2900 |
| IH125-100-200 | 120 | 61 | 45 | 2900 |
| IH125-100-250 | 120 | 90 | 75 | 2900 |
| IH125-100-315 | 120 | 132.5 | 110 | 2900 |
| IH125-100-400 | 60 | 52 | 30 | 1450 |
| IH150-125-250 | 120 | 24.8 | 30 | 1450 |
| IH150-125-315 | 120 | 36.3 | 30 | 1450 |
| IH150-125-400 | 120 | 57.5 | 55 | 1450 |
| IH200-150-250 | 240 | 23 | 37 | 1450 |
| IH200-150-315 | 240 | 35.6 | 55 | 1450 |
| IH200-150-400 | 240 | 55.8 | 90 | 1450 |
*****More pump models please contact us*****

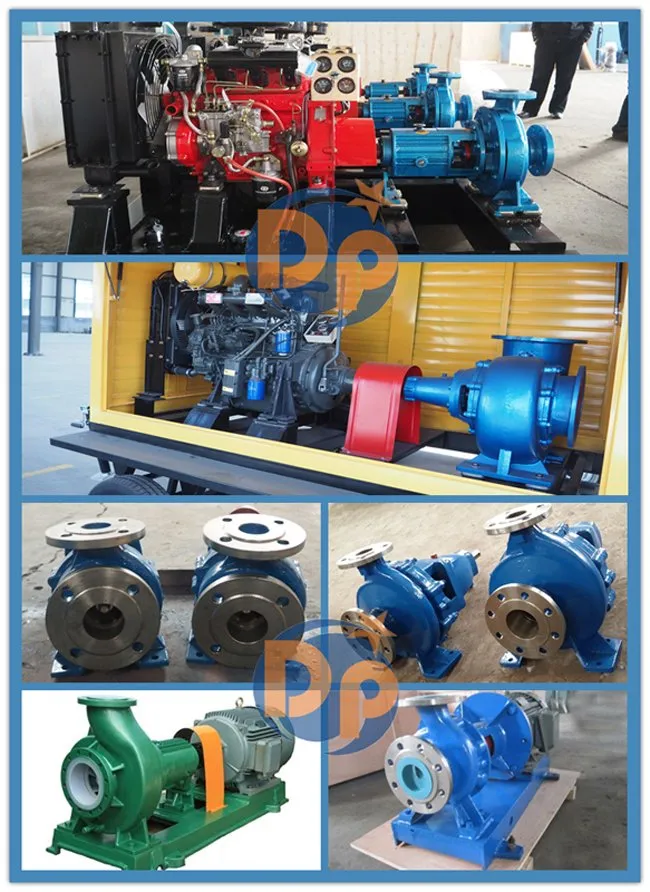

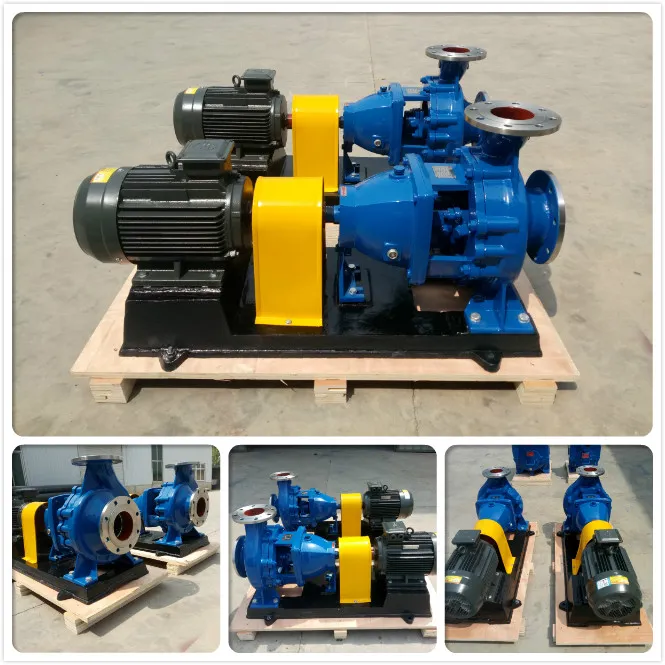

Pump Display
SINCE 1998
20+ years manufacting and exporting pump experience,more options and solutions available for you.
- Advanced equipment
- Professional engineer
- Updated design
- Excellent quality
Our Advantages
- Factory direct price
- Professional knowledge and attentive service
- Strict quality inspection and timely delivery
- Highly value every order, no matter how small it is.
- offer confidentiality agreement "business secret contract"
- Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
FAQ
1. What is your product range?
A: centrifugal pump. Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
2. What's your MOQ, payment term and lead time?
A: MOQ for centrifugal pump is 1set, MOQ for conveyor belt is 100cbm.
Payment Term: T/T, L/C, Western Union, Paypal and Trade Assurance.
Lead time: in general 7 working days for slurry pump, 15working days for water pump.
3. What information should I let you know if I want to get a quotation:
A: Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also provide the pump model you are using now, price will be calculated as per the pump model, if not, we will recommend relevant product for reference.
4. If I put a bigger motor on my pump, will it pump more?
A: No. The amount of water and the pressure (head) that a centrifugal pump process is related to the rotational speed, impeller diameter and size of the impeller vanes.
5. Do you impact the finished product?
A: Yes, each batch of production and finished product will be quality checked strickly before delivering, testing report or video can be sent to clients for reference.
6. How do you ship the finished product?
A: By sea, By air, By international express.
Inquiry of Pump
1. Head: _____meter
2. Capacity: _____m3/h
3. Liquid media: ______
4. PH: _____
5. Concentration: ____%
6. Temperature: _____degree
7. Specific density; ______kg/m3
