China Diesel Engine Centrifugal Split Case/Casing Pump Water for Flood

Product Description

Diesel Engine Centrifugal Split Case/Casing Pump Water For Flood

Specification

TPOW100-320 Performance Parameters
TPOW100-320 Performance Parameters
Pump Model	Capacity		Head(m)	Speed (r/min)	Power	Efficiency (%)	NPSHr (m)	Impeller's Dia(mm)
Pump Model	m3/h	L/S	Head(m)	Speed (r/min)	(kw)	Efficiency (%)	NPSHr (m)	Impeller's Dia(mm)
TPOW100-320(I)	47	13.1	38.1	1480	11.9	41	2.6	325
	185.5	51.5	31.2		19.7	80
	225	62.5	26		21.8	73
TPOW100-320(I)A	42	11.7	33.2		9.4	40.6		301
	172.6	47.9	27		15.9	79.6
	204	56.7	22.5		17.2	72.6
TPOW100-320(I)B	38	10.6	27.9		7.2	40.3		278
	157.5	43.8	22.5		12.2	79.3
	184	51.1	18.5		12.8	72.3
TPOW100-320(I)C	37	10.3	23.2		5.8	40		254
	142.8	39.7	18.5		9.1	79
	165	45.8	16		10	72
TPOW100-320(I)	185	51.4	152	2950	127.6	60	11	325
	368	102.2	123		154.1	80
	432	120	102		171.4	70
TPOW100-320(I)A	140	38.9	135		86.4	59.6		301
	341.6	94.9	106		123.9	79.6
	396	110	89.5		138.7	69.6
TPOW100-320(I)B	100	27.7	117		53.7	59.3		278
	314.8	87.4	90		97.3	79.3
	360	100	80		113.2	69.3
TPOW100-320(I)C	119	33.1	88		48.3	59		254
	245.4	68.2	74		62.6	79
	288	80	64		72.7	69

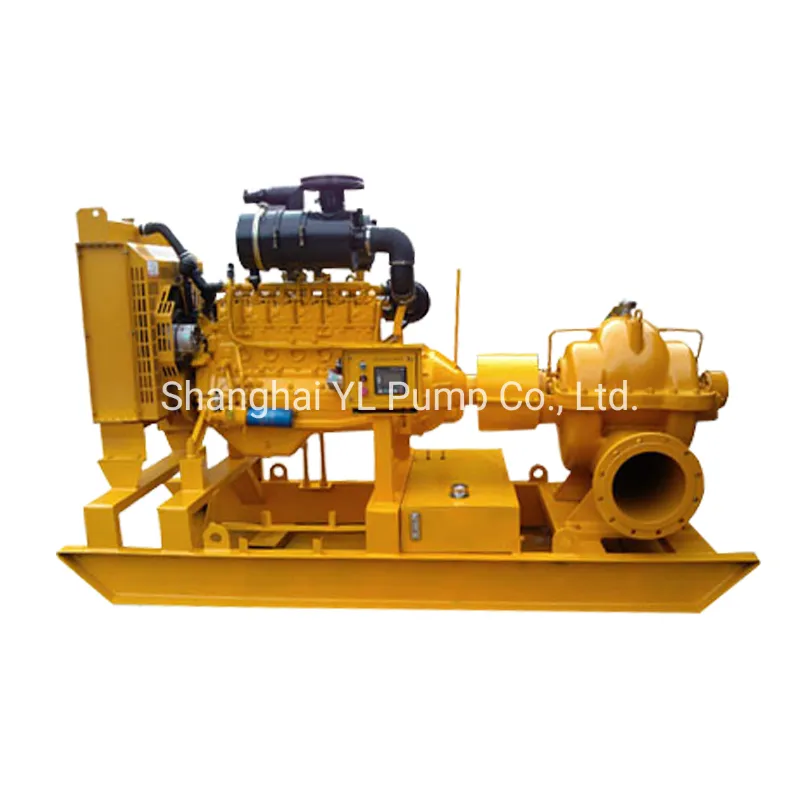

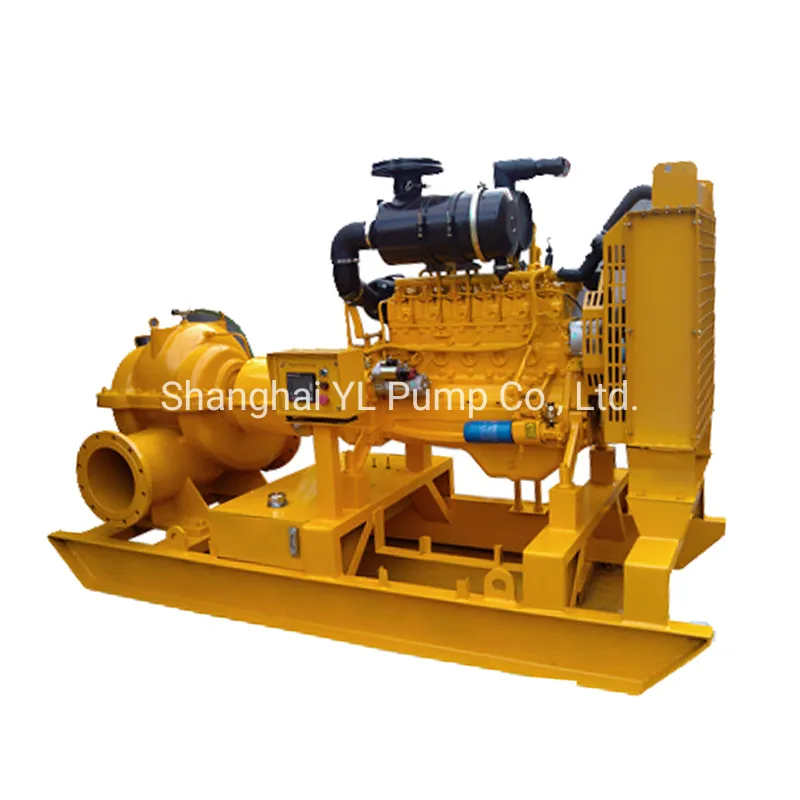

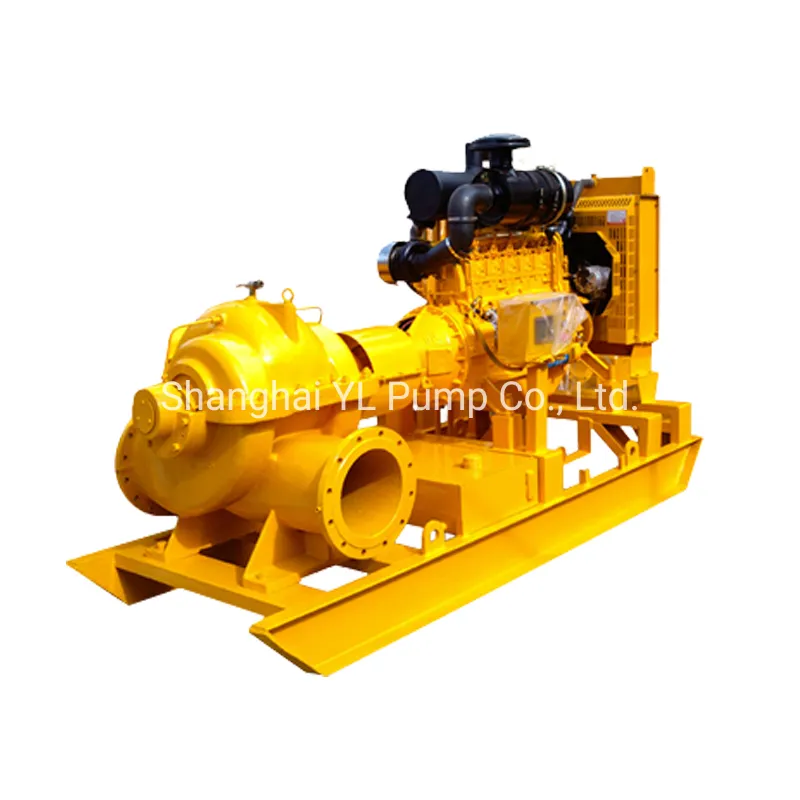

Product Pitcure
The double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water.
Diesel Engine Centrifugal Split Case/Casing Pump Water for Flood

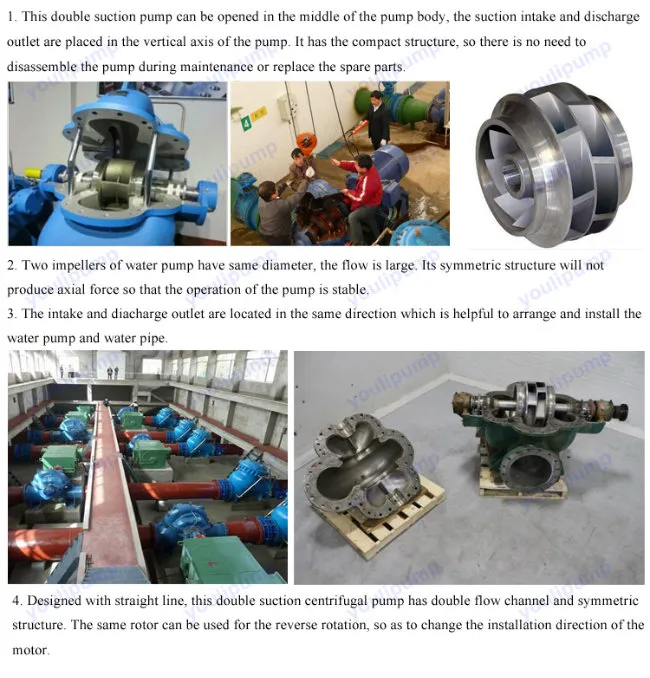

Feature of Double Suction Pump
Diesel Engine Centrifugal Split Case/Casing Pump Water for Flood

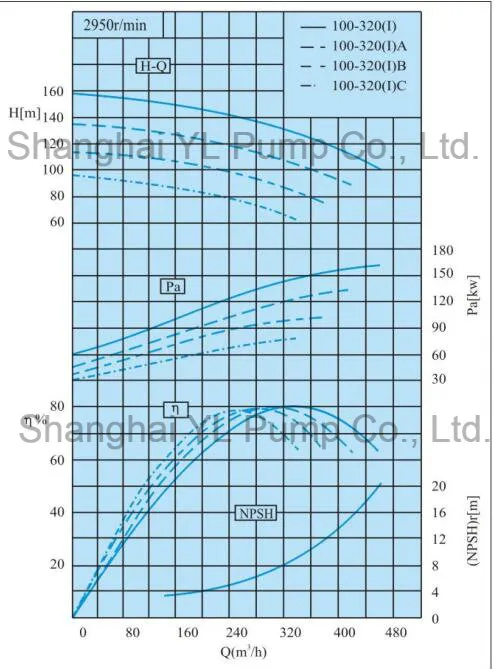

Performance Curve
Diesel Engine Centrifugal Split Case/Casing Pump Water for Flood

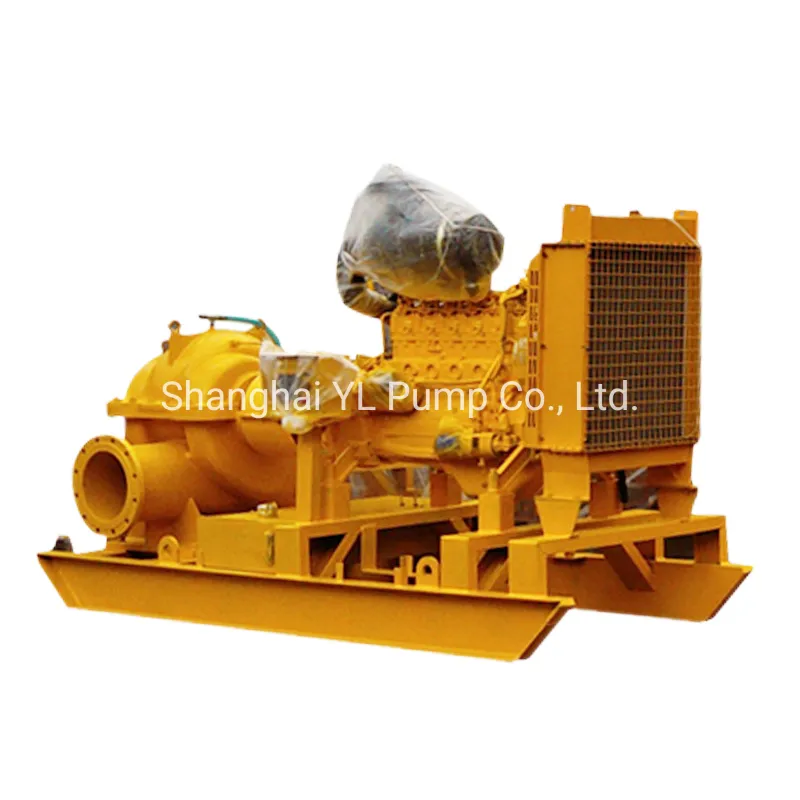

Package Picture
Diesel Engine Centrifugal Split Case/Casing Pump Water for Flood

FAQ:
1Q:How long is the deliver time?
A:For the order in stock, we will deliver goods at once against payment.
For the orders out of stock, the products time is 7 days for bare pump, 25 days for electric pump set or diesel engine pump set, the deliver time is base on the shipping date and your order by sea
2.Q:What about the package?
A:Standard Plywood Case
3.Q:How is the pump delivered to us?
A:For small order will be delivered by internation express, like DHL,TNT,FEDEX,UPS.
For large order, it will be delivered by air, sea, vehicle or multi- modal transport.
4.Q:How long is the warranty?
A:According to the internation standards, pump is standard operation is 1 year, 3 months for spare parts.

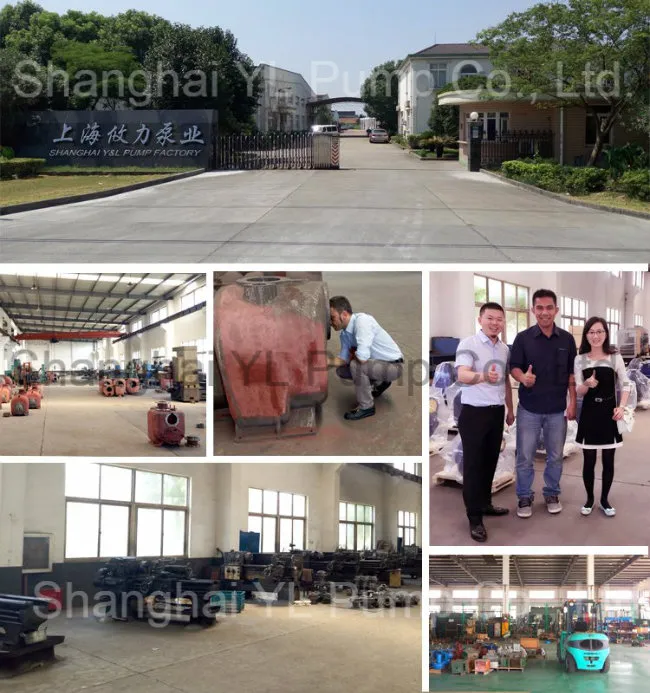

About Us
Shanghai Y&L Pump Co.,Ltd was found in 2002, which is located in Shanghai. We producing water pumps for more than 10 years, especially self priming pump, diesel engine pump and diaphragm pump. We have an office in Wenzhou which called Wenzhuo Defu Machinery Co.,Ltd.
Diesel Engine Centrifugal Split Case/Casing Pump Water for Flood
