Chimp Brand Centrifugal Pump Mhf Series (MHF5A)
PUMPCast iron pump body and supportStainless steel/Brass impellerMax. Liquid temperature: +40ºCMax.Suction:+8m MOTORInsulation class: B or FProtection class: IPX4Max. ambient temperature: +40ºCCooling: External ventilation PUMP INSTALLATION AND APPLICATIONSIt can be used to transfe......
Send Inquiry
Product Description
PUMP
Cast iron pump body and support
Stainless steel/Brass impeller
Max. Liquid temperature: +40ºC
Max.Suction:+8m
MOTOR
Insulation class: B or F
Protection class: IPX4
Max. ambient temperature: +40ºC
Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for industrial use and urban water supply, garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure bossting for cold and hot water, and supporting equipment etc
| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Discharge plug | 9 | "O" ring | 17 | Rotor | 25 | Cable presser |
| 2 | "O" ring | 10 | Pump casing cover | 18 | Split ring | 26 | Stand pin |
| 3 | Charge | 11 | Drops guard | 19 | Bolt | 27 | Stand |
| 4 | Pump casing | 12 | Bolt | 20 | Terminal cover | 28 | Fairlead |
| 5 | Nut | 13 | Pump support | 21 | Terminal board | 29 | Driving cap |
| 6 | Impeller | 14 | Bolt | 22 | Casing with wound stator | 30 | Bolt |
| 7 | Snap ring | 15 | Bearing | 23 | Capacitor | 31 | Fan |
| 8 | Mechanical Seal | 16 | Key | 24 | Screw | 32 | Fan cover |

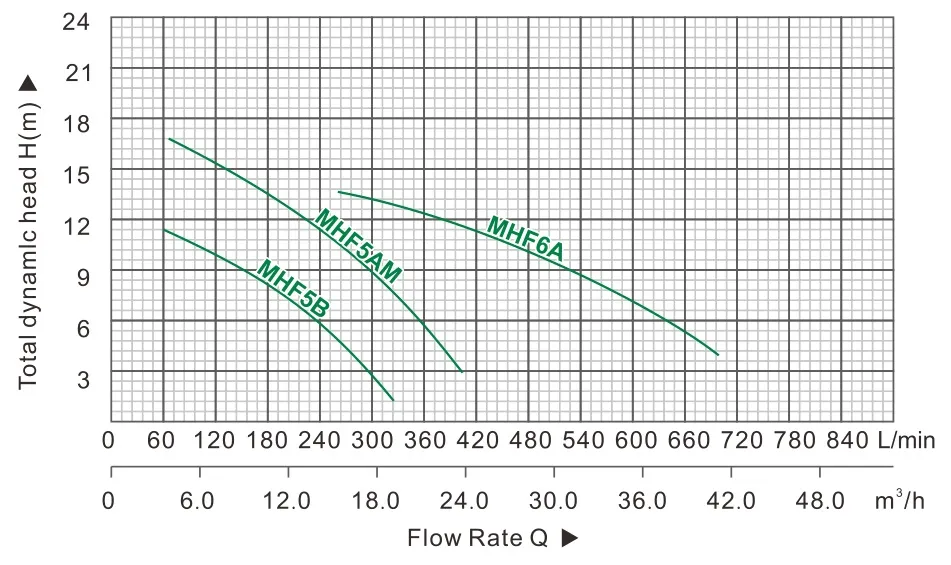

PERFORMANCE CHART AT N=2850RPM:
PRODUCTS TECHNIQUE
| MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING DIMENSION(CM) | |
| kW | HP | (l/min) | (M) | (M) | (inch) | (kgs) | ||
| MHF5B | 0.75 | 1 | 350 | 13.5 | 8 | 2"x 2" | 15 | 37.5*21.5*28.5 |
| MHF5A | 1.1 | 1.5 | 400 | 15 | 8 | 2"x 2" | 19 | 41*24*29 |
| MHF5AM | 1.5 | 2 | 450 | 18 | 8 | 2"x 2" | 21 | 41*24*29 |
| MHF6C | 1.1 | 1.5 | 500 | 14 | 8 | 3"x 3" | 25 | 42.5*26*32.5 |
| MHF6B | 1.5 | 2 | 750 | 14 | 8 | 3"x 3" | 28.5 | 42.5*26*32.5 |
| MHF6A | 2.2 | 3 | 800 | 15 | 8 | 3"x 3" | 31 | 42.5*26*32.5 |
| MHF6AR | 3 | 4 | 900 | 12 | 8 | 4"x 4" | 37.5 | 48*26*32.5 |
| MHF6AF-A | 1.5 | 2 | 450 | 15 | 8 | 3"x 3" | 38 | 44*26*33 |
| MHF6AF-B | 2.2 | 3 | 850 | 15 | 8 | 3"x 3" | 41 | 44*26*33 |

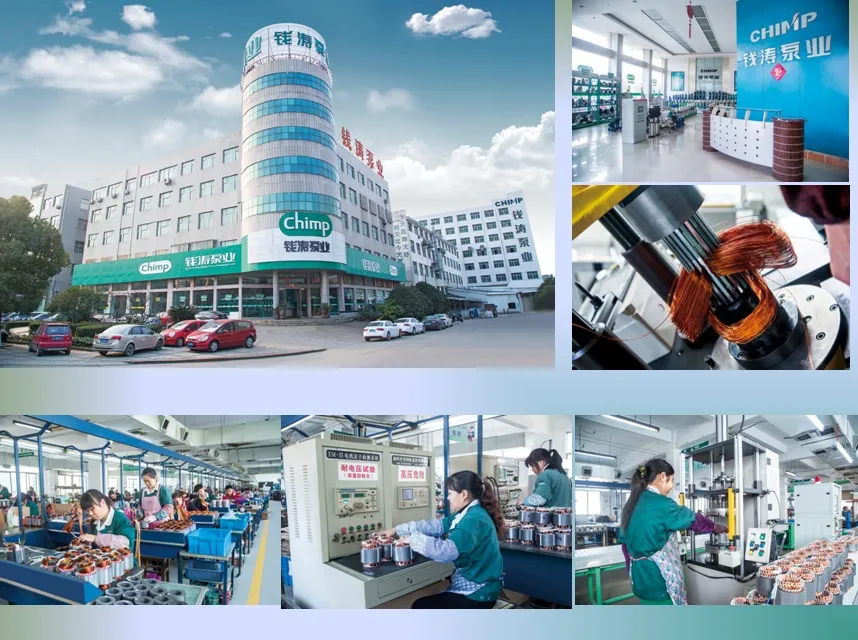

Company profile
Manufacturer: TAIZHOU QIANTAO PUMPS CO., LTD.
Location: Dayangcheng Industrial Area, Daxi Town, Wenling, Zhejiang
Trademark: CHIMP
2016 Wenling Top 100 enterprises ranked: TOP67
2015 Wenling Top 100 enterprises ranked: TOP87
History: More than 25 years experience of manufacturing pumps and motors;
Scale: Cover an area of 70000 square meters (still in the expansion) and around 350 employees;
Technology: Three groups of professional technical engineers and strong R& D team; five groups of independent professional assembly line;
Management: Scientific ERP management and strict quality control system;
Equipments: Automatic wiring machine, Automatic paint spraying equipment, CNC precision automatic lathe, Electrophoresis line;
Innovation: Continuously diversity products range to satisfy customers' needs;
Production capacity: 80000 pcs/month
Marketing network: Asia,Europe, Africa and America
Certificates: CE, ISO9001, RoHs
Marketing models: Both Exports and domestic sales
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.
Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
