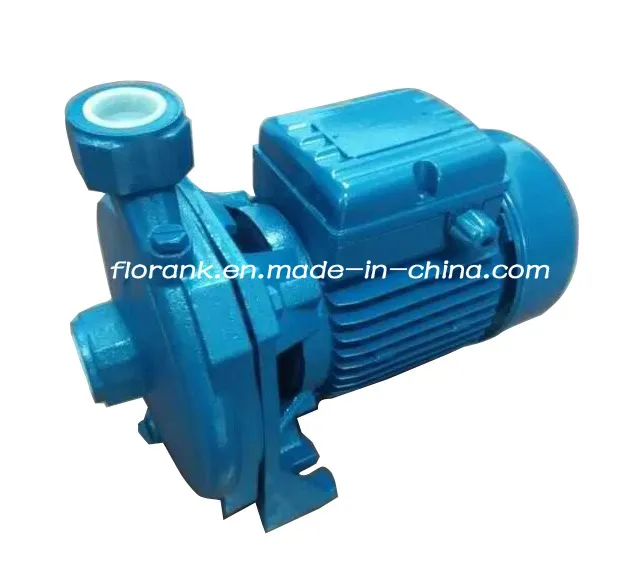

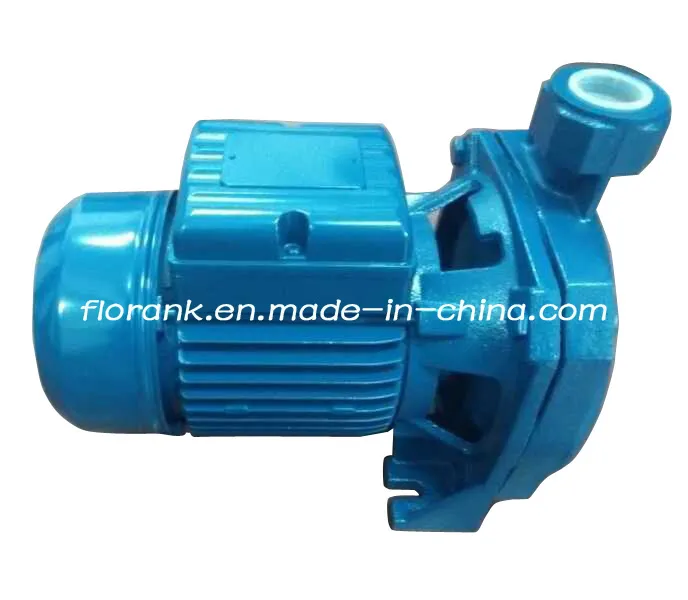

Centrifugal Pump
Centrifugal pump type with wave shape motor)looks fashion ,good quality!Working ConditionSuction lift up to 8mFluid temperature up to +40º CMax ambient temperature +40º CApplication&FeatureThese pumps are for clean water without abrasive particles and the fluids which are not c......
Send Inquiry
Product Description
Centrifugal pump type with wave shape motor)
looks fashion ,good quality!
Working Condition
Suction lift up to 8m
Fluid temperature up to +40º C
Max ambient temperature +40º C
Application&Feature
These pumps are for clean water without abrasive particles and the fluids which are not chemically aggressive to the
Pump componets they are used for domestic appliance and for the automatic
Distribution of water from surge tanks, for watering gardens and for boosting insufficent mains water pressure
Component Material
Pump body: Cast iron
Motor bracket: Aluminium
Impeller: Brass
Motor shaft: SS420 or CS45
Mechanical seal: Ceramic and graphite
Motor Information
Single phase two-pole induction motor
220V/50Hz 220V/60Hz 110V/60Hz
Thermal protector, continuous duty.
Insulation calss: B
Protection: IP44
looks fashion ,good quality!
Working Condition
Suction lift up to 8m
Fluid temperature up to +40º C
Max ambient temperature +40º C
Application&Feature
These pumps are for clean water without abrasive particles and the fluids which are not chemically aggressive to the
Pump componets they are used for domestic appliance and for the automatic
Distribution of water from surge tanks, for watering gardens and for boosting insufficent mains water pressure
Component Material
Pump body: Cast iron
Motor bracket: Aluminium
Impeller: Brass
Motor shaft: SS420 or CS45
Mechanical seal: Ceramic and graphite
Motor Information
Single phase two-pole induction motor
220V/50Hz 220V/60Hz 110V/60Hz
Thermal protector, continuous duty.
Insulation calss: B
Protection: IP44
| Model | Power | Inlet | Outlet | Max Flow | Max Head | Max Suction | Dim | G.W | |
| single phase | Kw | Hp | inch | inch | m3/h | m | m | mm | kg |
| CPm130 | 0.37 | 0.5 | 1 | 1 | 5.5 | 22 | 8 | 280x185x230 | 9 |
| CPm146 | 0.55 | 0.75 | 1 | 1 | 6 | 26 | 8 | 340x210x265 | 12 |
| CPm158 | 0.75 | 1 | 1 | 1 | 6.5 | 32 | 8 | 340x210x265 | 13 |
| CPm170 | 1.1 | 1.5 | 1 | 1 | 7 | 46 | 8 | 390x240x290 | 22 |
| CPm190 | 1.5 | 2 | 1 | 1 | 7 | 52 | 8 | 390x260x320 | 25 |
| CPm200 | 2.2 | 3 | 1 | 1 | 8 | 60 | 8 | 455x280x340 | 33 |
