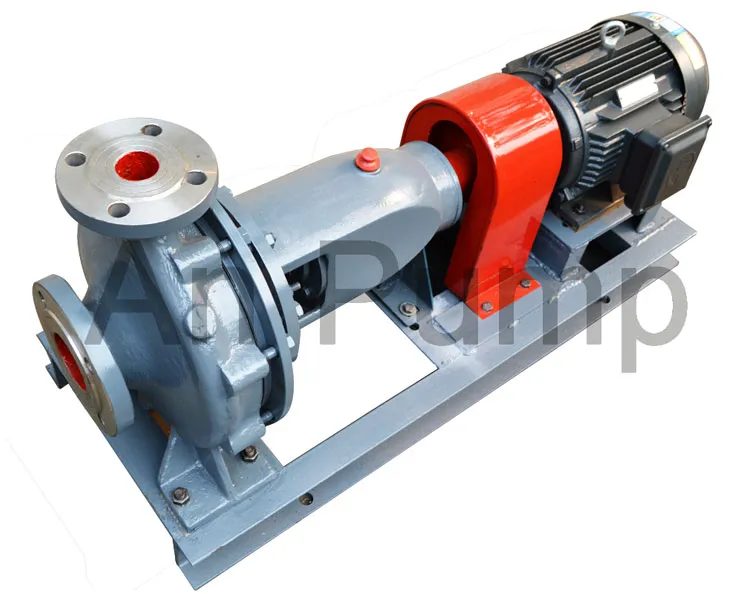

ANSI Standard Single Stage Stainless Steel Centrifugal Transfer Chemical Pump
Stainless Steel Chemical Acid Water Pump QIH Description of centrifugal chemical process pumpQIH Chemical Pump IntroductionQIH chemicalpump is stainless steel pump.And the stainless steel pump is the description ofthe pump's wet parts materials,include the casing, impeller and the front plate.QI......
Send Inquiry
Product Description
QIH Chemical Pump Introduction
QIH chemicalpump is stainless steel pump.And the stainless steel pump is the description ofthe pump's wet parts materials,include the casing, impeller and the front plate.
QIH chemical pump is designed for transferring chemical liquids andcorrosiveliquids.Mainly used in petrochemical industry, metallurgy, light industry, printing dyeing, pharmaceutics, environment protect, sea water desalt, paper making, food industry etc.
QIH Chemical Pump Performance Data Sheet
| QIH Chemical Pump Performance | |||||
| Pump Type | Capacity (m3/h) | Head (m) | Speed (rpm) | Motor Power(kw) | Eff (%) |
| QIH 50 | 3-14 | 3.7-82 | 1450-2900 | 0.55-11 | 21.5-60 |
| QIH 65 | 6-30 | 3.8-115.4 | 1450-2900 | 0.55-30 | 25-75 |
| QIH 80 | 12-60 | 3.6-128 | 1450-2900 | 0.55-37 | 39-75 |
| QIH100 | 24.3-120 | 3.7-133 | 1450-2900 | 1.1-75 | 51-78 |
| QIH125 | 51.4-240 | 8.4-133 | 1450-2900 | 4-110 | 52-81 |
| QIH150 | 104-240 | 13-53 | 1450 | 11-45 | 62-81 |
| QIH200 | 194-460 | 13.1-55 | 1450 | 22-90 | 65.5-82 |
| QIH250 | 320-760 | 22.6-52 | 1480 | 75-132 | 67.5-84.5 |
| QIH 300 | 530-1200 | 21.9-38 | 1480 | 90-132 | 61.66-107.6 |
QIH Chemical PumpPerformance Chart
QIH Chemical Pump Feature
1. Good corrosionresistance;
2. Simple structureand convenient maintain;
3. High operationefficiency ;
4. Energy conservationand environmental protection.
The QIH chemical pump instainless steel have very good performance in transferringchemical liquids, sea water or some other liquidwith corrosive problem. But it is not good at wear resistant ,because of the softmaterial (stainless steel).
When there are solids in themedium pumped, the stainless steel pumps are easy to wear out ,especially notsuitable in the mining processing.
QIH Chemical Pump Material
There are differentmaterial for the pump parts for different liquids pumped:
| No. | Country | Stainless Steel 304 | Stainless Steel 316 |
| 1 | China | 0Cr18Ni9 | 0Cr17Ni12Mo2 |
| 2 | US | SS304 | SS316 |
| 3 | Japan | SUS304 | SUS316 |
| 4 | Germany | X5CrNi18.9 | X5CrNiMo18.10 |
| 5 | France | Z6CN18.09 | Z6CND17.12 |
| 6 | ISO | 11 | 20,20a |
We could alsodo all kinds of special materials like bronze (brass), duplex stainless steelpump and parts for special application.
QIH ChemicalPump Structure
Performance parameters for QIH centrifugal chemical pump
| PumpType | Capacity (m3/h) | Head (m) | MotorPower(kw) |
| QI50 | 3.1 - 14 | 3.7-82 | 0.55-11 |
| QI65 | 6.1 - 30 | 3.8-115.4 | 0.55-30 |
| QI80 | 12 - 60 | 3.6-128 | 0.55-37 |
| QI100 | 24.3 - 120 | 3.7-133 | 1.1-75 |
| QI125 | 51.4 - 240 | 8.4-133 | 4-110 |
| QI150 | 104 - 240 | 13-53 | 11-45 |
| QI200 | 194-460 | 13.1-55 | 22-90 |
| QI250 | 320-760 | 22.6-52 | 75-132 |
| QI300 | 530-1200 | 21.9-38 | 90-132 |
Specifications for QIH centrifugal chemical pump
| Type | QIH, QI |
| Capacity (m3/h) | 3.5-1200 |
| Head (m) | 3.7-128 |
| Speed (r/min) | 1450-2900 |
| NPSHr (%) | 2.0-7.5 |
| Eff. (%) | 86-95 |
| Weight (kg) | 33-1720 |
| Dia Inlet (mm) | 50-300 |
| Dia Outlet (mm) | 32-250 |
FAQ
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent inItaly, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
