61m Head 830m3/H Flow Cantilevered Horizontal Mining Sludge Slurry Pumps

Product Description

Horizontal Sand Slurry Gravel Pump for Heavy Duty Dredger Machinery

Shijiazhuang Ruite Pump Co.,Ltd.
One of the high-enterprises integrating research, design, production and sales system, produces slurry pump, desulfurization pump and dredge pump. Founded in 2003,
Ruite pump is located in Gaocheng district, Shijiazhuang city, with more than 30000 square meters' covering area and 50 millions' registered capital.

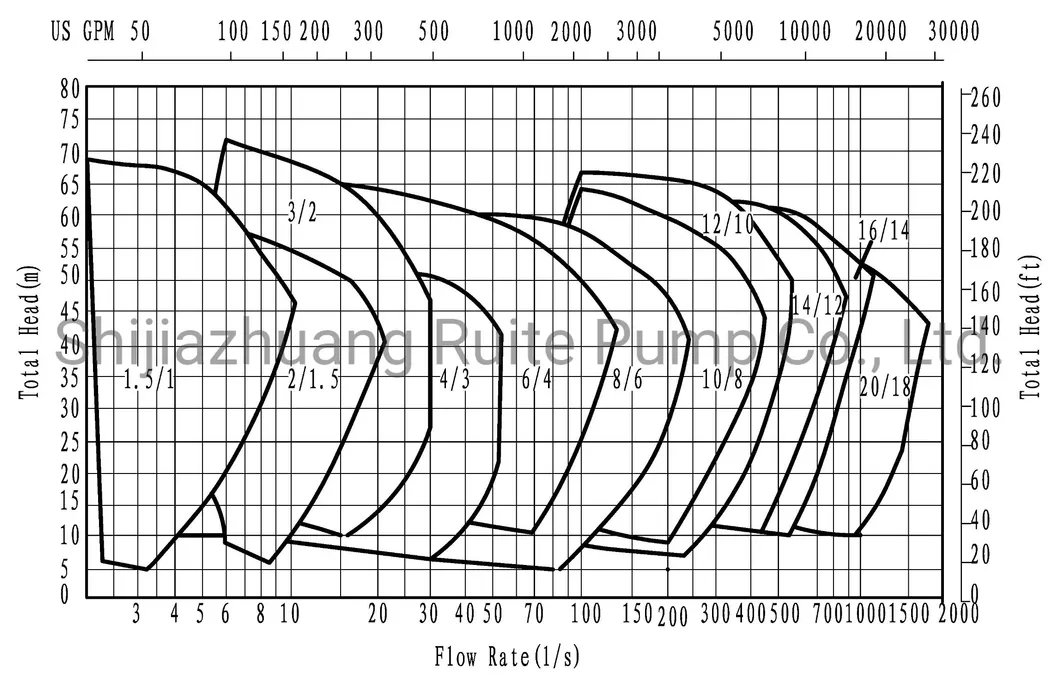

TH SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET
MODEL	MAX	MATERIAL		CAPACITY		HEAD	SPEED	MAX	NPSH
	POWER	LINER	IMPELLER	m3/h	l/s	H(m)	n(r/min)	η%	m
	KW
1.5/1B-TH	15	M	M	12~28	3.5~8	6~68	1200~3800	40	2~4
		RU	RU	10~25	3~7	7~52	1400~3400	35	2~4
2/1.5B-TH	15	M	M	32~12	9~20	6~58	1200~3200	45	3.5~8
		RU	RU	25~54	7~15	5~41	1000~2600	50	2.5~5
3/2C-TH	30	M	M	39~86	11~24	12~64	1300~2700	55	4~6
		RU	RU	36~75	10~21	13~39	1300~2100	55	2~4
4/3C-TH	30	M	M	86~198	24~25	9~52	1000~2200	71	4~6
4/3D-TH	60
4/3C-TH	30	RU	RU	79~180	22~50	5~34	800~1800	59	3~5
4/3D-TH	60
6/4D-TH	60	M	M	162~360	45~100	12~56	800~1550	65	5~8
6/4E-TH	120
6/4D-TH	60	RU	RU	144~324	40~90	12~45	800~1350	65	3~5
6/4E-TH	120
8/6E-TH	120	M	M	360~828	100~230	10~61	500~1140	72	2~9
8/6R-TH	300
8/6E-TH	120	RU	RU	324~720	90~200	7~49	400~1000	65	5~10
8/6R-TH	300
10/8ST-TH	560	M	M	612~1368	170~380	11~61	400~850	71	4~10
		RU	RU	540~1188	150~330	12~50	400~750	75	4~12
12/10ST-TH	560	M	M	936~1980	260~550	7~68	300~800	82	6
		M	RU	720~1620	200~450	7~45	300~650	80	2.5~7.5
14/12ST-TH	560	M	M	1260~2772	350~770	13~63	300~600	77	3~10
		RU	RU	1152~2520	320~700	13~44	300~500	79	3~8
16/14TU-TH	1200	M	M	1368~3060	380~850	11~63	250~550	79	4~10
20/18TU-TH	1200	M	M	2520~5400	700~1500	13~57	200~400	85	5~10

Features

1. Excellent performance
High efficiency and low noise with powerful motor and reasonable airframe design.

2. Economical and practical
Energy-saving design and reasonable price help you improve the quality of life.

3. Simple and convenient setup and assembly
The new process design makes assembly easy and maintenance convenient.

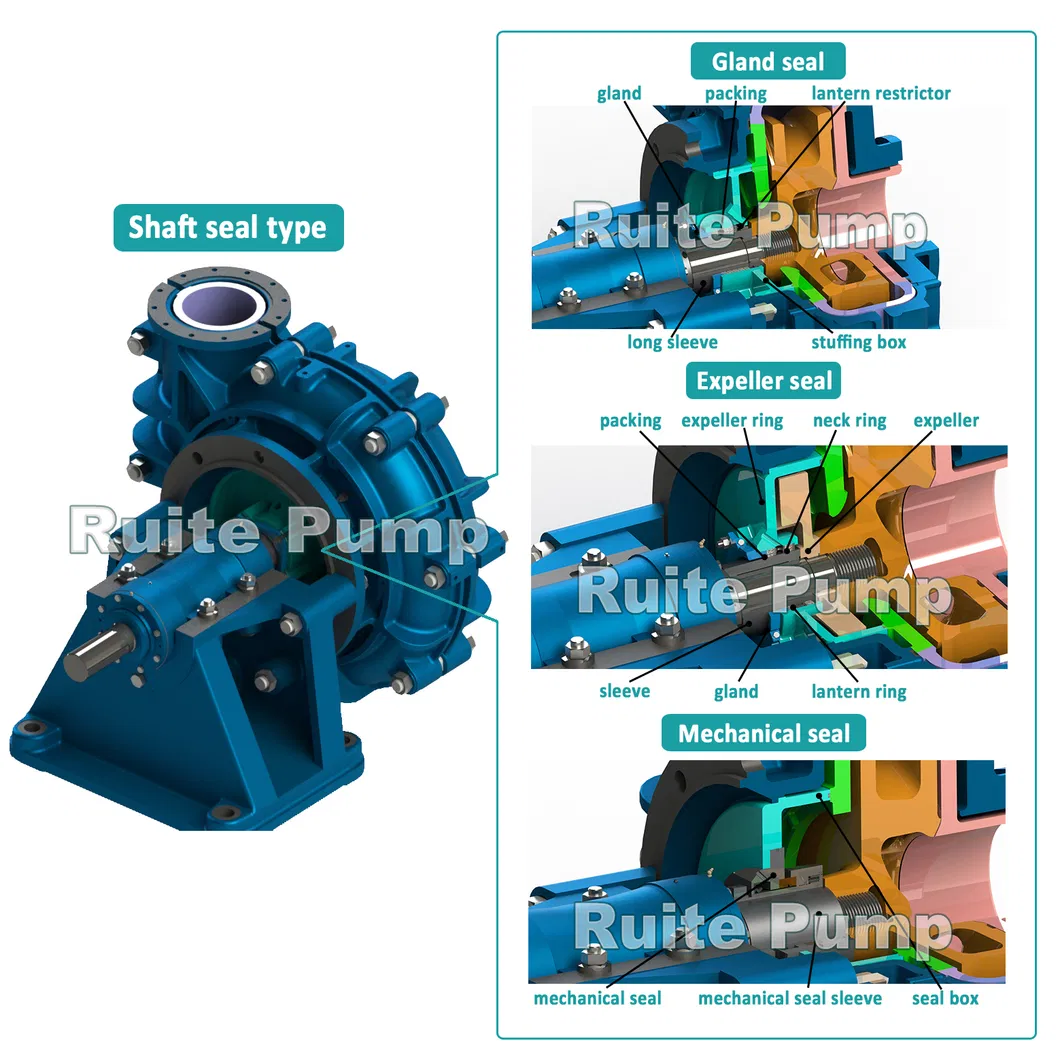

4. Good seal performance
Double seal arrangement provides positive seal of bearings against contamination.

5. Low maintenance
The motor has long practical life, simple operation and convenient maintenance.
61m Head 830m3/H Flow Cantilevered Horizontal Mining Sludge Slurry Pumps

61m Head 830m3/H Flow Cantilevered Horizontal Mining Sludge Slurry Pumps

Product Name	Heavy duty slurry pump
Material	High chrome alloy Cr28, A05, A07
Standard	ISO9001, ASME, ANSI
Flow rate	3.6m3-1620m3/h
Head	6-134m
Voltage	380V,415V,460V or as customer required
Working temperaturer	20ºC to 90ºC
Application	Heavy duty mining process. Heavy refuse removal. Cyclone feeds Coal preparation plant Pulp&paper. Dredging.Mineral processing. Abrasive slurry.Tailings. High density slurries.Mill grinding. Ash handling. Slurry feed system. Industrial processing

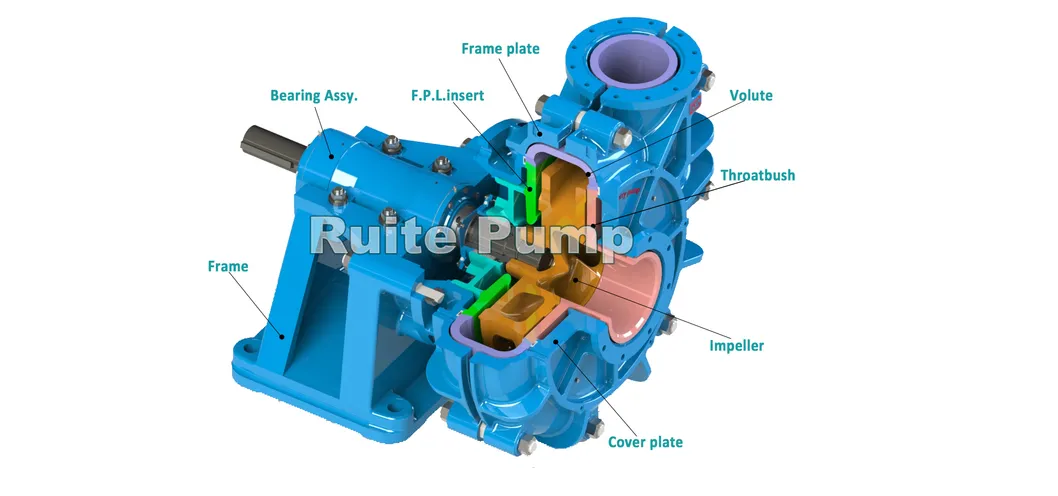

TH slurry pumps are heavy duty horizontal slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.
TH slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 5400 m3/h and heads up to 125 meters for high head models.

61m Head 830m3/H Flow Cantilevered Horizontal Mining Sludge Slurry Pumps

China dredging pump centrifugal mining gold copper iron mine slurry pump made in china RT

A modern Source manufacturer focused on pump research, production, sales and service. liquids loaded in China,
We can produce 40 tons of high chromium alloy per day, which can reach 12 thousand tons per year.
all kinds of material, especially the newly developed ceramic alloy material, the service life of which is 50% longer than A05, which is approved by real sounds. desulferation, and dredging pumps.
20 years experience in production and casting
We have our own foundry.
We have a professional technical team
ISO 9001 certificated
SGS
OEM&ODM accepted ,can do mapping on site .
