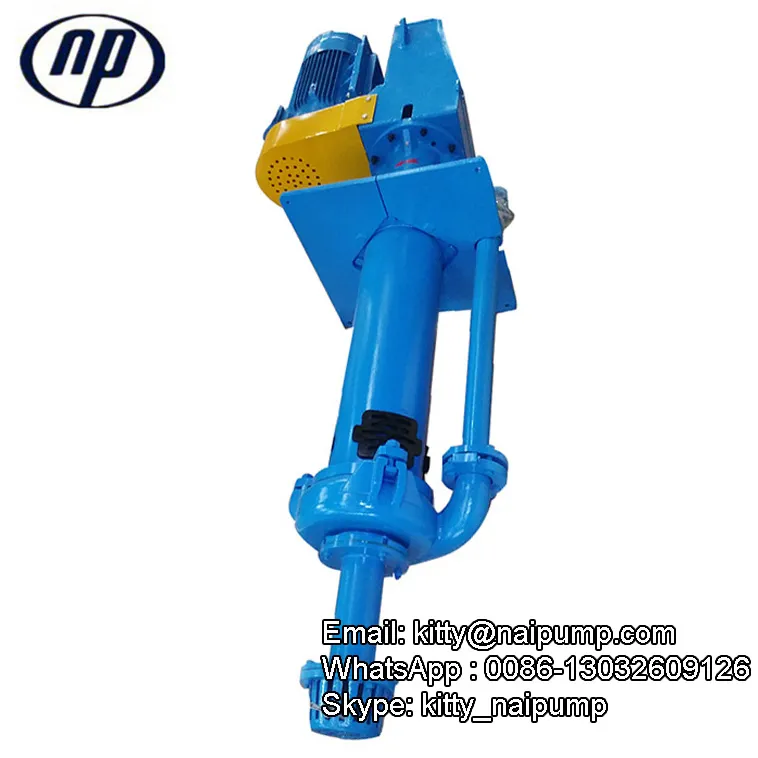

150sv-Sp Vertical Spindle Sand Slurry Pumps
150SV-SP Vertical Spindle Sand Slurry PumpsFactory of slurry pump, sand gravel pump , dredging pump and OEM ServiceDescription for Slurry Sump PumpsName: NP-SP Vertical Sump PumpPump Type: Vertical centrifugal slurry pumpsDrvie Type: BD/DCPower: MotorDischarge Size: 40mm-200mmCapacity: 5.4-247.5 l/s......
Send Inquiry
Product Description

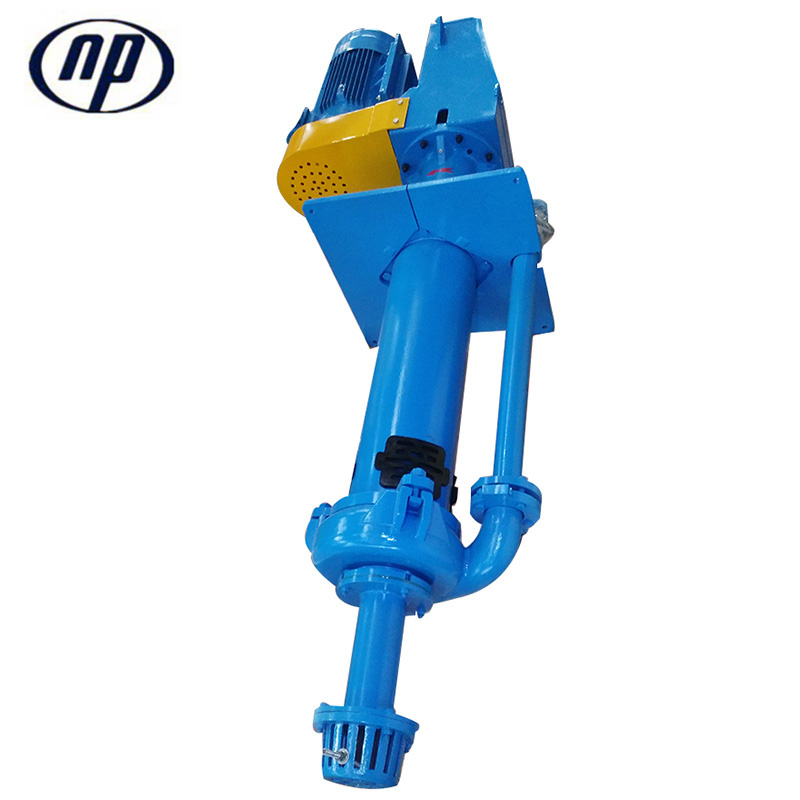

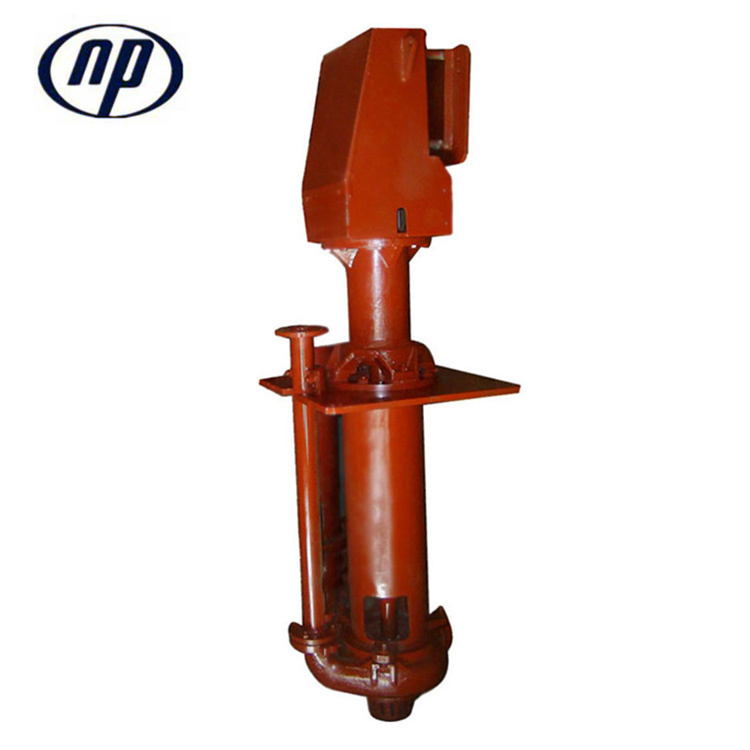

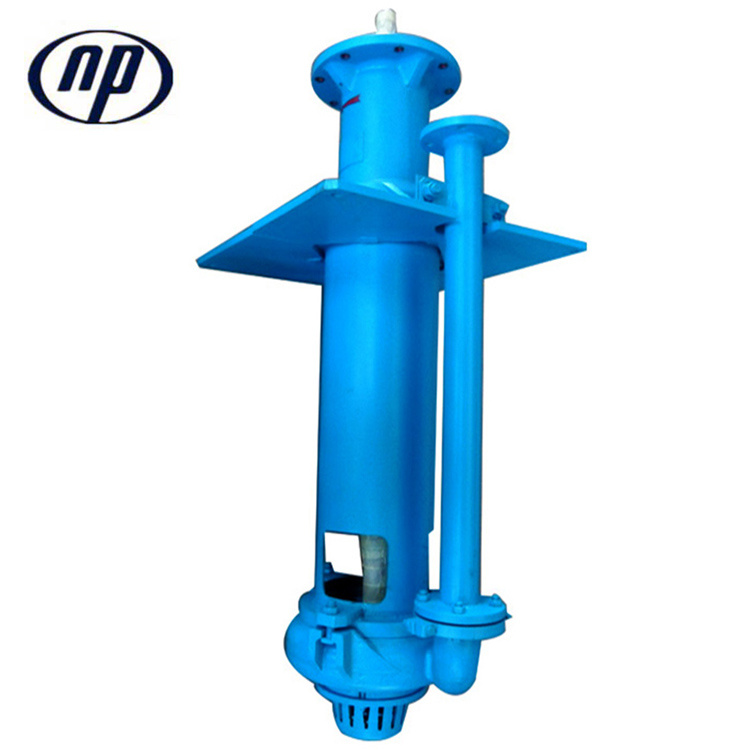

150SV-SP Vertical Spindle Sand Slurry Pumps
Factory of slurry pump, sand gravel pump , dredging pump and OEM Service

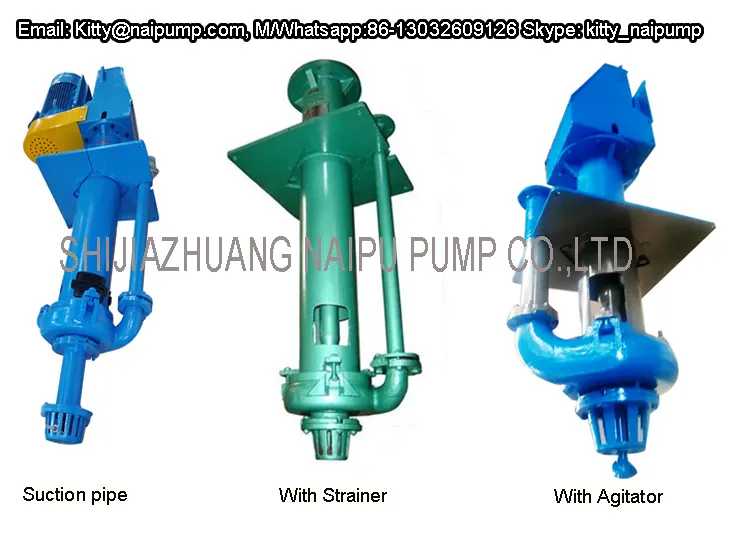

Description for Slurry Sump Pumps

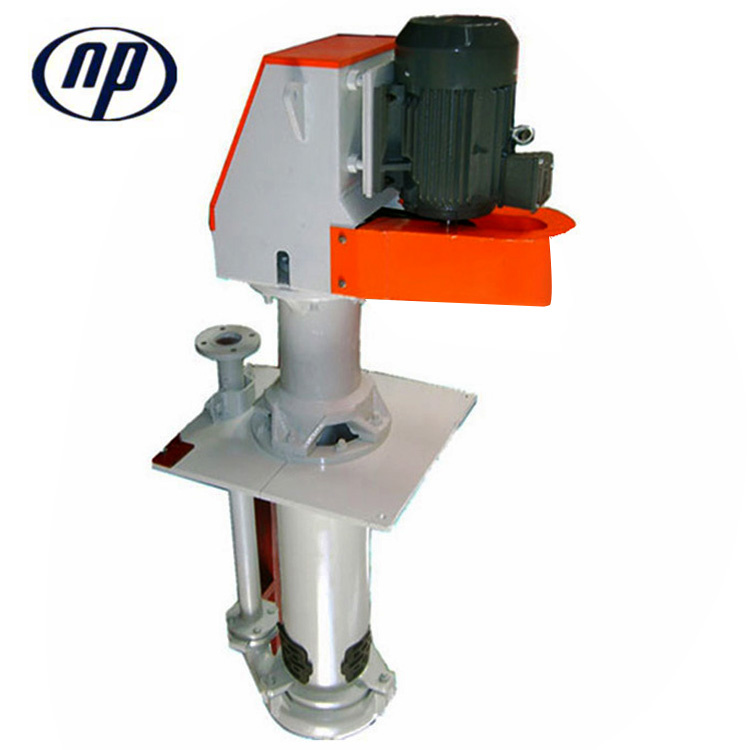

Name: NP-SP Vertical Sump Pump
Pump Type: Vertical centrifugal slurry pumps

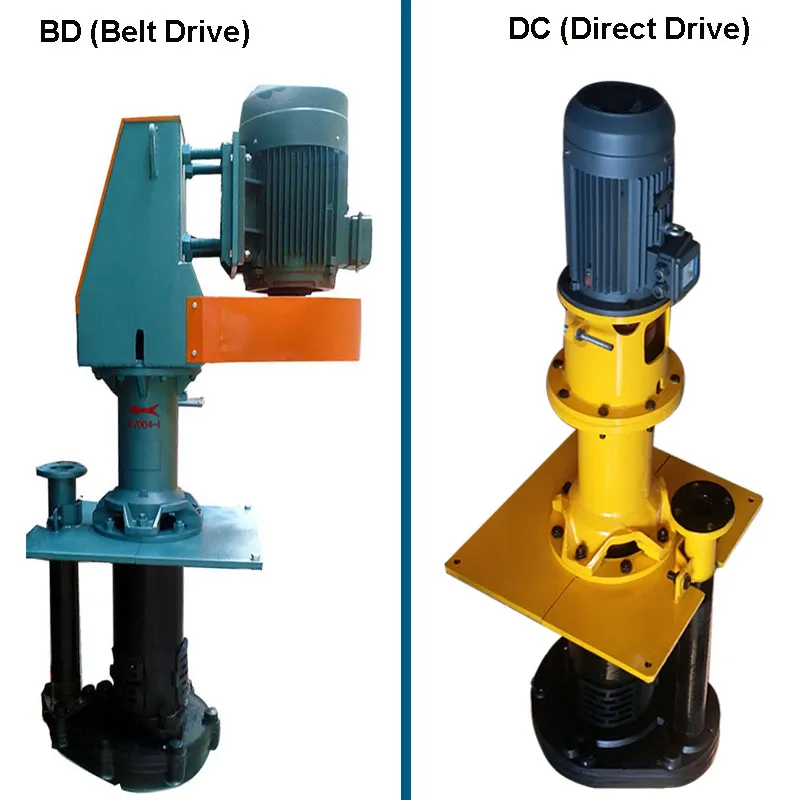

Drvie Type: BD/DC
Power: Motor
Discharge Size: 40mm-200mm
Capacity: 5.4-247.5 l/s
Head: 4.5m-37m
Feature:
Naipu® NP-SP pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NP-SP pump are made of abrasion-resistant metal. All parts of type NP-SP(R) pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.

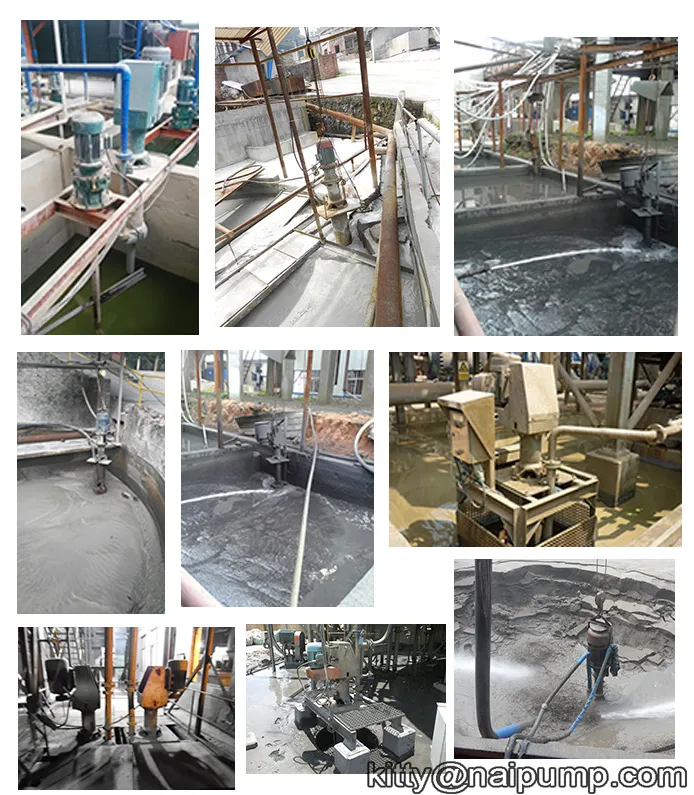

Typical Applications
The vertical slurry pumps are designed to transport the abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, chemistry, coal washery, power plant, building materials and environmental protection.
Sump drainage washdown
Floor drainage
Mill sumps
Carbon transfer
Monitoring
Magnetite mixing
Type Notation :
150SV-NP-SP
150------ Discharge Diameter(mm)
NP-------- ShiJiaZhuang NaiPu Pump Co.,Ltd
SP: Vertical Sump Pump
NP-SP SLURRY PUMP PERFORMANCE PARAMETERS
Construction Drawing
Main Part Number At The Drawing
1.Discharge Pipe
2.Column
3.Strainer
4.Back Liner 5.Impeller
6.Pump Casing
7.Lower Pipe
Materials of Construction
Company Profile
ShiJiaZhuang NaiPu Pump Co.,Ltd , Is one of professional factory of slurry pump, sand gravel pump , dredging pump , Water pump and spare parts .
NaiPu Pump is devoted to pump solution industry for more than 30 years!
The Pumps are widely used in in metallurgy, mining, Nonmetallic Mining, Coal, Energy
resources, Sand mining, Dredging, Environmental protection, Petrochemical engineering, Flue gas desulfurization and other industrial departments.
The Pumps are exported to USA, Canada, Germany, Russia , Australia, South Asia, North America, South Africa, and etc , up to more than sixty countries.

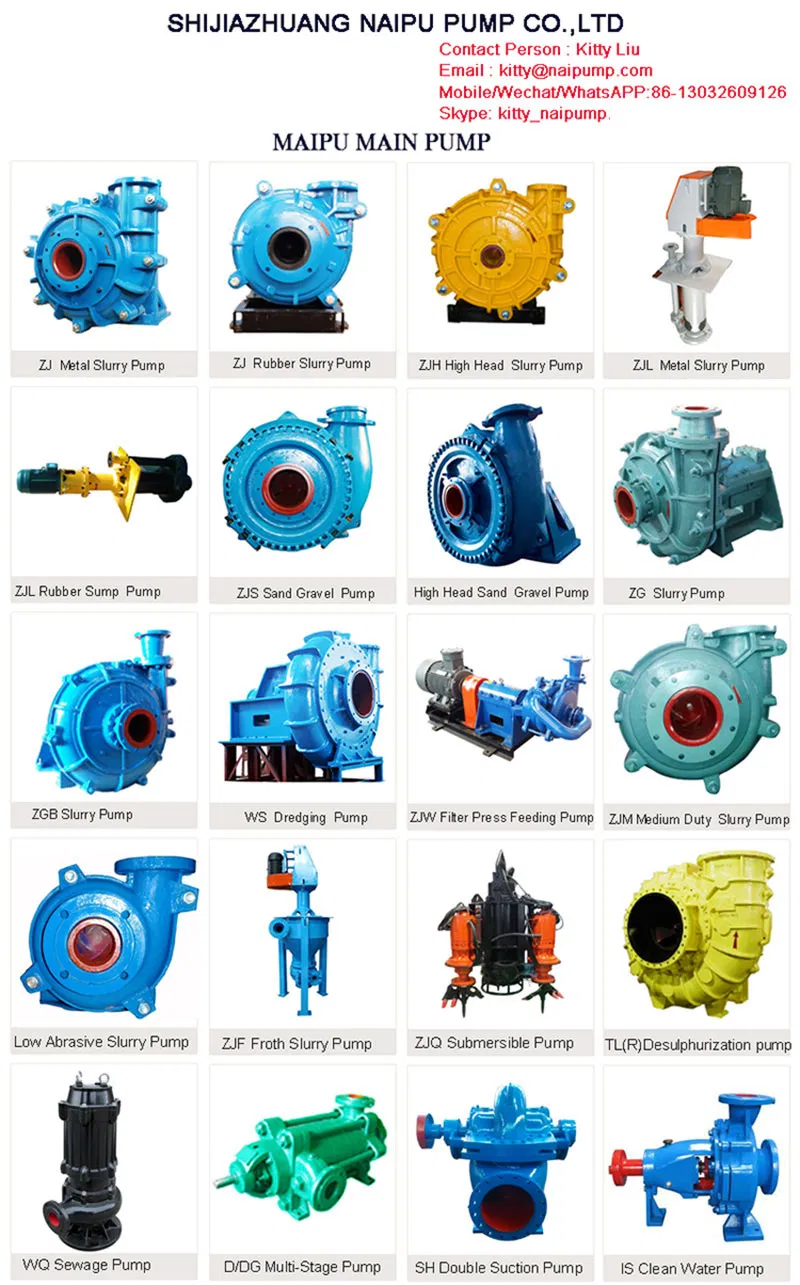

NaiPu Main products
1. AH , AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. TL(R) Desulphurization Pump
8.Clean Water Pump
9. OEM Casting machinery parts

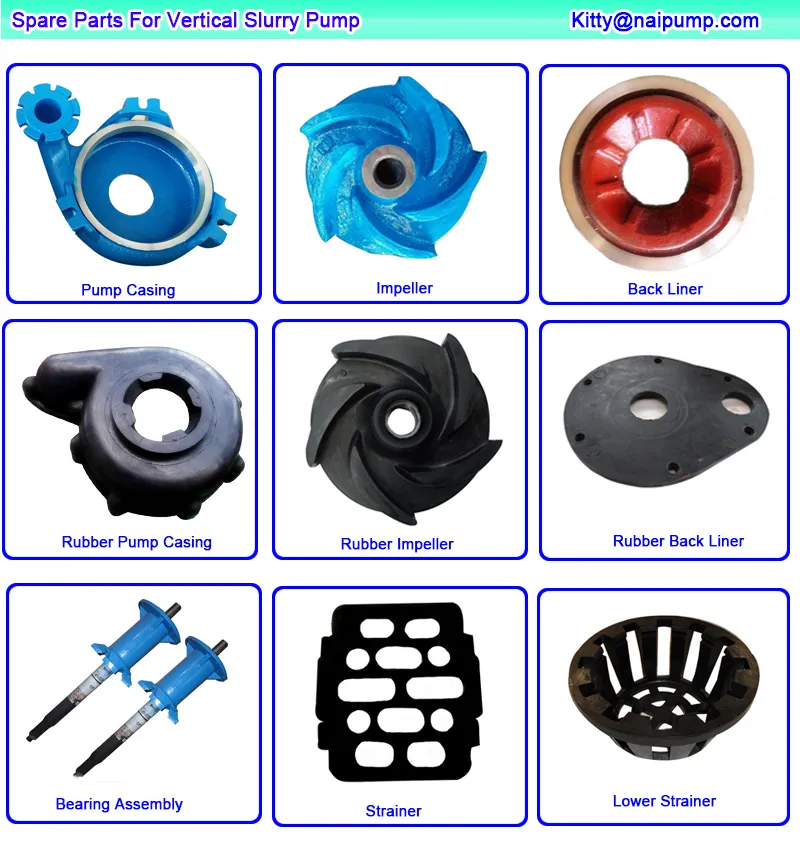

Main Slurry Pump Parts : Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.
Our Service
1. Quick Reply
Your inquiry related to our products or prices will bereplied within 12 hours.
2.Pump Choice .
We can help to select the suitable pump
3.Technical Surport .
We have a group of high quality technicians with rich experience who can solve everything during the whole process.
4.Guarantee quality.
All the products have proved by ISO 9001:2008, CE, SGS. And also will be inspected strictly before delivery.
5.Perfect after -sales .
We will be responsible for the whole life period
6.OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy.
Welcome to contact us
ShiJiaZhuang NaiPu Pump Co.,Ltd
Contact person :Kitty Liu
Mobile :+86-13032609126
Shijiazhuang, Headquarters
Add.:No.368, Xinshi North Road, Shijiazhuang, Hebei Province, China
Factory of slurry pump, sand gravel pump , dredging pump and OEM Service
Description for Slurry Sump Pumps
Name: NP-SP Vertical Sump Pump
Pump Type: Vertical centrifugal slurry pumps
Drvie Type: BD/DC
Power: Motor
Discharge Size: 40mm-200mm
Capacity: 5.4-247.5 l/s
Head: 4.5m-37m
Feature:
Naipu® NP-SP pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NP-SP pump are made of abrasion-resistant metal. All parts of type NP-SP(R) pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.
Typical Applications
The vertical slurry pumps are designed to transport the abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, chemistry, coal washery, power plant, building materials and environmental protection.
Sump drainage washdown
Floor drainage
Mill sumps
Carbon transfer
Monitoring
Magnetite mixing
Type Notation :
150SV-NP-SP
150------ Discharge Diameter(mm)
NP-------- ShiJiaZhuang NaiPu Pump Co.,Ltd
SP: Vertical Sump Pump
NP-SP SLURRY PUMP PERFORMANCE PARAMETERS
Type | Allowable Mating Max. Power(Kw) | Range Of Performance | Impeller | |||||
Capacity/Q | Head/m | Speed/rpm | Max Efficiency/% | No. of Vanes | Impeller Diameter/mm | |||
m³/hr | L/S | |||||||
40PV-NP-SP | 15 | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 5 | 188 |
65QV-NP-SP | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 5 | 280 |
100RV-NP-SP | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 5 | 370 |
150SV-NP-SP | 110 | 108-479.16 | 30-133.1 | 8.5-40 | 500-1000 | 52 | 5 | 450 |
200SV-NP-SP | 110 | 189-891 | 152.5-247.5 | 6.5-37 | 400-850 | 64 | 5 | 520 |
250TV-NP-SP | 200 | 261-1089 | 72.5-302.5 | 7.5-33.5 | 400-750 | 60 | 5 | 575 |
300TV-NP-SP | 200 | 288-1267 | 80-352 | 6.5-33 | 350-700 | 50 | 5 | 610 |

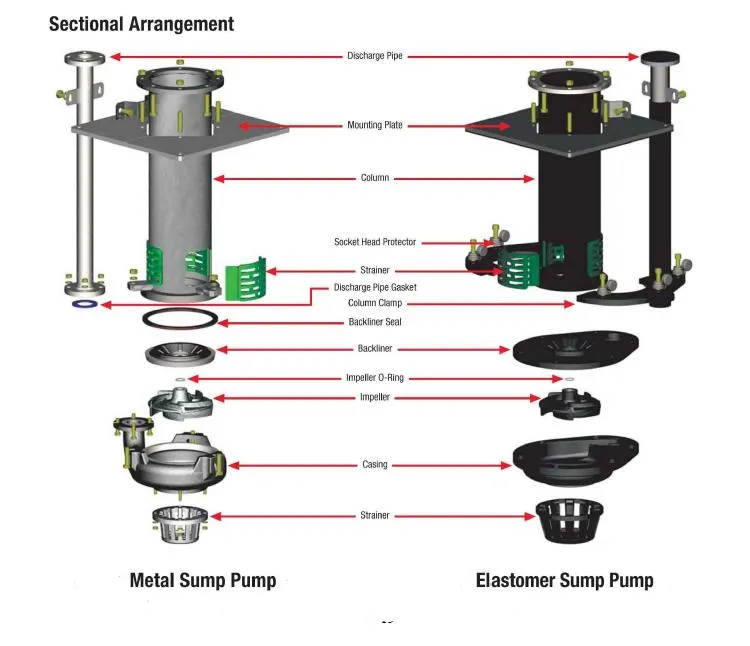

Construction Drawing
Main Part Number At The Drawing
1.Discharge Pipe
2.Column
3.Strainer
4.Back Liner 5.Impeller
6.Pump Casing
7.Lower Pipe
Materials of Construction
| IMPELLERS | CASING | COLUMN | DISCHARGE | SEALS | |
| Standard | High Chrome Alloy Rubber | High Chrome Alloy Rubber | Mild Steel Mild Steel Rubber Lined | Mild Steel Mild Steel Rubber Lined | Natural Rubber Rubber |
| Options | Butyl EPDM Hypalon Polyurethane 316 SS W 151 | Neoprene Butyl EPDM Hypalon Nitrile 316 SS W 151 | Neoprene Butyl Nitrile 316 SS | Neoprene Butyl Nitrile 316 SS | Nordel Neoprene Viton Hypalon Butyl EPDM |
Company Profile
ShiJiaZhuang NaiPu Pump Co.,Ltd , Is one of professional factory of slurry pump, sand gravel pump , dredging pump , Water pump and spare parts .
NaiPu Pump is devoted to pump solution industry for more than 30 years!
The Pumps are widely used in in metallurgy, mining, Nonmetallic Mining, Coal, Energy
resources, Sand mining, Dredging, Environmental protection, Petrochemical engineering, Flue gas desulfurization and other industrial departments.
The Pumps are exported to USA, Canada, Germany, Russia , Australia, South Asia, North America, South Africa, and etc , up to more than sixty countries.
NaiPu Main products
1. AH , AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. TL(R) Desulphurization Pump
8.Clean Water Pump
9. OEM Casting machinery parts
Main Slurry Pump Parts : Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.
Our Service
1. Quick Reply
Your inquiry related to our products or prices will bereplied within 12 hours.
2.Pump Choice .
We can help to select the suitable pump
3.Technical Surport .
We have a group of high quality technicians with rich experience who can solve everything during the whole process.
4.Guarantee quality.
All the products have proved by ISO 9001:2008, CE, SGS. And also will be inspected strictly before delivery.
5.Perfect after -sales .
We will be responsible for the whole life period
6.OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.Steely alloy.
Welcome to contact us
ShiJiaZhuang NaiPu Pump Co.,Ltd
Contact person :Kitty Liu
Mobile :+86-13032609126
Shijiazhuang, Headquarters
Add.:No.368, Xinshi North Road, Shijiazhuang, Hebei Province, China
