11HP Portable Gasoline Fire Fighting Pump
1.Product Description The BJ-9G Series pump is powered by LC182/LF182F gasoline engine and the single-level centrifugal pumps. It has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in the narrow road......
Send Inquiry
Product Description
The BJ-9G Series pump is powered by LC182/LF182F gasoline engine and the single-level centrifugal pumps. It has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade, forest fire brigade, towns, rural areas, the mining industry and obligation fire brigade.
2.BJ-9G 11HP Portable Fire Pump Technical Parameters(More Other Models Parameters Pls Contact us)
Model | BJ-9G LC182/LF182F, China | |||
Engine | Type | 4-stroke, 1-cylinder, air-cooled gasoline engine | ||
Bore & Stroke | 82mm x 64mm (3.23in. X 2.52in.) | |||
Piston displacement | 339cc ( 20.68 cu.in.) | |||
Authorized output | 11hp | |||
Fuel tank | 6 liters (2.60 US gals) | |||
Gasoline consumption | 360g/kwh | |||
Rev.(r/min) | 3600r/min | |||
Starting system | Starter motor and automatic recoil system | |||
Lubrication | Separate fuel/oil supply system (Auto mixing) | |||
Choke system | Auto choke system | |||
Air filter | Double filter cores | |||
Cooling method | Compulsory air-cool | |||
Fuel | At least 90# lead-free | |||
Pump | Type | Single suction, single stage, high pressure | ||
Discharge port coupling | Screw type | |||
Suction port coupling | Tooth type | |||
Priming | Rotary-vane vacuum pump | |||
Pump performance | Rated flow 540L/min at 0.5 MPa | |||
Pump lift 55M | ||||
Priming time ≤20s | ||||
Dimensions | Overall length | Approx. 700mm (27.6 inch) | ||
Overall width | Approx. 620mm (24.4 inch) | |||
Overall height | Approx. 730mm (28.7 inch) | |||
Mass | 85kg (187 lbs) | |||
Max. suction height | Approx. 9m (29.5 feet) | |||

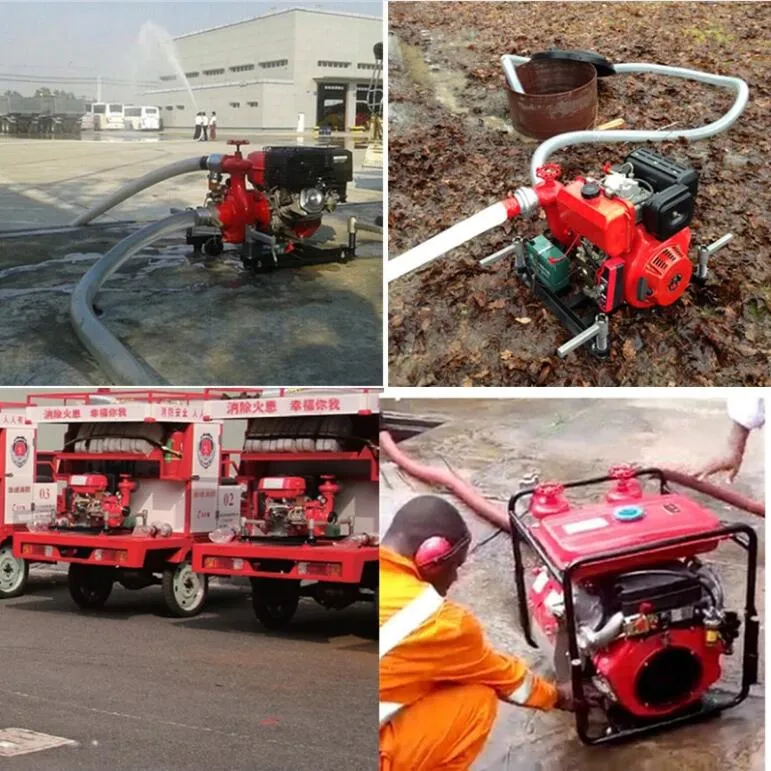

3.Applications
4.Shipping
5.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 15 working days for diesel engine /Gasoline Pump
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.

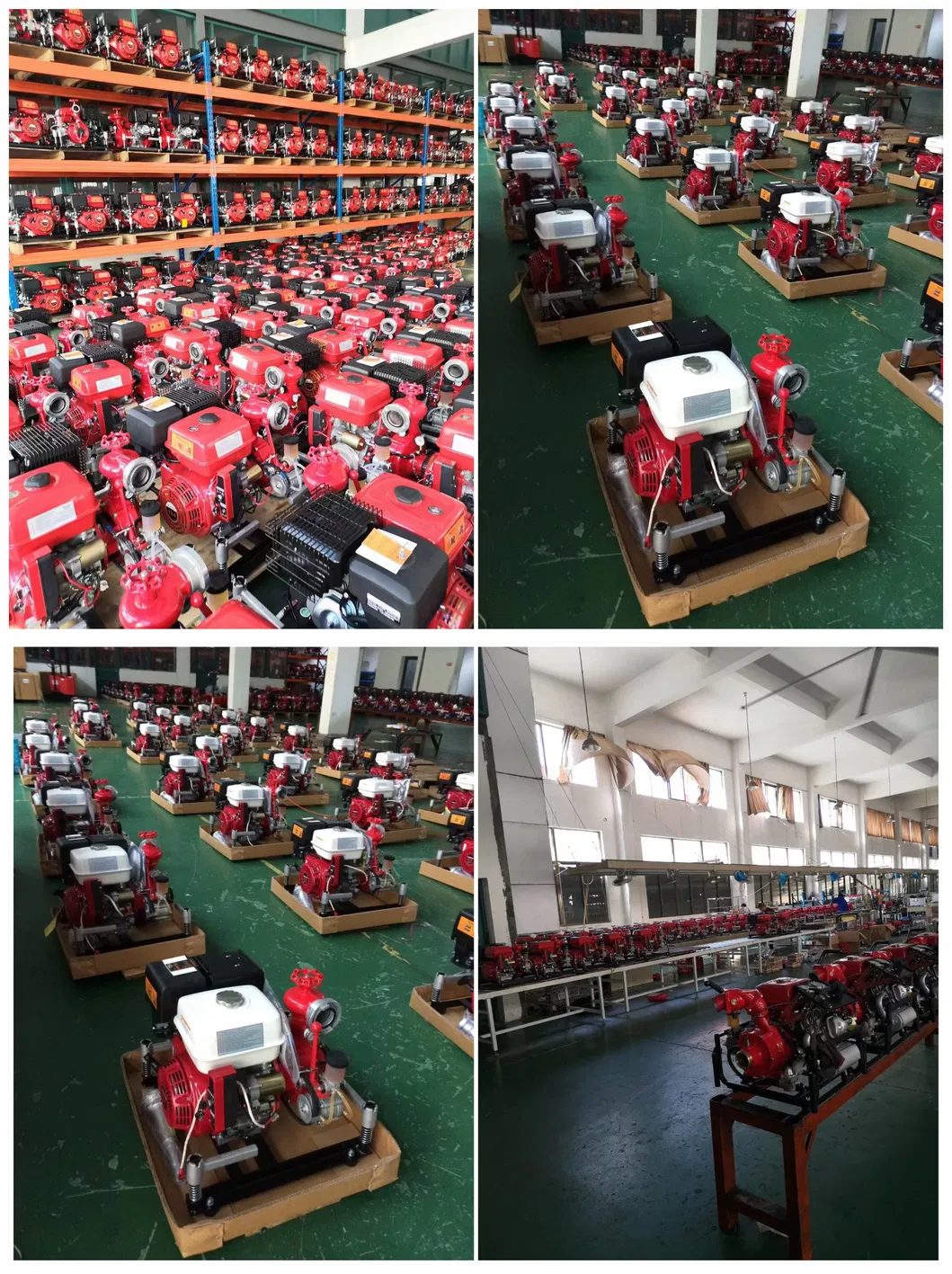

6.Our Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Company:Jiujiang SELE(DEFU) Fire Fighting Equipment Co.,Ltd
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Factory:Shanghai Y&L Pump Co.,Ltd
