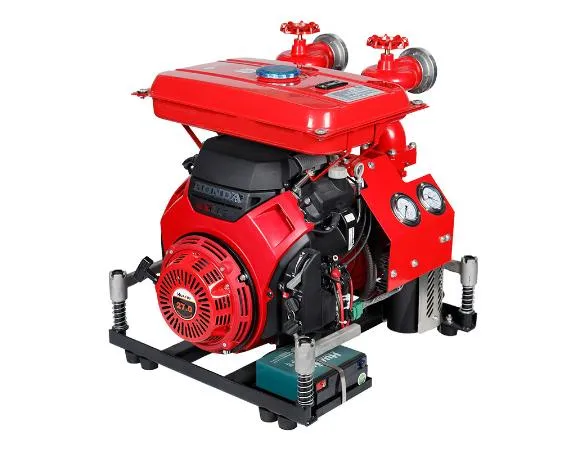

10bar 520lpm 27HP Portable Fire Fighting Pump with 2 Outlets
Product DescriptionDouble outlets JBQ10/8.6-H portable fire pumpEngine:4 stroke,air-cooled gasoline,Honda GX690Output power:27HP(20KW)Pump performance520 L/min at 1.0MPa700 L/min at 0.8MPa1000 L/min at 0.6MPaWeight:98KGSize:780x600x650(mm)Product ParametersType4 strokeCylinder qtyDouble cylinderFuel......
Send Inquiry
Product Description

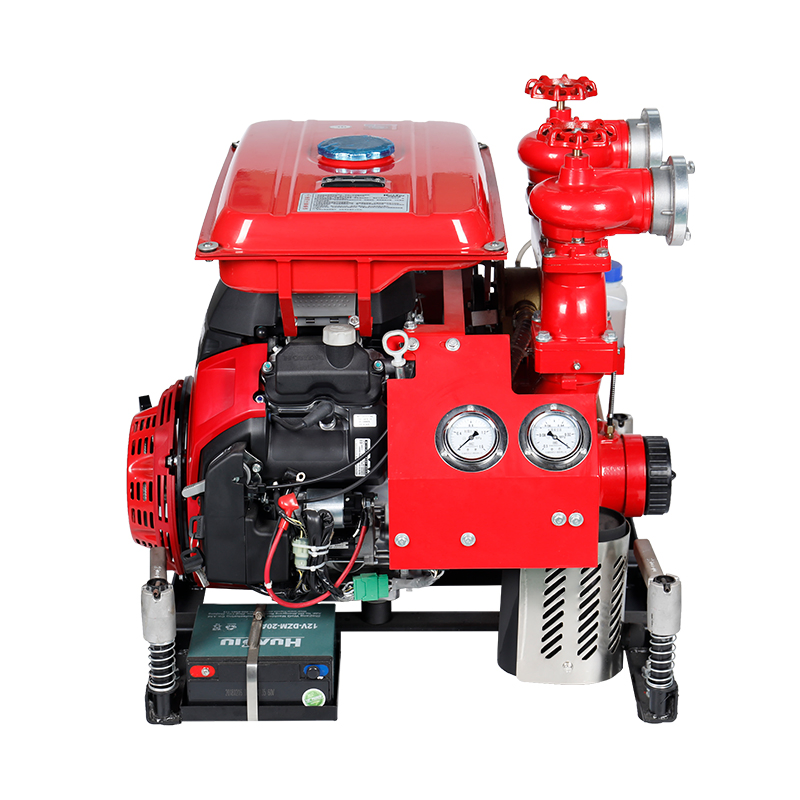

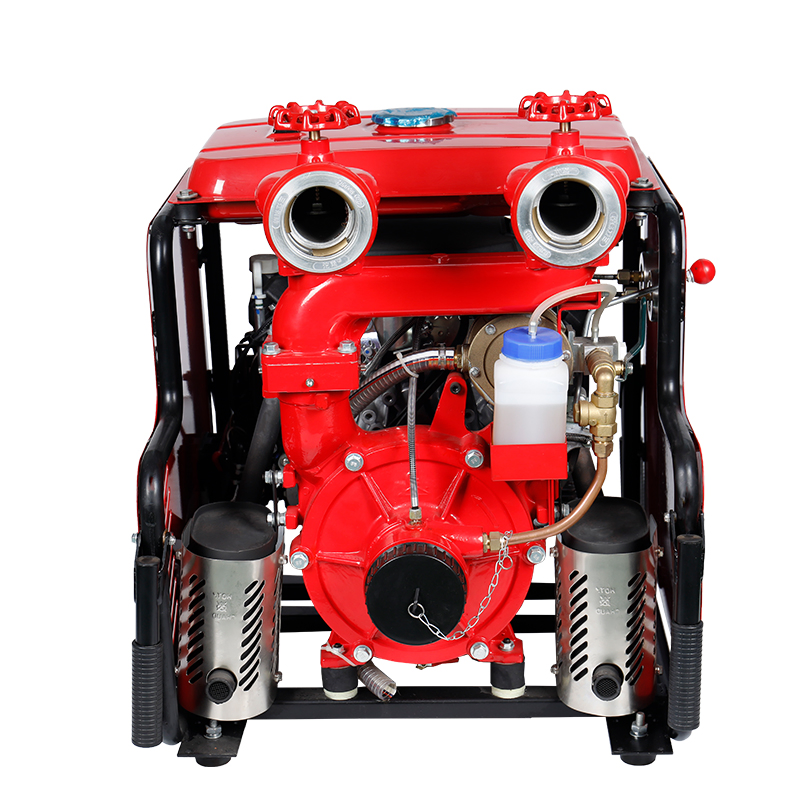

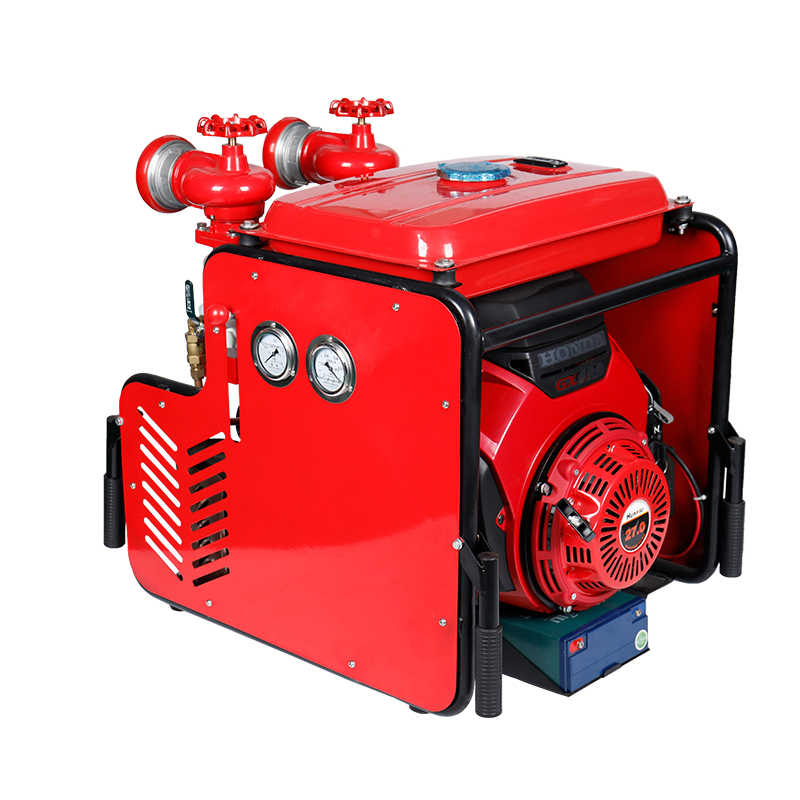

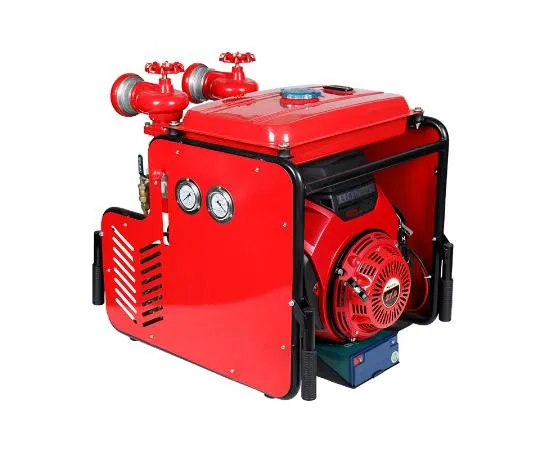

Double outlets JBQ10/8.6-H portable fire pump
Engine:4 stroke,air-cooled gasoline,Honda GX690
Output power:27HP(20KW)
Pump performance
520 L/min at 1.0MPa
700 L/min at 0.8MPa
1000 L/min at 0.6MPa
Weight:98KG
Size:780x600x650(mm)
| Type | 4 stroke |
| Cylinder qty | Double cylinder |
| Fuel tank capacity | 7L |
| Fuel system | Solenoid valve,carburetor,manual choke |
| Lubrication system | Forced lubrication |
| Engine oil capacity | 1.5L |
| Starting | Manual,electric(Option for remote control) |
| Ignition | Transistorized coil electric ignition |
| Fuel consumption | 7L/h |
| Pump type | Single suction double stage impeller |
| Suction Dia | 3''(80mm) |
| Outlet Dia | 2.5''(65mm) |
| Outlet qty | 2 PC |
| Method of drawing water | Rotary vance vacuum pump |
| Time of drawing water | Less than 15s |
| Maximum suction height | 9m |
| Maximum head | 145m |
| Nominal flow | 520 L/min |
| Nominal pressure | 1.0MPa |
