100clz-8A Series Vertical Centrifugal Self-Priming Marine Pump
China Huanggong Machinery Group Co.,Ltd.Specialist in marine pump industry for over 35 years. CLZ Series Marine Vertical Self-priming Centrifugal Pump/ Deep Suction Water PumpBrief introduction CLZ series marine vertical self-priming centrifugal pumps are used at cabin bottom to cool water and fight......
Send Inquiry
Product Description
China Huanggong Machinery Group Co.,Ltd.
Specialist in marine pump industry for over 35 years.

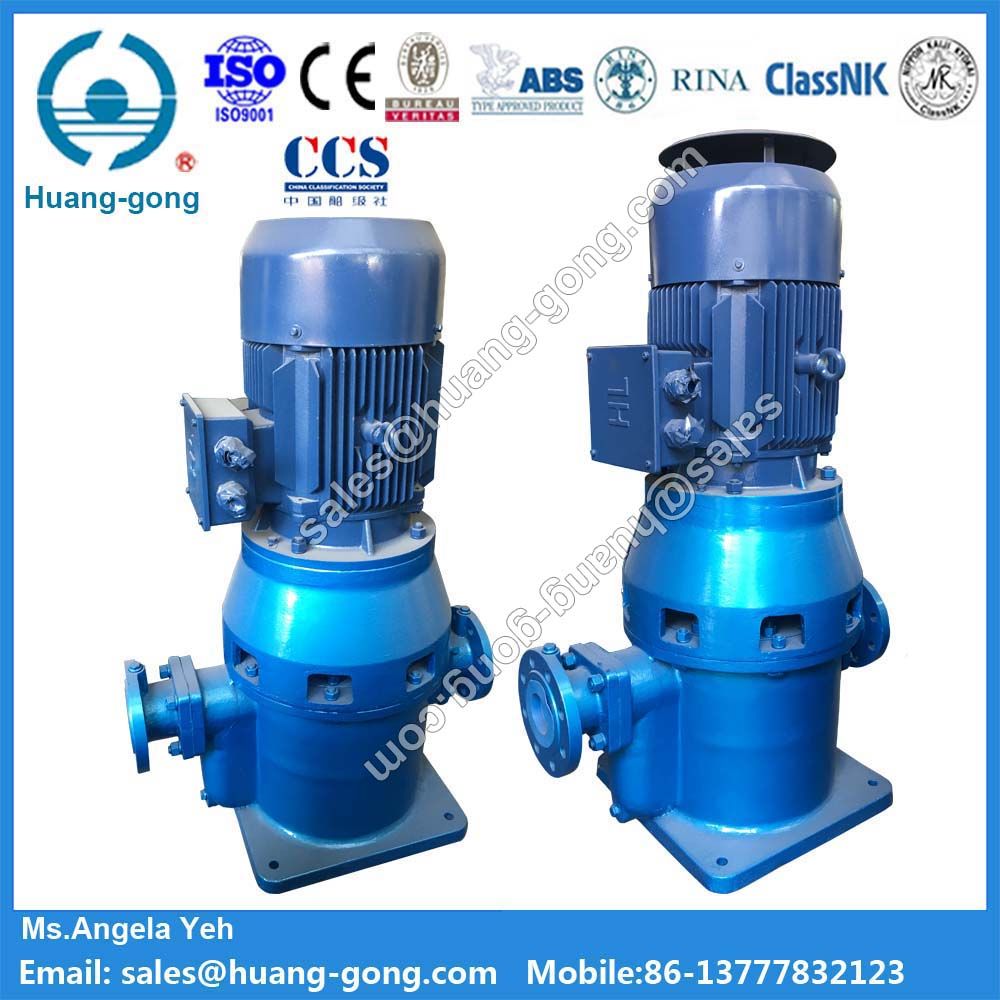

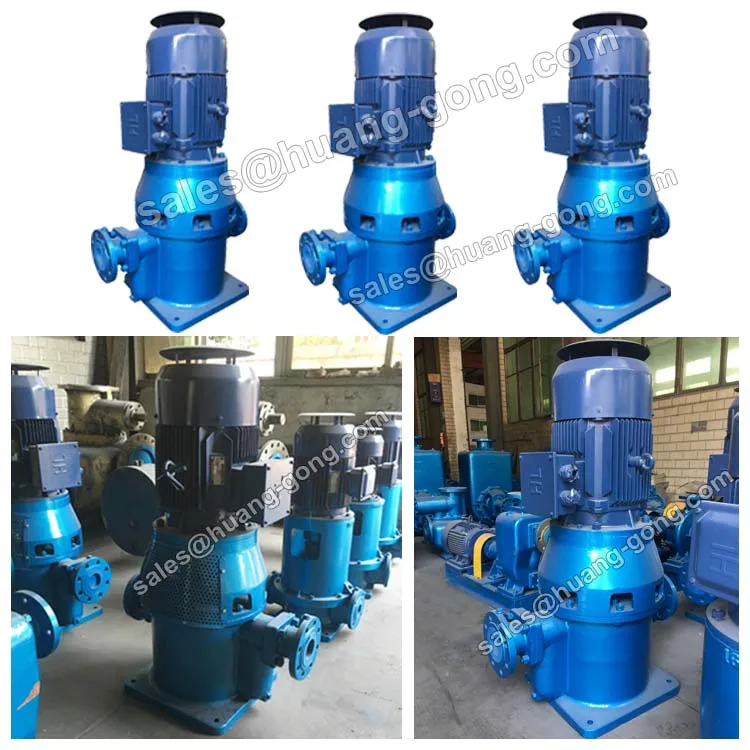

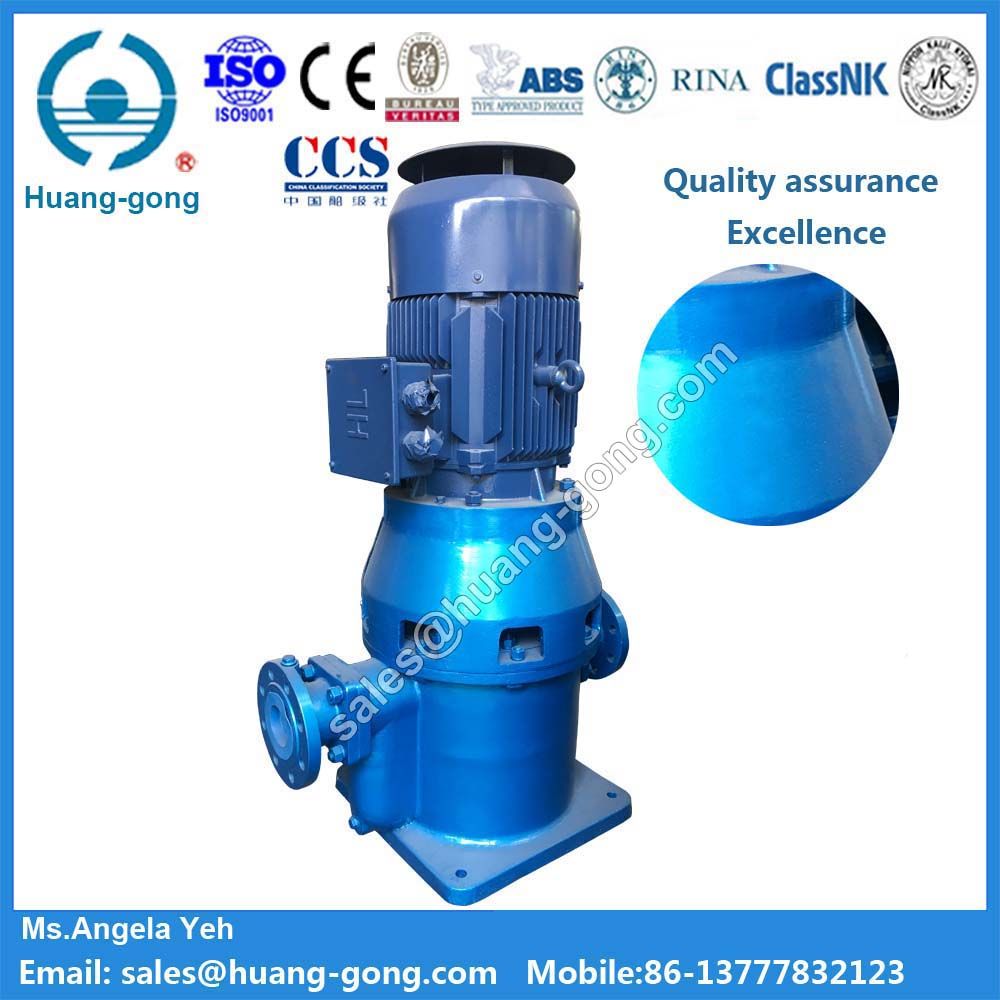

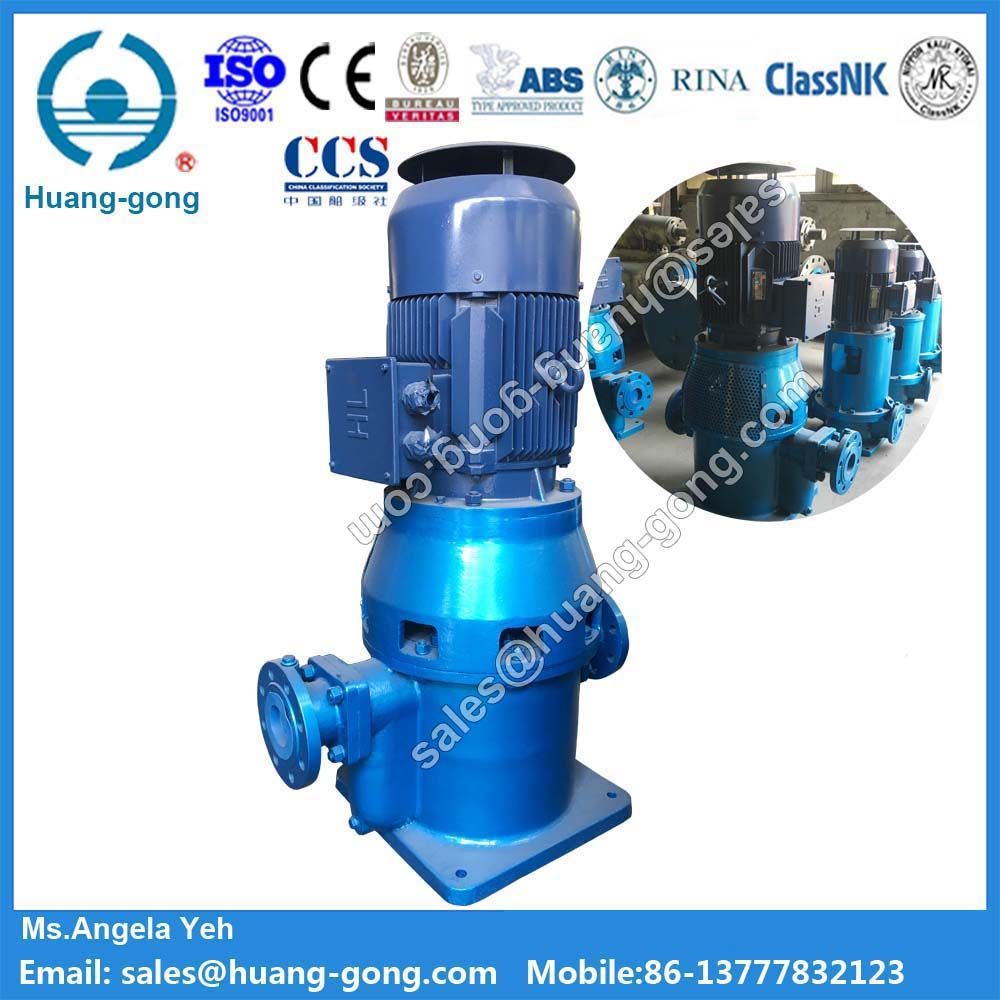

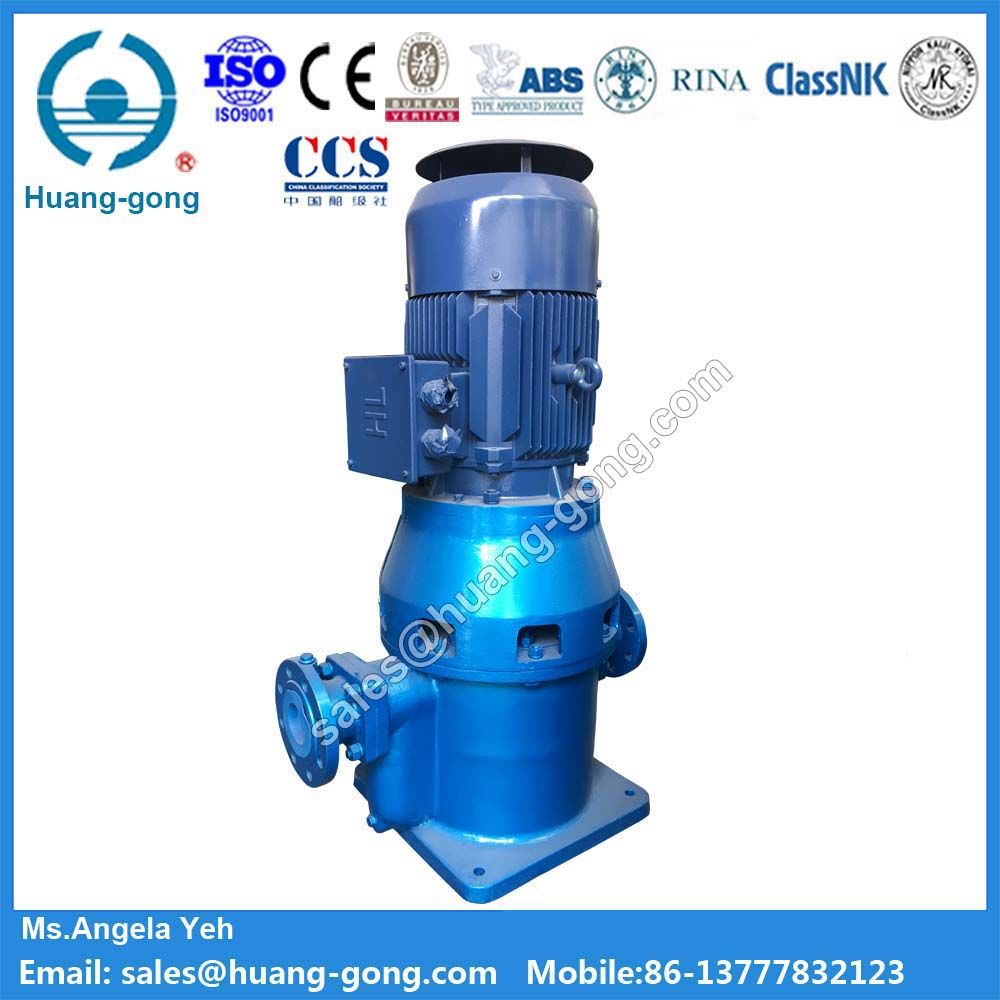

CLZ Series Marine Vertical Self-priming Centrifugal Pump/ Deep Suction Water Pump
Brief introduction
CLZ series marine vertical self-priming centrifugal pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 70 degrees. Fresh water and other non-eroding liquid.
Viewing from the motor end downward, this series pump rotates clockwise.
Model Explanation
For the Model 65CLZ--5A
65 stand for pump inlet nominal diameter mm
CLZ stand for marine-type vertical self-priming pump
5 stand for Intergral value of 1/10 of the specific speed of pump
A stand for impeller for the first time to improve. (B for the second time)
Main Technical parameter:
| Type | Capacity m 3 /h | Head m | Speed r/min | Motor power Kw | NPSH m | Weight kg |
| 125CLZ-5/2 | 51/51 | 30/65 | 1450 | 22 | 3.5 | 518 |
| 125CLZ-7/2 | 80/40 | 25/55 | 18.5 | 3.5 | 524 | |
| 125CLZ-9/2 | 116/58 | 24/61 | 22 | 4.1 | 548 | |
| 125CLZ-9/2A | 141/62 | 25.5/59 | 22 | 4.0 | 540 | |
| 125CLZ-9/2B | 112/54 | 15/52 | 18.5 | 4.1 | 526 | |
| 125CLZ-10/2 | 110/50 | 20/35 | 15 | 4.2 | 488 | |
| 150CLZ-6/2 | 95/95 | 36.5/86 | 55 | 4.9 | 806 | |
| 150CLZ-6/2A | 95/70 | 32/80 | 37 | 4.9 | 724 | |
| 150CLZ-17/2 | 149/95 | 27.5/77 | 45 | 5.1 | 778 | |
| 150CLZ-17/2A | 141/95 | 16.5/60.5 | 37 | 5.1 | 736 | |
| 150CLZ-15/2 | 199/182 | 33/79 | 90 | 5.0 | 1190 | |
| 150CLZ-12/2 | 199/99 | 23.5/70 | 45 | 5.1 | 772 | |
| 150CLZ-7/2 | 124/120 | 33.5/77 | 55 | 4.8 | 928 | |
| 150CLZ-7/2A | 215/120 | 23.5/65 | 45 | 4.9 | 840 | |
| 150CLZ-7/2B | 199/108 | 17/60.5 | 45 | 4.9 | 792 | |
| 200CLZ-13/2 | 257/124 | 24/68.5 | 55 | 4.3 | 936 | |
| 250CLZ-9/2 | 348/174 | 22/71.5 | 75 | 4.6 | 1080 | |
| 250CLZ-9/2A | 265/166 | 14.5/62 | 75 | 5.2 | 916 | |
| 250CLZ-19/2 | 389/182 | 22/70 | 75 | 5.4 | 1110 |
BEFORE ENQUIRYING PLS ADVISE MAIN SPECIFICATION DATAS AS FOLLOWING:
Head, Capacity, Medium,RPM, Material, Voltage, etc.
After sale service
One year Warranty time. Within warranty period, for non-artificial quality problem, we will repair and replace spare parts for free. Except for normal wear and tear of parts.
We can provide all kind of pump
- centrifugal pump
- screw pump
- vortex pump
- gear pump
- diaphragm pump
- hydraulic deep well cargo pump
- electric deep well cargo pump
- hand pump
- bulkhead seal
- tank washing machine
