10/8st-Ah Slurry Pump Volute Liner G8110A05 A61 for Warman Pump
10/8ST-AH Slurry Pump Volute Liner G8110A05 A61 for Warman PumpNaipu pump ® direct factory of slurry pump , gravel sand pump , dredging pump and spare parts , with more than 30 years production experience. Naipu can be your china factory. Welcome to contact me for catalogue.Volute LinerA vol......
Send Inquiry
Product Description
10/8ST-AH Slurry Pump Volute Liner G8110A05 A61 for Warman Pump
Naipu pump ® direct factory of slurry pump , gravel sand pump , dredging pump and spare parts , with more than 30 years production experience. Naipu can be your china factory.
Welcome to contact me for catalogue.

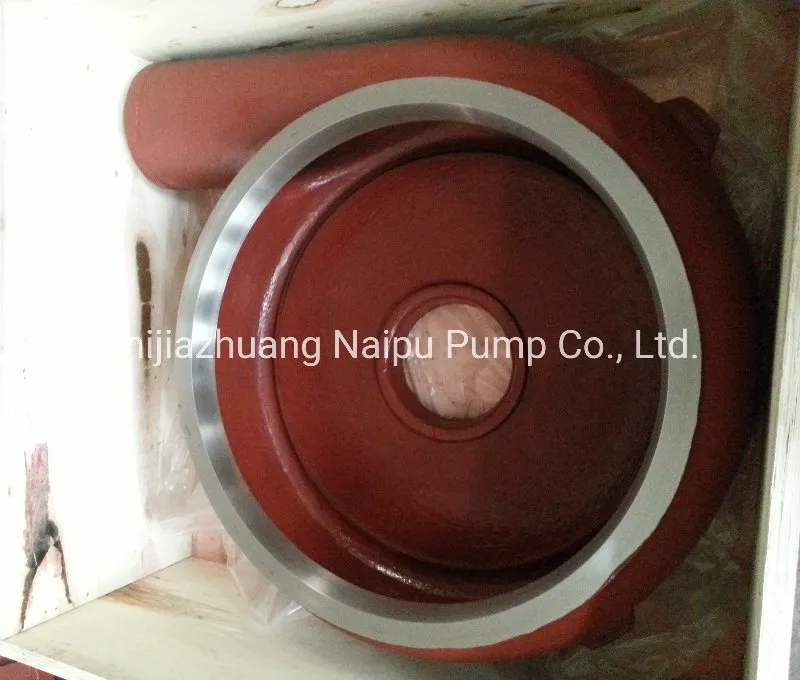

Volute Liner
A volute Liner is a curved funnel increasing in area to the discharge port.It is often used with impeller pumps.As the area of the cross-section increases,the volute reduces the speed of the liquid and increases the pressure of the liquid.The main purposes of a volute casting is to help balance the hydraulic pressure on the shaft of the pump.
The Materials of the volute liner are NA05,NA49,NA33,NA61,Natural Rubber,Polyurethane,Ceramic etc according to different working conditions.
Except the standard Volute Liner, we can do OEM and ODM service if client provide us drawings or samples.

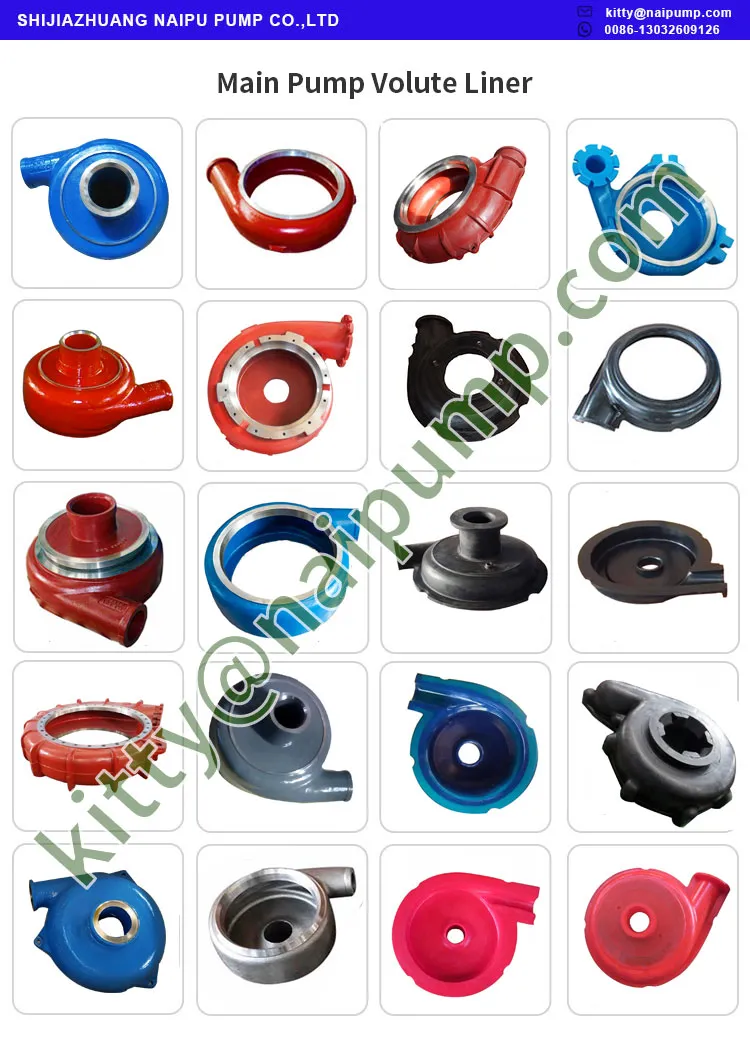

Slurry pump Volute Liner parts Code
| Volute Liner | Replacement Slurry Pump Model | Pump Type |
| B1110NA | 1.5/1B-AH | AH Horizontal Slurry Pump |
| B15110NA | 2/1.5B-AH | |
| C2110NA | 3/2C-AH | |
| D3110 | 4/3C-AH, 4/3D-AH | |
| E4110 | 6/4D-AH, 6/4E-AH | |
| F6110 | 8/6E-AH, 8/6F-AH, 8/6R-AH | |
| G8110 | 10/8ST-AH | |
| G10110 | 12/10ST-AH | |
| G12110 | 14/12F-AH14/12ST-AH | |
| H14110 | 16/14TU-AH | |
| AL2110 | 20A-L | L Horizontal Slurry Pump |
| BL5110 | 50B-L | |
| CL75110NA | 75C-L | |
| DL10110 | 100D-L | |
| EL15110 | 150E-L | |
| SL30110 | 300S-L | |
| F8110 | 10/8E-M, 10/8F-M, 10/8R-M | M Horizontal Slurry Pump |
| F10010 | 12/10F-M, 12/10R-M | |
| CH1110NA | 1.5/1C-HH | HH High Head Slurry Pump |
| DH2110 | 3/2D-HH | |
| EH3110 | 4/3E-HH | |
| FH4110 | 6/4F-HH | |
| FH6110 | 6S-H, 8/6S-H | |
| DG4131 | 6/4D-G, 6/4E-G | G Gravel Sand Pump |
| EG6131 | 8/6E-G | |
| FG8131 | 10/8F-G, 10/8S-G | |
| FG10131 | 12/10G-G | |
| GG12131 | 14/12G-G | |
| FGH8131 | 10/8F-GH | |
| GGH10131 | 12/10G-GH | |
| TG14131 | 16/14TU-GH | |
| SP4092 | 40PV-SP | SP Vertical Slurry Pump |
| SP65092 | 65QV-SP | |
| SP10092 | 100RV-SP | |
| SP15092 | 150SV-SP | |
| SP20092 | 200SV-SP | |
| SP25092 | 250TV-SP | |
| SP30092 | 300TV-SP | |
| SP30092 | 300TV-SP |
NaiPu- AH Series Slurry Pump

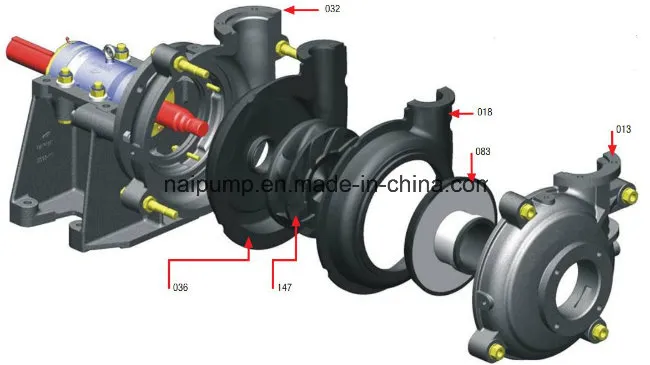

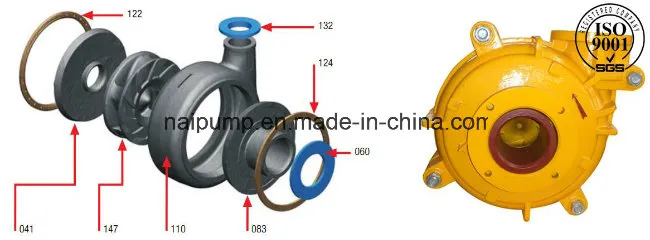

Pump Structure
Main Part Number At The Drawing
032:Frame Plate 060: Intake Joint 132:Discharge Joint 083:Throatbush 110:Volute Liner 147: Impeller | 122: Stuffing Box Seal 036: Frame Plate Liner 013:Cover Plate 018:Cover Plate Liner 124: Volute Cover Seal 041: Frame Plate Liner Insert |
Material of Construction:
LINERS | IMPELLERS | CASING | BASE | EXPELLER | EXPELLER RING | SHAFT SLEEVE | SEALS | |
Standard | Chrome Alloy Natural Rubber | Chrome Alloy Natural Rubber | SG Iron | SG Iron | Chrome Alloy Or SG Iron | Chrome Alloy Or SG Iron | SG Iron | Rubber And Nitrile |
Options | Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile EPDM Hypalon | Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon | SG Iron Various grades | MS Fabricated Cast Iron | NI Resist Ferralium Hastelloy C Polyurethane 316 SS W151 | NI Resist Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile | EN56C Ferralium Hastelloy C Titanium 316 SS 304 SS | Ceramic Stellite Chrome Oxide Nordel Neoprene |
Company Profile:
ShiJiazhuang Naipu Pump Co.,Ltd is Specialized in the manufacturer and sales of slurry pump and pump parts.
We Own Mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop .
Naipu is willing to undertake any OEM(Origin Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.
Considering various requirement for material in the market, we can supply wet end part material as following, metal material A05,A07,A12,A33,A49,A61 and etc. Rubber material R08, R26, R33,R55, S01, S12, S21, S31, S42 and etc. Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.
The Products are widely used in mining , power, metallurgy, coal , dredging, building material and other industrial lines to pump concentrate, tailing,sludge, and other abrasive high density slurries.

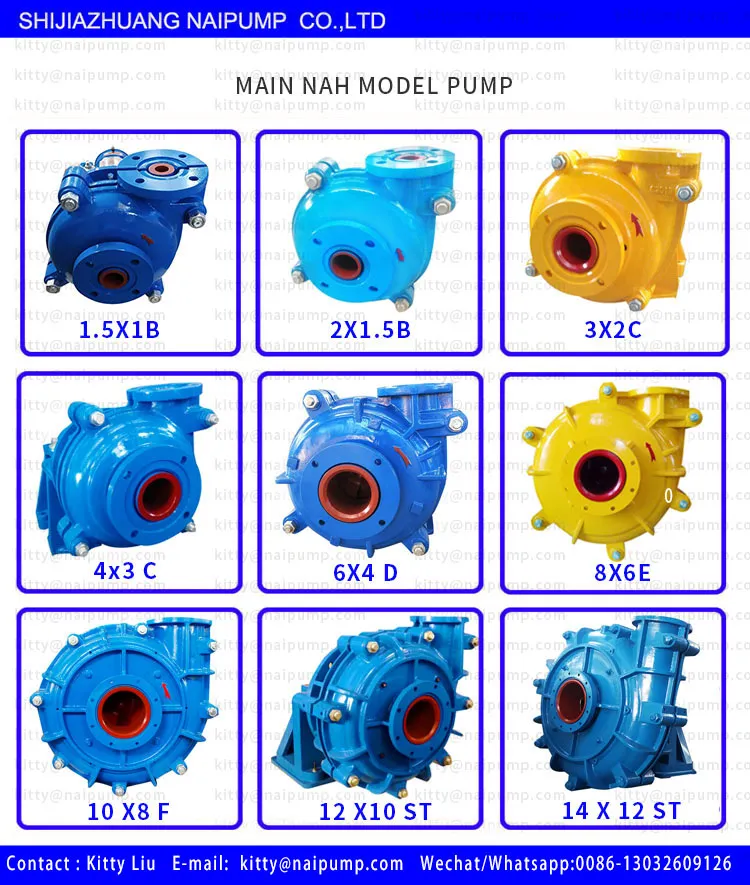

NaiPu Main Pump Model
| NAH series | L(R) ,M | HH | SP(R) | G | AF Series |
| 1.5/1B-NAH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
| 2/1.5B-NAH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
| 3/2C-NAH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
| 4/3C-NAH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
| 6/4D-NAH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G | 2AHF |
| 6/4E-NAH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G | 3AHF |
| 8/6E-NAH(R) | 10/8 R-M | 6S-H | 14/12T-G | 4AHF | |
| 8/6R-NAH(R) | 10/8 E-M | 8/6S-H | 16/14 G-G | 6AHF | |
| 10/8F-NAH(R) | 12/10F-M | 8/6X-H | 16/14TU-GH | ||
| 10/8X-NAH(R) | 6S-HP | 16/14H-GH | |||
| 12/10ST-NAH(R) | 8/6S-HP | 18/16G-G | |||
| 14/12ST-NAH(R) | 8/6X-HP | 18/16 TU-GH | |||
| 16/14TU-NAH(R) | |||||
| 20/18G(TU)-NAH(R) |
Workshop
Shijiazhuang NaiPu Pump Co.,Ltd have own Foundry workshop, Machining Workshop, Assembly workshop, and advanced test equipment.
Naipu can be your china factory , welcome to visit.
Our Service
1. Direct Factory
we are the directly Pump factory with more than 30 years pump production experience.
NaiPu has its Casting workshop, Machining workshop, Assembly Workshop. There are only few real factory , most only have assembly workshop or trader. We can control the quality better.
welcome to visit our factory anytime.
2. Excellent Product Quality.
All our workes have more 20 years experience and skilled in casting , machning and assembly industry,
We have advanced and perfect testing equipment, and strict quality inspection is required at every production link.
3.Technical Surport .
We have a group of high quality engineers with rich experience who can solve everything during the whole process. like select the right pump model , required Power , and other technicial trouble during using
4. Reasonable Price
Naipu Pump can save about 30% cost for the buyer
5.Perfect after -sales .
We will be responsible for the whole life period, No matter any trouble during using , just email me , we will help you to solve it.
6. Rich OEM Service Experience
Not only for pump and spare parts , also for other others mining wear parts. we have done many special spare parts for customer. Like Crusher spare parts , Cyclone parts , ball mill Liner . Material can be High chrome alloy , Stainless steel , Ductile Iron, Alloy 20, Hastalloy C and so on
7. Quick Reply
Your inquiry related to our products or prices will be replied within 8 hours. if urgent can call me or add wechat/ whatsapp
Contact Us
ShiJiaZhuang NaiPu Pump Co.,Ltd
Contact person :Kitty Liu
Mobile :+86-13032609126
Shijiazhuang, Headquarters
Add.:No.368, Xinshi North Road, Shijiazhuang, Hebei Province, China
Disclaimer: Warman, Goulds and Metso and others are the brand names of the respected owners. Any use of competitor names, trademarks, model numbers or part numbers by NaiPu Pump are for reference purpose only and do not imply that any part or pump listed is the product of Weir Warman Pumps, ITT Goulds Pumps and Metso Pumps.
