China 10/8f-Gh High Head 80m Large Size Gravel Sand Pump

Product Description

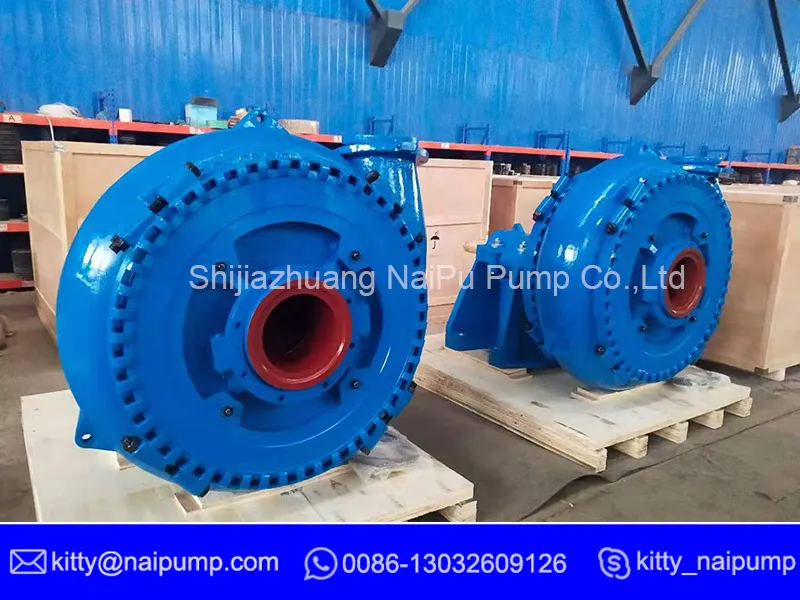

10/8F-GH High Head 80m Large Size Gravel Sand Pump

ShijiaZhuang NaiPu Pump Co.,ltd ,is direct factory of slurry pump, sand gravel pump, dredging pump and spare parts.with more than 30 years experience.

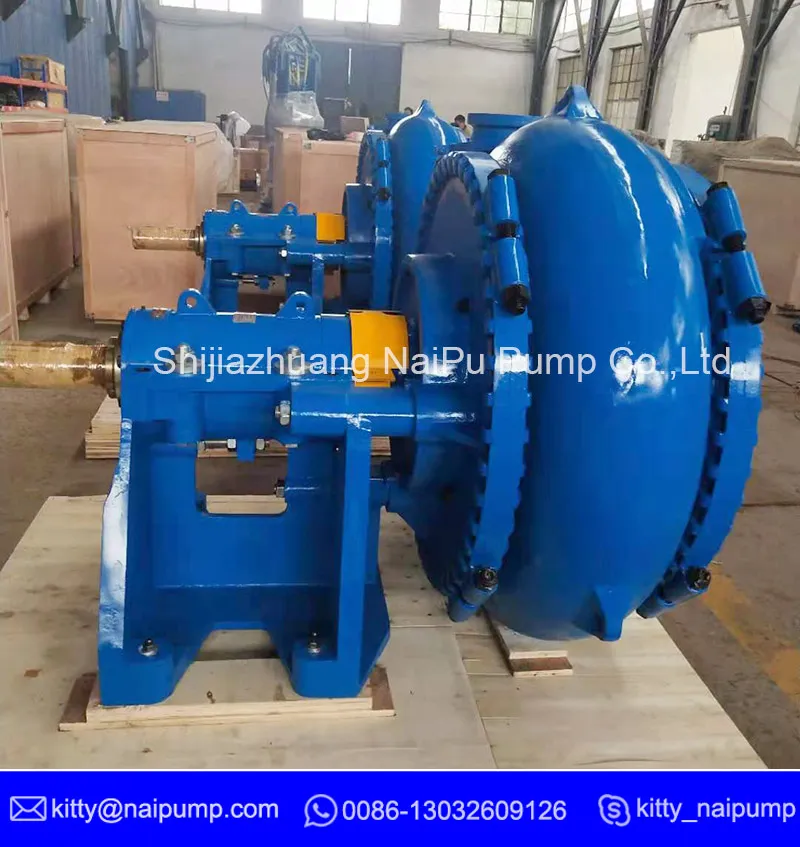

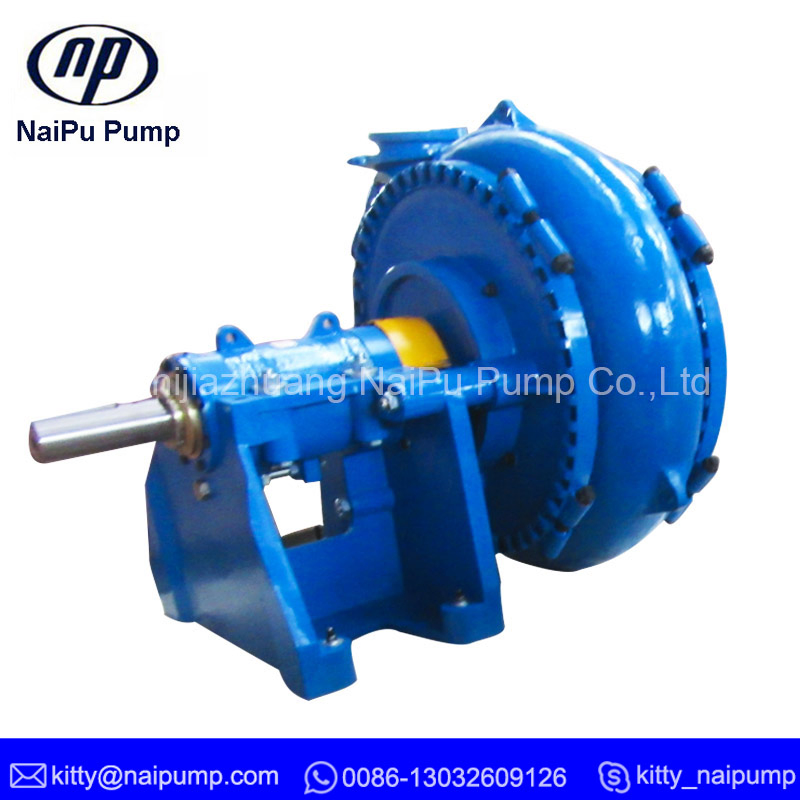

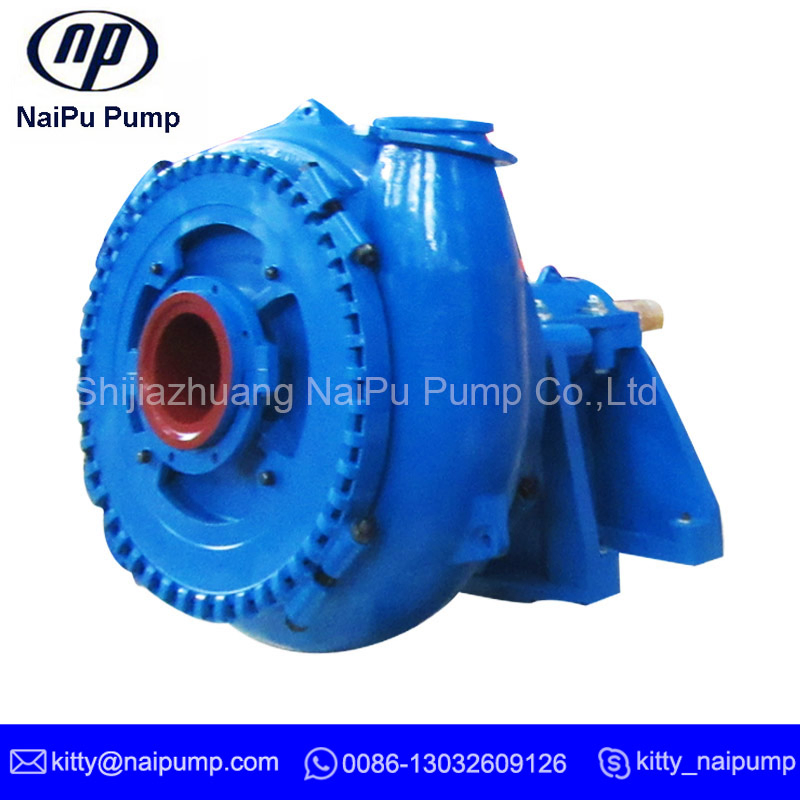

10/8F-GH Gravel Sand Pump

Pump Model: 10/8F-GH
Flow:300-800m3/h
Head: 50-80m
Wear Parts: High Chrome alloy Material Cr27
Max Solid :180mm
Usage : Transport Fluid which contains large size solid , like Gravel Sand , Pebbles, potatoes,

10/8f-Gh High Head 80m Large Size Gravel Sand Pump

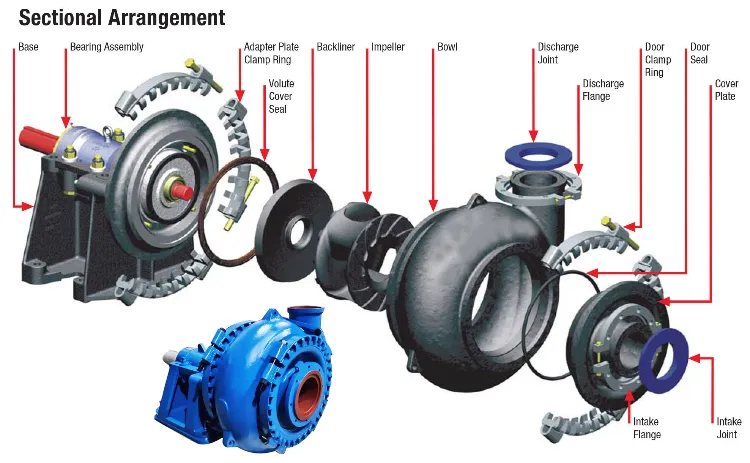

Gravel Sand Pump Constructure

10/8f-Gh High Head 80m Large Size Gravel Sand Pump

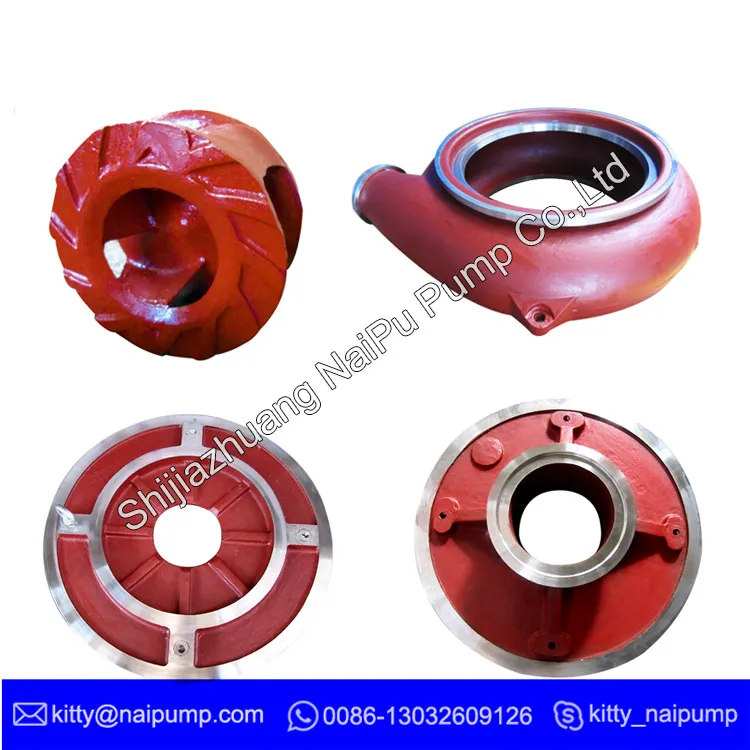

Spare parts

	VOLUTE	IMPELLERS	BASE	EXPELLER	EXPELLER RING	SHAFT SLEEVE	SEALS
Standard	High Chrome Alloy	High Chrome Alloy	Ductile Iron	Chrome Alloy or	Chrome Alloy or Cast Iron	3Cr13	Natural Rubber

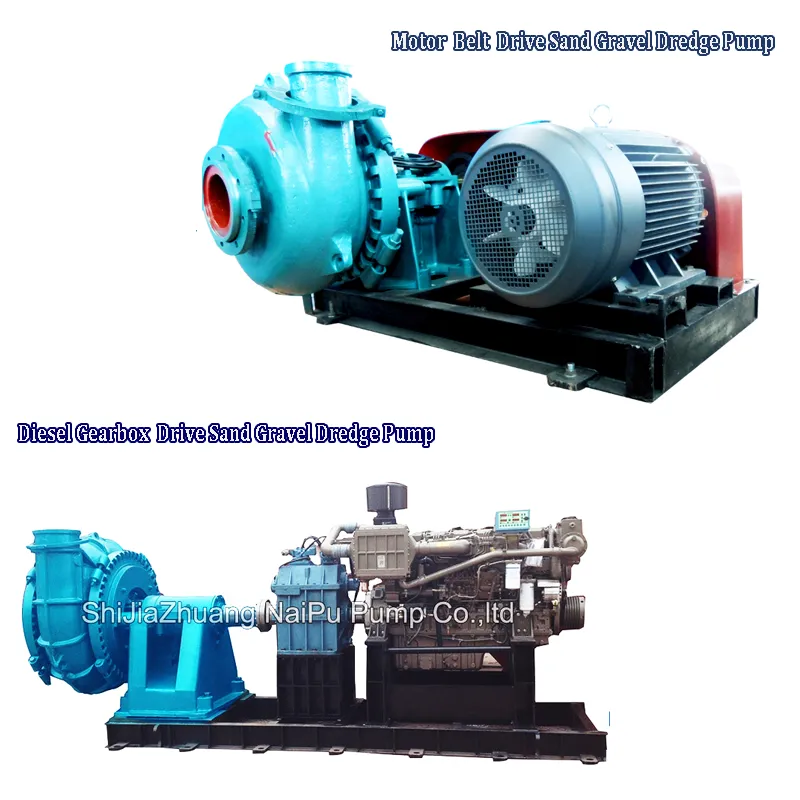

The Gravel Sand Pump can be drived by Motor or Diesel Engine

Usually drived by diesel engine and adjust the speed by gearbox

10/8f-Gh High Head 80m Large Size Gravel Sand Pump

Features:

Type G seris Gravel Sand Pump are designed for continuously handling the most difficult high abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and river course, and other fields. Type GH are high head pumps.

Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-parts are made of Ni_hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360°. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.

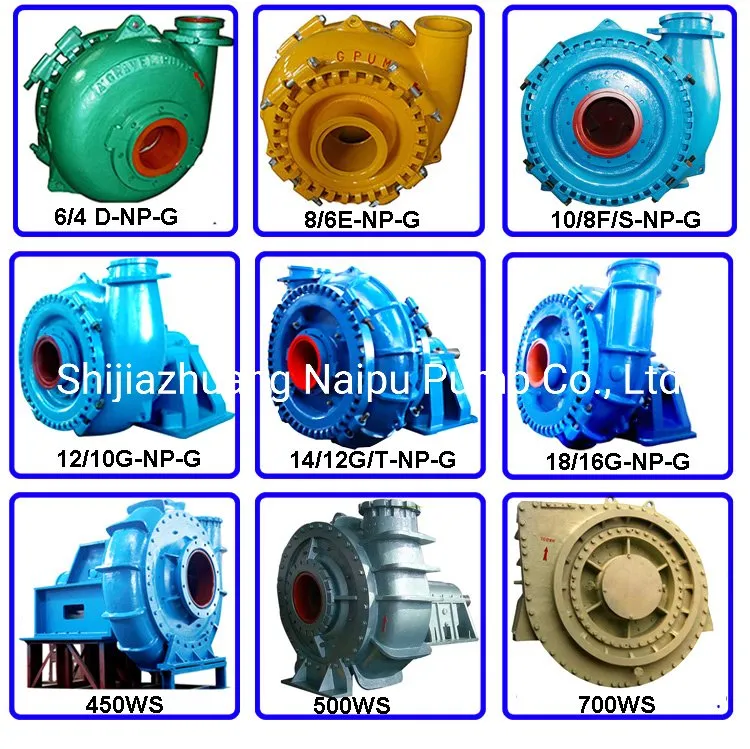

Main Pump Model:

6/4D-G 8/6E-G 10/8F-G 10/8S-G 12/10F-G 12/10G-G 14/12G-G 10/8S-GH 10/8F-GH 12/10G-GH 12/10F-GH 14/12G-G 14/12T-G 18/16 T-G

10/8f-Gh High Head 80m Large Size Gravel Sand Pump

Performance parameters

Pump Model	Allowable Max. Power (kw)	Clear Water Performance
		Capacity Q		Head H (m)	Speed n(r/min)	Max.Eff. (%)	NPSH (m)	Impeller. Dia. (mm)
		m³/h	l/s	Head H (m)	Speed n(r/min)	Max.Eff. (%)	NPSH (m)	Impeller. Dia. (mm)
6/4D-G	60	36-250	10-70	5-52	600-1400	58	2.5-3.5	378
8/6E-G	120	126-576	35-160	6-45	800-1400	60	3-4.5	378
10/8S-GH	560	216-936	60-260	8-52	500-1000	65	3-7.5	533
10/8S-G	560	180-1440	50-400	24-30	500-950	72	2.5-5	711
12/10G-G	600	360-1440	100-400	10-60	400-850	65	1.5-4.5	667
12/10G-GH	1200	288-2808	80-780	16-80	350-700	73	2.0-10.0	950
14/12G-G	1200	576-3024	160-840	8-70	300-700	68	2.0-8.0	864
16/14G-G	600	720-3600	200-1000	18-44	300-500	70	3.0-9.0	1016
16/14TU-G	1200	324-3600	90-1000	26-70	300-500	72	3.0-6.0	1270
18/16TU-G	1200	720-4320	200-1200	12-48	250-500	72	3.0-6.0	1067

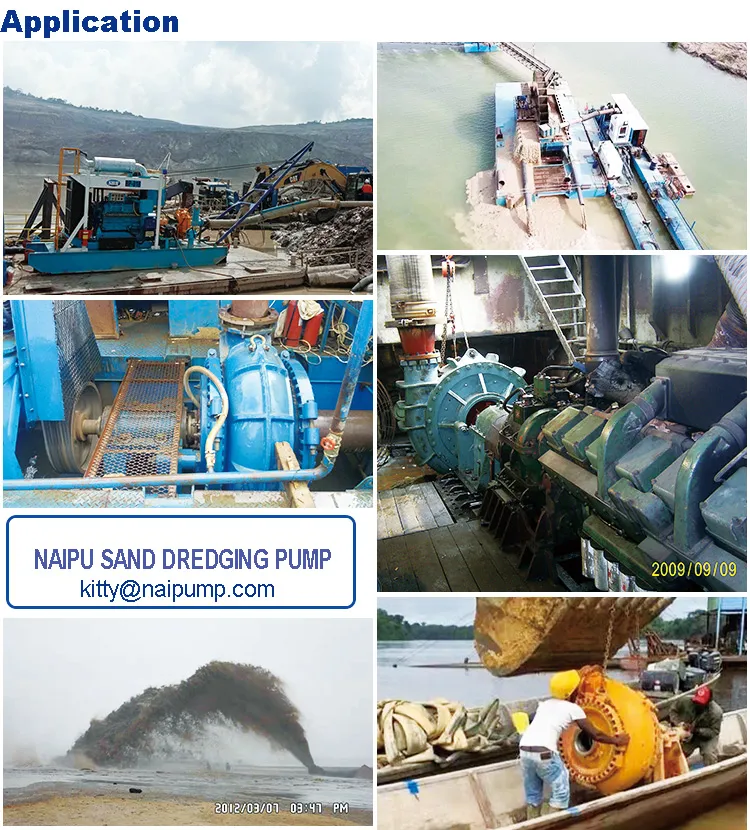

Applications:

The gravel sand pump is used for river course, reservoir desalting, coastal reclamation, stretching, deep-sea mining and tailing acquisition etc. Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and course of rivers, and other fields.

Slag Granulation
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Sugar Beet

10/8f-Gh High Head 80m Large Size Gravel Sand Pump

Company Information:

Shijiazhuang NaiPu Pump Co., Ltd specialized in the manufacture of slurry pumps and spare parts, for more than 20 years.

Our products are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries.

Our Pump and spare parts can Totally interchange with AH(R), M(R), HH, L, SP(R), G, AF(R) Series, but price will more competitive.

We also have ZJQ Submersible slurry pump, WS Dredging pump, WQ sewage Pump, ZJG, ZG, ZJW Feeding pump, Series
In addition, we also can accept OEM order as customers' drawing or sample.
